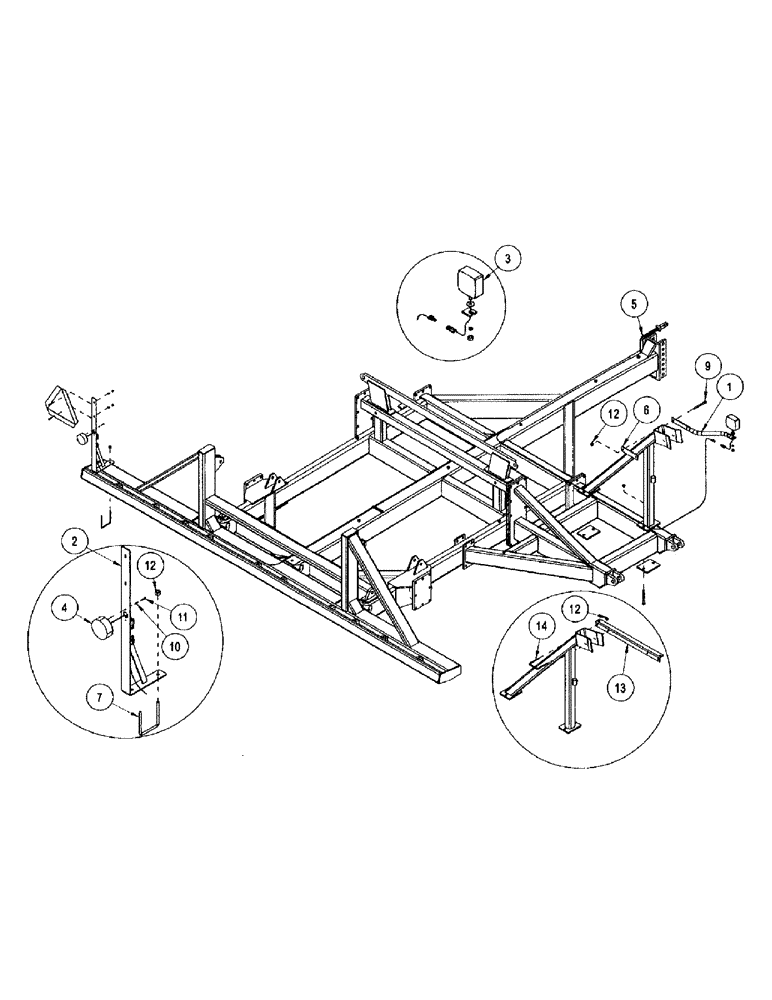

Запчасти Case IH CONCORD (B26) - SAFETY LIGHT

1

1032916

BRACKET

- light (40' only)

2шт.

2

1032915

WARNING SIGN

WLDMT - SMV mount

1шт.

3

1032180

LAMP

ASSY - warning lamp #91913C91

2шт.

4

1032179

LAMP

ASSY - red tail lamp #91986C91

1шт.

5

1032177

HARNESS

- safety lamp #1969327C1 (tillage only)

1шт.

5

290292A2

HARNESS

- tillage (Incl. w/airsystem M200 electrical)

1шт.

6

1032168

BAR

BOLTING PNT (40' only)

2шт.

7

1030623

U-BOLT

BOLT-U .50X6.06X5.00 ID

1шт.

8

1017248

STRAP

TIE - 21.50 waytek #21048 (not shown)

1шт.

9

1013682

BOLT

- hex: .50 x 4.50 NC Gr5 ZP (40' only)

4шт.

10

1013389

THRUST WASHER

- star: .19 ZP

2шт.

11

1013336

SELF-TAP SCREW,M12 x 35mm, Cl 12.9

- S-tap: .19 x .75 Gr5 ZP

2шт.

12

231-1448

NUT,1/2"-13, GB

- nylock: .50 NC Gr6 ZP

6шт.

13

306716A1

BRACKET

LIGHT (50' only)

2шт.

14

1032294

U-BOLT

: .50 x 4.53 x 4.50 ZP (50' only)

2шт.
