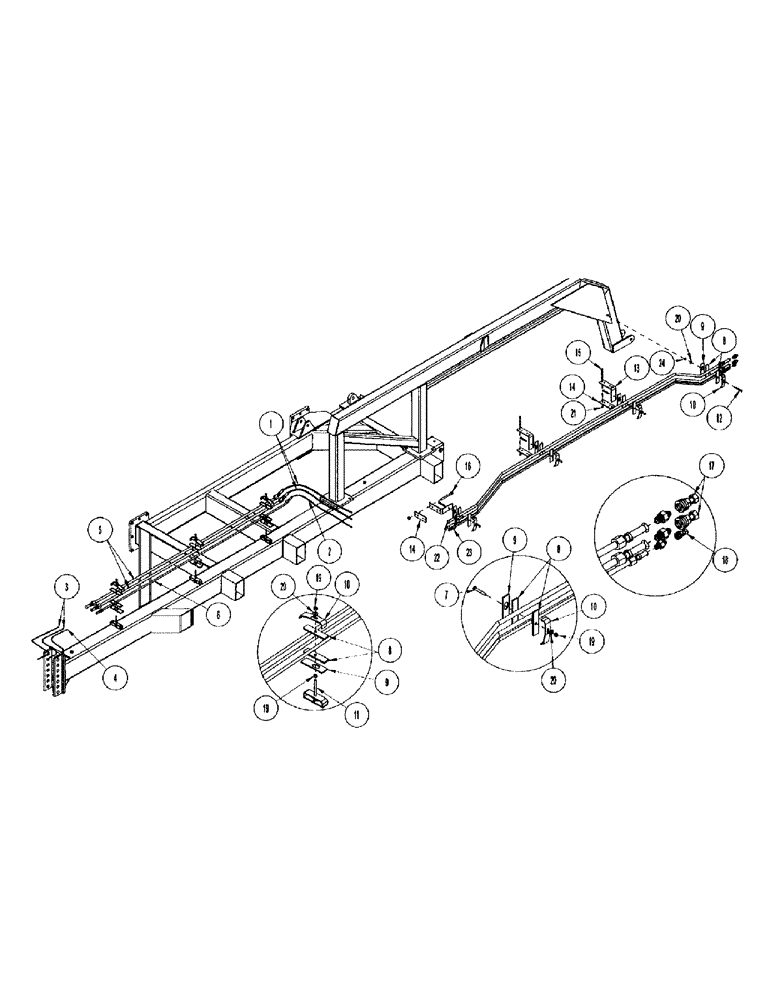

Запчасти Case IH CONCORD (B24) - TANK TO TRACTOR HYDRAULICS

1

1033036

HYDRAULIC HOSE,0.75" ID x 36.00"

- 12JICM Both 0.75" ID x 36.00"

2шт.

2

1033035

HYDRAULIC HOSE,0.38" ID x 36.00", SAE 100R1

HOSE 0.38" ID x 36.00", SAE 100R - 8JICM both

1шт.

3

1018134

HYDRAULIC HOSE

HOSE HYD .75 X 96 FL

2шт.

4

1018133

HYDRAULIC HOSE

HOSE HYD .375 X 96 FL

1шт.

5

1024663

HYD TUBE,19.1 mm Diameter, 2198, 114.3 mm Length

ASSY - tube

2шт.

6

1024661

HYD TUBE,12.7 mm Diameter, 2196, 114.3 mm Length

ASSY - tube

1шт.

7

1026715

SELF-TAP SCREW

- tap: .38 x 2.50 NC Gr2 ZP

3шт.

8

1026714

ISOLATOR

: 5.00

14шт.

9

1026713

CLAMP

-BACKING

7шт.

10

1026712

CLAMP

: 5.00

7шт.

11

1026677

STUD

: .38X3.25 NC GRD ZP

3шт.

12

1011602

BOLT

BOLT - hex: .38 x 1.75 NC Gr5 ZP

1шт.

13

1026124

SUPPORT

BRACKET-L

3шт.

14

1026123

BAR

- bolting

3шт.

15

1013239

BOLT

BOLT - hex: .38 x 3.00 NC Gr5 ZP

4шт.

16

1021757

BOLT

- hex: .38 x 5.00 NC Gr5 ZP

2шт.

17

1015598

FITTING

FTG - adapter: TMK#2404-12-12

2шт.

18

1015218

FITTING

FTG - adapter: TMK#2404-8-8

1шт.

19

232-1446

NUT,3/8"-16, GC

NUT - nylock: .38 NC Gr6 ZP

12шт.

20

95-11041

WASHER,3/8"

- flat: SAE .38 ZP

8шт.

21

425-106

NUT,3/8"-16, Cl 5

6шт.

22

1026113

HYD TUBE,3454 mm Length

ASSY-TUBE .75

2шт.

23

1026112

HYD TUBE,3454 mm Length

ASSY-TUBE: .50

1шт.

24

1011586

LOCK WASHER

- lock: .38

1шт.
