Запчасти Case IH CONCORD (B22) - DEPTH CONTROL HYDRAULICS, 50 FOOT

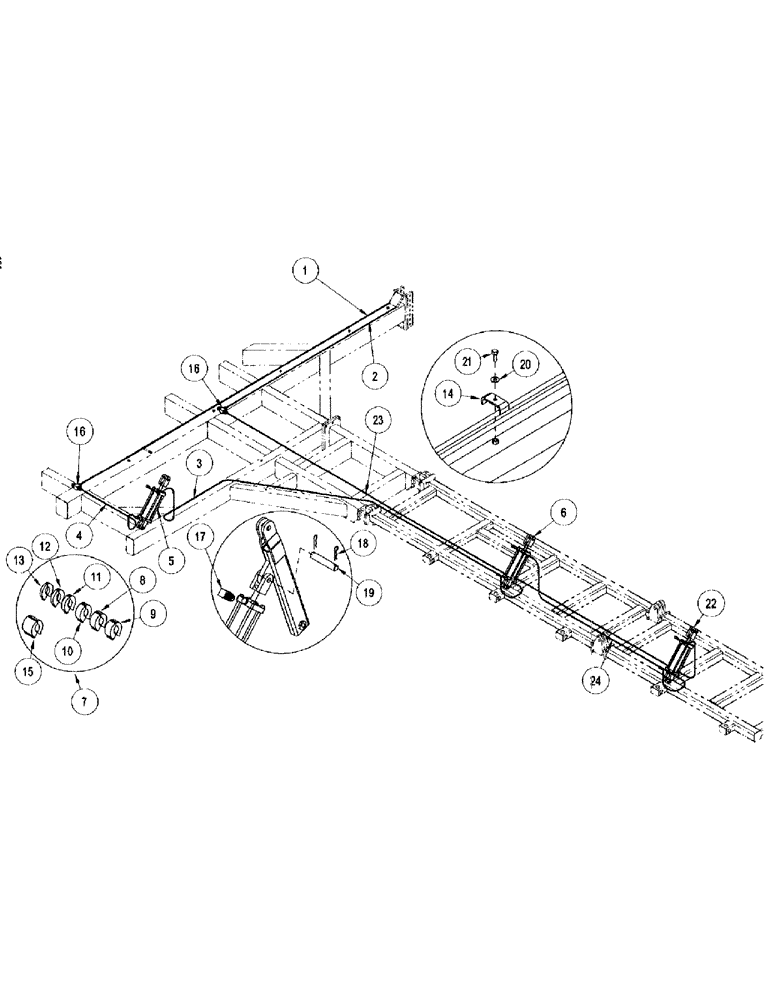

Схема запчастей Case IH CONCORD - (B22) - DEPTH CONTROL HYDRAULICS, 50 FOOT
13
3
9
4
6
20
14
10
16
1
7
15
24
5
17
19
12
23
11
8
22
18
21
16
2

Артикул

Название

Примечание

Количество

1

1015804

HYDRAULIC HOSE

HOSE HYD .5 X 240 FL

1шт.

2

1018372

HOSE ASSY.

HOSE - 50 X 180-8JICFSW/-8NPTM

1шт.

3

1017750

HYDRAULIC HOSE

HOSE HYD .5 X 198 FL

4шт.

4

1015221

HOSE

.50 X 040-8JICFSW BOTH

2шт.

5

1026898

HYDRAULIC CYLINDER

CYL HYD 4.00 X 8.00 IOWA, Years: -31-OCT-02

2шт.

5

86991979

HYDRAULIC CYLINDER,Double Acting, 34.92mm Rod, 203.2mm Stroke

4X8 3000PSI NO PINS, Start Year: 01-NOV-02, Start Serial: CBJ0008108

2шт.

6

1026897

HYDRAULIC CYLINDER

CYL HYD 3.75 X 8.00 IOWA, Years: -31-OCT-02

2шт.

6

86991978

HYDRAULIC CYLINDER,Double Acting, 34.92mm Rod, 203.2mm Stroke

3.75X8 3000PSI NO PINS, Start Year: 01-NOV-02, Start Serial: CBJ0008108

2шт.

7

1025810

KIT

DEPTH STOP SPACERS (Incl. 8-13, 15)

4шт.

8

1029289

WEDGE

STOP - depth: 1.44" griprite

1шт.

9

1025809

WEDGE

STOP - depth: 1.50" griprite

2шт.

10

1025808

STOP

- depth: 1.25" griprite

1шт.

11

1025807

WEDGE

STOP - depth: 0.75" griprite

2шт.

12

1025806

WEDGE

STOP - depth: 0.62" griprite

1шт.

13

1025805

WEDGE

STOP - depth: 0.50" griprite

2шт.

14

1024284

CLAMP

- hose small

15шт.

15

1020439

STOP

- transport 4"

2шт.

16

1015219

FITTING

FTG - tee AQ#2033-8-8S

2шт.

17

1014852

ELBOW,90 Degree, 3/4"-16 O-Ring x 3/4"-16, 37 Degree

FTG - elbow TMK#6801-8

12шт.

18

1021389

PIN, ROLL

KEEPER - 41322-705

12шт.

19

1016797

PIN

- 1.25

6шт.

20

95-11041

WASHER,3/8"

- flat: SAE .38 ZP

15шт.

21

1011600

BOLT,Hex, 3/8" - 16 x 1", Gr 5

BOLT - hex: .38 x 1.00 NC Gr5 ZP

15шт.

22

1026896

HYDRAULIC CYLINDER

CYL HYD 3.50 X 8.00 IOWA, Years: -31-OCT-02

2шт.

22

86991977

HYDRAULIC CYLINDER,Double Acting, 31.75mm Rod, 203.2mm Stroke

3.5X8 3000PSI NO PINS, Start Year: 01-NOV-02, Start Serial: CBJ0008108

2шт.

23

1021282

HYDRAULIC HOSE

HOSE HYD .5 X 280 FL

2шт.

24

1015803

HOSE ASSY.

HOSE .50 X 135-8JICFSW BOTH

2шт.

Выбрано товаров: 27
