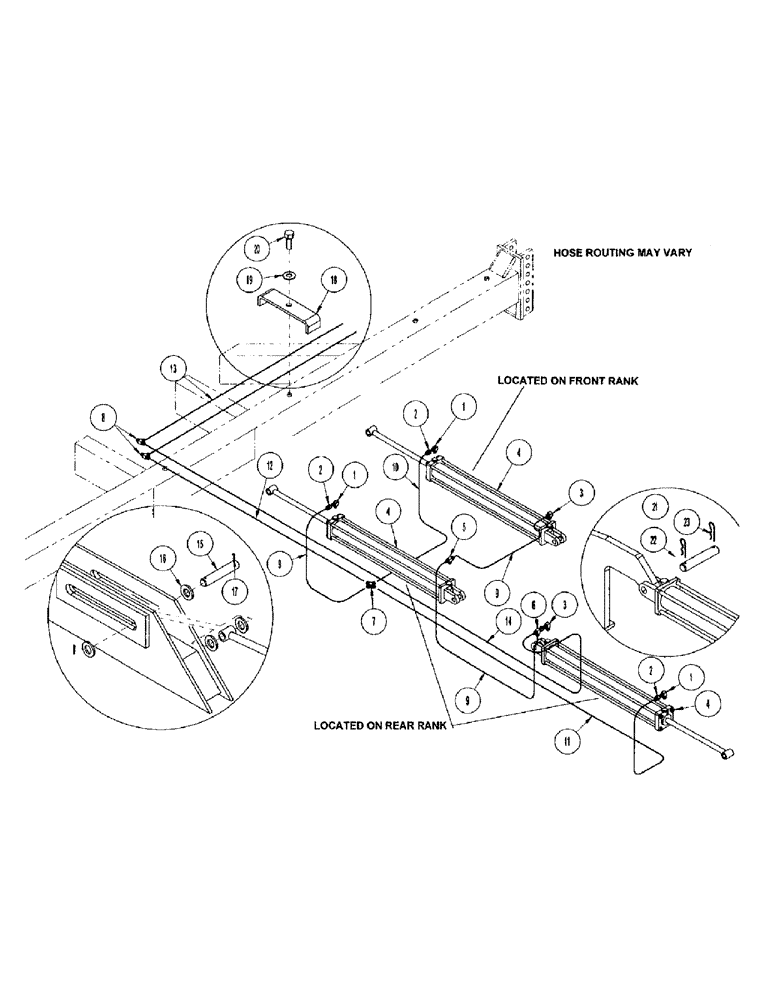

Запчасти Case IH CONCORD (B18) - WING LIFT HYDRAULICS, 50 FOOT

1

1014852

ELBOW,90 Degree, 3/4"-16 O-Ring x 3/4"-16, 37 Degree

FTG - elbow TMK#6801-8

6шт.

2

1019844

FITTING

FTG - restric AQ#FF1981-090-0808

6шт.

3

1014852

ELBOW,90 Degree, 3/4"-16 O-Ring x 3/4"-16, 37 Degree

FTG - elbow TMK#6801-8

4шт.

4

350721A1

HYDRAULIC CYLINDER

KIT HYD 5.00 X 30.0 IOWA, (Includes 1028469, 1019844, 218-5106, 350401A1, 1015478 and 6-70060), Years: -31-OCT-02, Serial Range: -CBJ0008107

6шт.

5

1015373

FITTING

FTG - tee TMK#6803-8

2шт.

6

1015710

FITTING

FTG - tee TMK#6602-8

2шт.

7

1019755

FITTING

FTG - cross TMK#2650-8

2шт.

8

1015219

FITTING

FTG - tee AQ#2033-8-8S

2шт.

9

1015221

HOSE

.50 X 040-8JICFSW BOTH

6шт.

10

1024421

HYDRAULIC HOSE

HOSE HYD .5 X 60 FL

2шт.

11

1018744

HOSE ASSY.

HOSE .50 X 100-8JICFSW BOTH

2шт.

12

1015803

HOSE ASSY.

HOSE .50 X 135-8JICFSW BOTH

2шт.

13

1018372

HOSE ASSY.

HOSE .50 X 180-8JICFSW/8NPTM

2шт.

14

1017750

HYDRAULIC HOSE

HOSE HYD .5 X 198 FL

2шт.

15

1016929

PIN

6шт.

16

1016950

WASHER

- flat: SAE 1.25 ZP

24шт.

17

1016727

SPLIT PIN/SAFETY PIN

PIN - cotter: .25 x 2.50 ZP

12шт.

18

1024285

CLAMP

-HOSE LARGE PNT

5шт.

19

95-11041

WASHER,3/8"

- flat: SAE .38 ZP

5шт.

20

1011600

BOLT,Hex, 3/8" - 16 x 1", Gr 5

BOLT - hex: .38 x 1.00 NC Gr5 ZP

5шт.

21

1021392

PIN

& KEEPER SET: 1.25 X 3

6шт.

22

1021389

PIN, ROLL

PIN - 1.25

1шт.

23

1016797

PIN

KEEPER - 41322-705

1шт.
