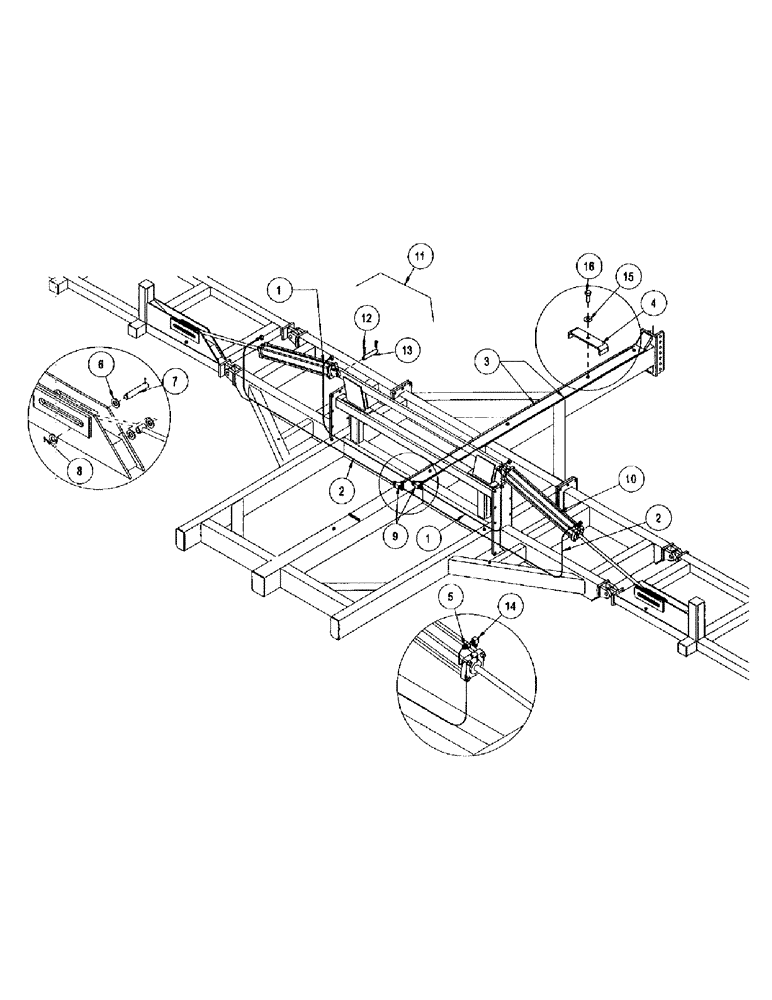

Запчасти Case IH CONCORD (B16) - WING LIFT HYDRAULICS, 40 FOOT

1

1024421

HYDRAULIC HOSE

HOSE HYD .5 X 60 FL

2шт.

2

1018744

HOSE ASSY.

HOSE .50 X 100-8JICFSW BOTH

2шт.

3

1018372

HOSE ASSY.

HOSE .50 X 180-8JICFSW/-8NPTM

2шт.

4

1024285

CLAMP

-HOSE LARGE PNT

3шт.

5

1019844

FITTING

FTG - restric AQ#FF1981-090-0808

2шт.

6

1016950

WASHER

- flat: SAE 1.25 ZP

8шт.

7

1016929

PIN

2шт.

8

1016727

SPLIT PIN/SAFETY PIN

PIN - cotter: .25 x 2.50 ZP

4шт.

9

1015219

FITTING

FTG - tee AQ#2033-8-8S

2шт.

10

350721A1

HYDRAULIC CYLINDER

KIT HYD 5.00 X 30.0 IOWA, (Includes 1028469, 1019844, 218-5106, 350401A1, 1015478 and 6-70060), Years: -31-OCT-02, Serial Range: -CBJ0008107

2шт.

11

1021392

PIN

& KEEPER SET: 1.25 X 3

1шт.

12

1021389

PIN, ROLL

KEEPER - 41322-705

2шт.

13

1016797

PIN

- 1.25

2шт.

14

1014852

ELBOW,90 Degree, 3/4"-16 O-Ring x 3/4"-16, 37 Degree

FTG - elbow TMK#6801-8

4шт.

15

95-11041

WASHER,3/8"

- flat: SAE .38 ZP

3шт.

16

1011600

BOLT,Hex, 3/8" - 16 x 1", Gr 5

BOLT - hex: .38 x 1.00 NC Gr5 ZP

3шт.
