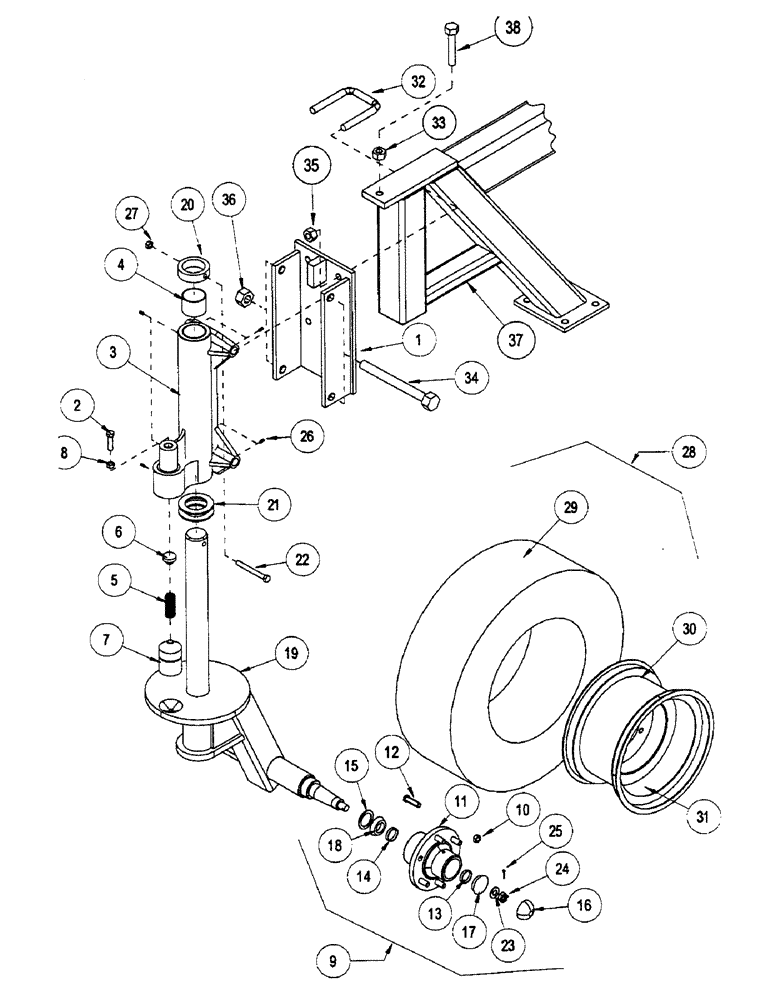

Запчасти Case IH CONCORD (B12) - WING FRAME CASTER ASSEMBLY, FRONT

1

1033180

CASTER ASSY

WLDMT - caster mount

1шт.

2

1033038

BOLT

1 X 3 UNC GR5 YZD ALL-T

1шт.

3

1033027

HOUSING

ASSY - king pin housing: std

1шт.

4

1014163

BRONZE BUSHING,63.96mm ID x 69.95mm OD x 50.8mm L

BUSHING BRONZE 2.75 ODX2.5 ID

2шт.

5

1033024

SPRING

-C DIE .38WR 1.5 OD 2LG

1шт.

6

1033023

BAR

-DETENT GUIDE

1шт.

7

1033022

BAR

-FRICTION PLUNGER

1шт.

8

425-1416

JAM NUT,Jam, 1"-8, G5

- jam: 2.00 NC Gr2 ZP

1шт.

9

1023733

BEARING HOUSING

HUB H630-2 COMPLETE (Incl. 10-18, 23-25)

2шт.

10

1016177

WHEEL NUT

- lug: CT&D #WB40

6шт.

11

1016175

HUB

H630-2 C/W CUPS AND STUDS

1шт.

12

1016176

STEP BOLT

BOLT STUD .563 UNF GR5 WB41

6шт.

13

1012360

CUP

- bower #67010 (CT & D #LM67010)

1шт.

14

1012359

CUP

- CT&D # & NTN #LM501310

1шт.

15

1013560

SEAL

HUB OIL SEAL FED MOG #473473

1шт.

16

1012374

HUB

DUST CAP DC13 BLK

1шт.

17

1012356

ROLLER BEARING,1.25" ID x 0.625"

BEARING CONE #LM67048

1шт.

18

1012354

ROLLER BEARING,1.625" ID x 2.09375" OD x 0.7656"

CONE - CT&D #LM501349

1шт.

19

87501800

CASTER

/W DUAL (Without Spindle)

1шт.

19a

1015277

SPINDLE

(For Item 19 Knuckle)

1шт.

20

1014161

RETAINER

-KING PIN

1шт.

21

1014154

THRUST WASHER

2.5 ID 4OD .188 YZD

2шт.

22

1013682

BOLT

- hex: .50 x 4.50 NC Gr5 ZP

1шт.

23

1012377

WASHER

P.WASHER .81 ID 1.75 .188 PLN

1шт.

24

1012376

SLOTTED NUT,3/4"-16, G5

NUT - hex: slot .75 NF Gr5 ZP

1шт.

25

1012375

SPLIT PIN/SAFETY PIN

PIN - cotter: .19 x 1.50 NP

1шт.

26

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

ZERK - grease: .25 UNF str

7шт.

27

231-1448

NUT,1/2"-13, GB

- nylock: .50 NC Gr6 ZP

1шт.

28

1030719

WHEEL ASSY

TIRE/A MNTD 11L X14 6H 8PR I-1 (Incl. 29-31)

1шт.

29

1030718

TYRE/TIRE

TIRE 11L-14 8PR I-1 RIB

1шт.

30

1014152

RIM

14 X8KB 6-HOLE 1.13 INSET

1шт.

31

1012383

VALVE STEM

VALVE - stem

1шт.

32

1018629

U-BOLT

BOLT US .75 4.031W 5.625D

2шт.

33

425-1012

NUT,3/4"-10, G5

- hex: .75 NC Gr6 ZP

1шт.

34

1015897

BOLT

BOLT - hex: 1.00 x 10.00 NC Gr5 ZP

2шт.

35

232-14412

NUT,3/4"-10, GB

NUT - nylock: .75 NC Gr6 ZP

4шт.

36

232-14416

NUT,1"-8, GC

NUT - nylock: 1.00 NC Gr6 ZP

2шт.

37

290772A1

WHEEL

CARRIER/W

1шт.

38

290830A1

ROD, ADJUSTMENT

ROD ADJUSTMENT/W

1шт.
