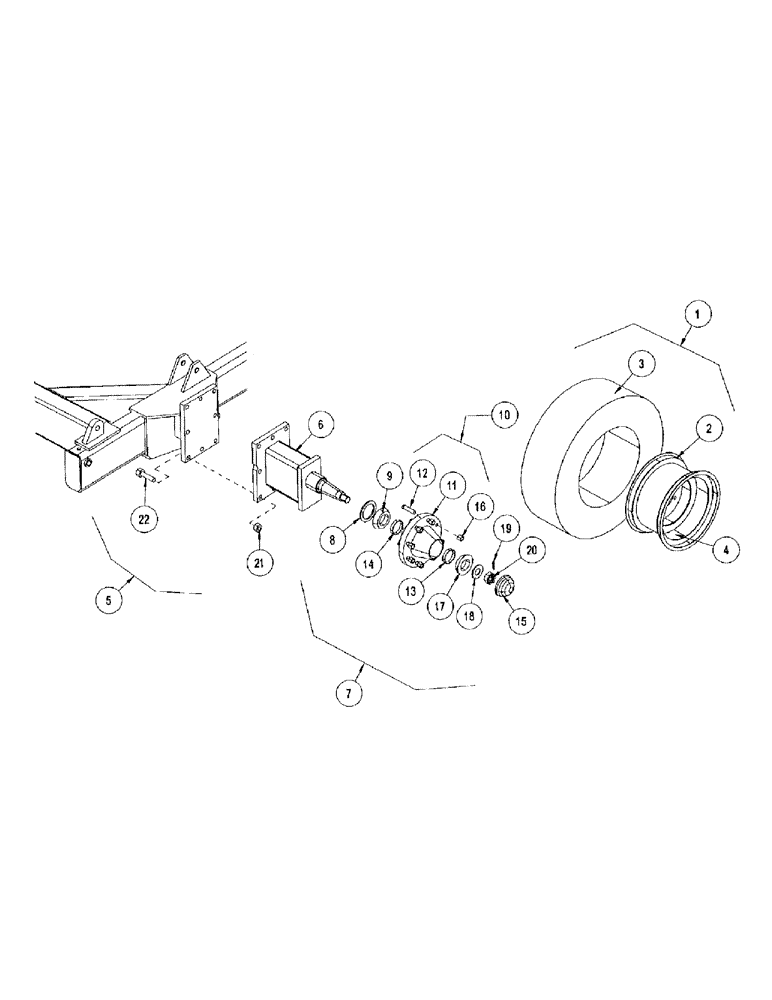

Запчасти Case IH CONCORD (B06) - MAIN FRAME WHEEL ASSEMBLY , 40 FOOT AND 50 FOOT MODELS

1

1033896

TYRE/TIRE

TIRE - mntd: 21.5LX16.1 14 PLY I1

1шт.

2

1033895

WHEEL

- 16.1W18C 8 hole:silver

1шт.

3

1033894

TYRE/TIRE

TIRE 21.5L-16.1 14 ply I-1

1шт.

4

1012383

VALVE STEM

VALVE - stem

1шт.

5

1033260

SPINDLE

ASSY - spindle: LH 120 2300/3400 (Incl. 6-20)

1шт.

6

1020775

SPINDLE

WLDMT - spindle: LH 120.00 (Incl. 8-17)

1шт.

6

290755A1

W/SPINDLE (Serial #CKB0015002-CBK0015028)

1шт.

7

1017759

HUB ASSY.

ASSY - hub: CT&D #HA 817

1шт.

8

1017764

SEAL

- #TCM-30404TA (CT&D #SE42)

1шт.

9

1017763

ROLLER BEARING,2.25" ID x 0.864"

CONE - CT&D #387-AS (BCA# 387-AS

1шт.

10

1017760

HUB ASSY.

ASSY - hub w/cups & studs (incl. 11-14)

1шт.

11

1033323

HUB

- casting

1шт.

12

1017762

STUD

- lug: CT&D #WB 46

8шт.

13

1017761

BEARING CUP,3.5" ID x 3.8125" OD

CUP - CT&D #382-A (BCA #382-A)

1шт.

14

1012359

CUP

- CT&D # & NTN #LM501310

1шт.

15

1013474

CAP

- hub: CT&D #DC26

1шт.

16

1013470

NUT

- bev: CT&D # WB 18

8шт.

17

1012354

ROLLER BEARING,1.625" ID x 2.09375" OD x 0.7656"

CONE - CT&D #LM501349

1шт.

18

1013475

WASHER

- flat: F&H #106247

1шт.

19

1013473

ANGLE BAR

PIN - cotter: .19 x 2.00 NP

1шт.

20

425-1316

NUT,1"-14, G5

NUT - hex: slot 1-14 NS Gr2 ZP

1шт.

21

232-14412

NUT,3/4"-10, GB

NUT - nylock: .75 NC Gr6 ZP

8шт.

22

1012059

BOLT

BOLT - hex: .75 x 3.00 NC Gr5 ZP

8шт.
