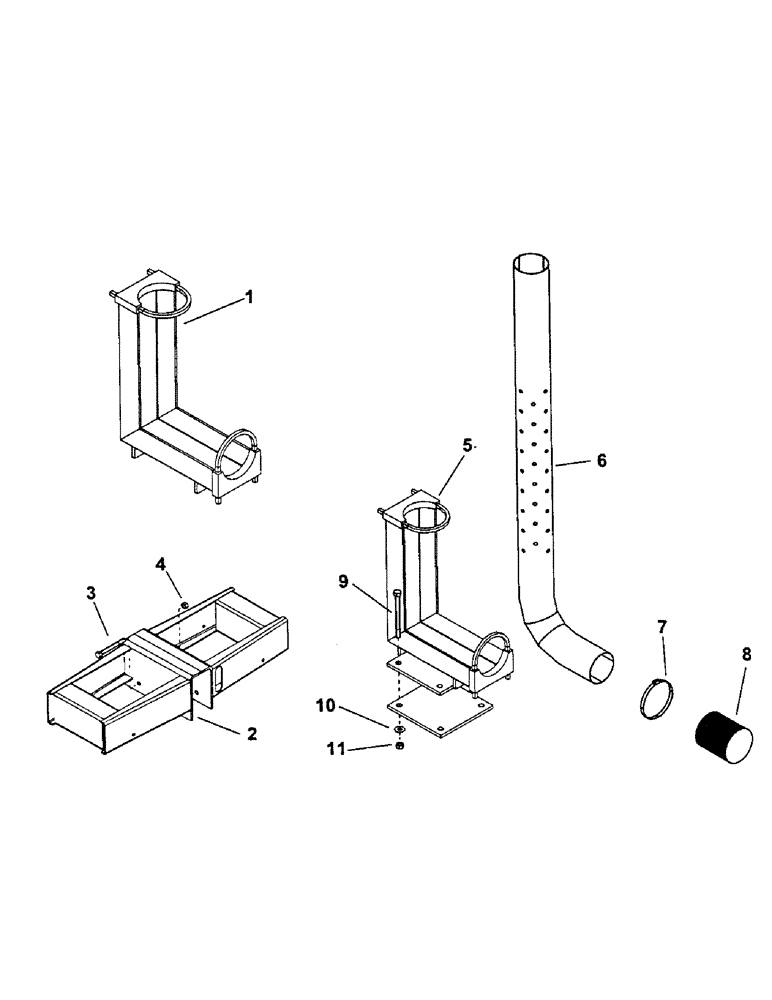

Запчасти Case IH CONCORD (C08) - PRIMARY MANIFOLD, TUBES & STANDS, DISCONTINUED

1

1014607

SUPPORT

MANIFOLD SUPPORT ASSEMBLY

1шт.

2

1026475

MOUNTING PARTS

MOUNTING - primary manifold

1шт.

3

1016292

BOLT

BOLT, hex, 5/8" x 5 1/2"

3шт.

4

231-14410

NUT,5/8"-11, GB

NUT, LOCK, 5/8"-11, GB

3шт.

5

1022953

ANCHOR

PRIMARY MANIFOLD MOUNT

1шт.

6

1022957

TUBE

ASSY - primary tube

1шт.

7

1012455

CLAMP

- hose

2шт.

8

1023334

HOSE,5.00" ID

Primary Rear, PVC 5.00" ID

1шт.

9

413-896

BOLT,Hex, 1/2" - 13 x 6", Gr 5

.5 X 6 UNC GR5 YZD

4шт.

10

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

11

425-108

NUT,1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.
