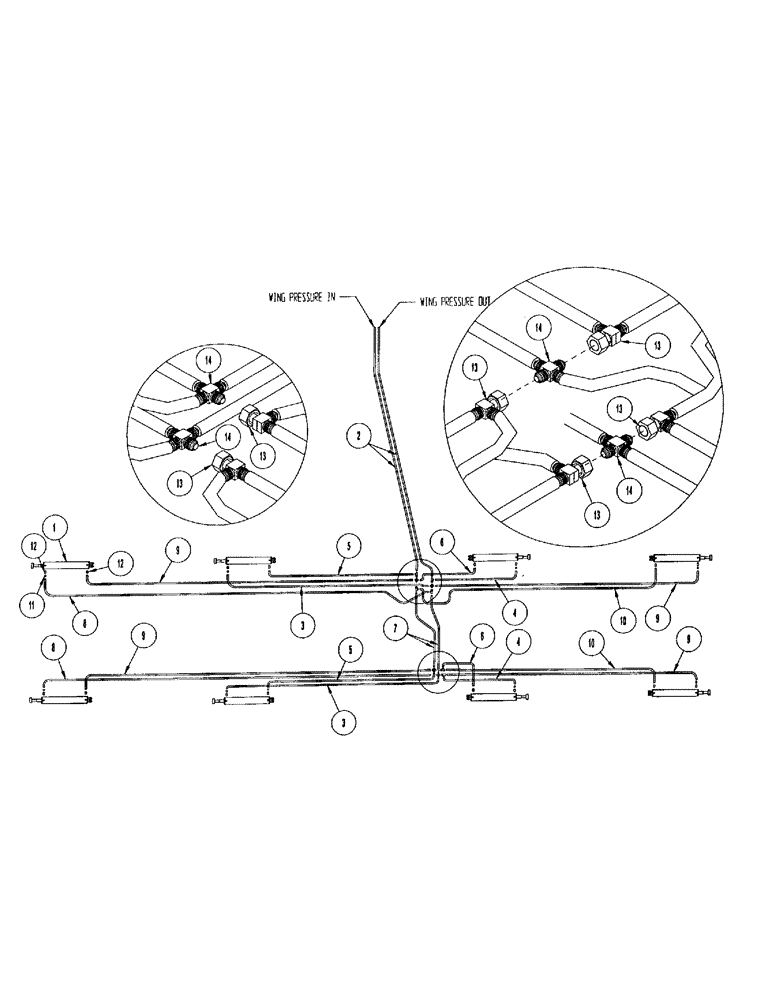

Запчасти Case IH CONCORD (B88) - HYDRAULICS, WING LIFT, 5 SECTION, 8 CYLINDER

1

1015203

CYLINDER ASSY.

CYL - hyd: 5.00 x 30 x 2.00 rod

8шт.

2

1017135

HYDRAULIC HOSE

HOSE HYD .5 X 312 FL - 56/6012 3 & 4R

2шт.

3

1015222

HYDRAULIC HOSE

HOSE HYD .5 X 90 FL - 56/6012 3 & 4R

2шт.

4

1015802

HYDRAULIC HOSE

HOSE HYD .5 X 50 FL - 56/6012 3 & 4R

2шт.

5

1024421

HYDRAULIC HOSE

HOSE HYD .5 X 60 FL - 56/6012 3 & 4R

2шт.

6

1015802

HYDRAULIC HOSE

HOSE HYD .5 X 50 FL - 56/6012 3 & 4R

2шт.

7

1024421

HYDRAULIC HOSE

HOSE HYD .5 X 60 FL - 56/6012 3R

2шт.

7

90879C1

HYDRAULIC HOSE,12.70 mm ID x 2030.00 mm, SAE 100R1

56/6012 4R 12.70 mm ID x 2030.00 mm, SAE 100R1

2шт.

8

1017101

HYDRAULIC HOSE

HOSE HYD .5 X 228 FL - 5612 3 & 4R

2шт.

8

1015220

HYDRAULIC HOSE

HOSE HYD .5 X 240 FL - 6012 3 & 4R

2шт.

9

1020975

HYDRAULIC HOSE

HOSE HYD .5 X 188 FL - 5612 3 & 4R

4шт.

9

1021281

HYDRAULIC HOSE

HOSE HYD .5 X 215 FL - 6012 3 & 4R

4шт.

10

1023091

HYDRAULIC HOSE

HOSE HYD .5 X 162 FL - 5612 3 & 4R

2шт.

10

1017746

HYDRAULIC HOSE

HOSE HYD .5 X 178 FL - 6012 3 & 4R

2шт.

11

1019844

FITTING

STL .5MJ .5FJ RESTRICTOR

8шт.

12

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

STL 90DEG .5MB .5MJ

16шт.

13

218-845

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Run

1/2-37 DEG FL-SWIVEL RUN

6шт.

14

218-654

4 WAY CONNECTION,3/4"-16, 37 Degree

FIT STL .5MJ

4шт.
