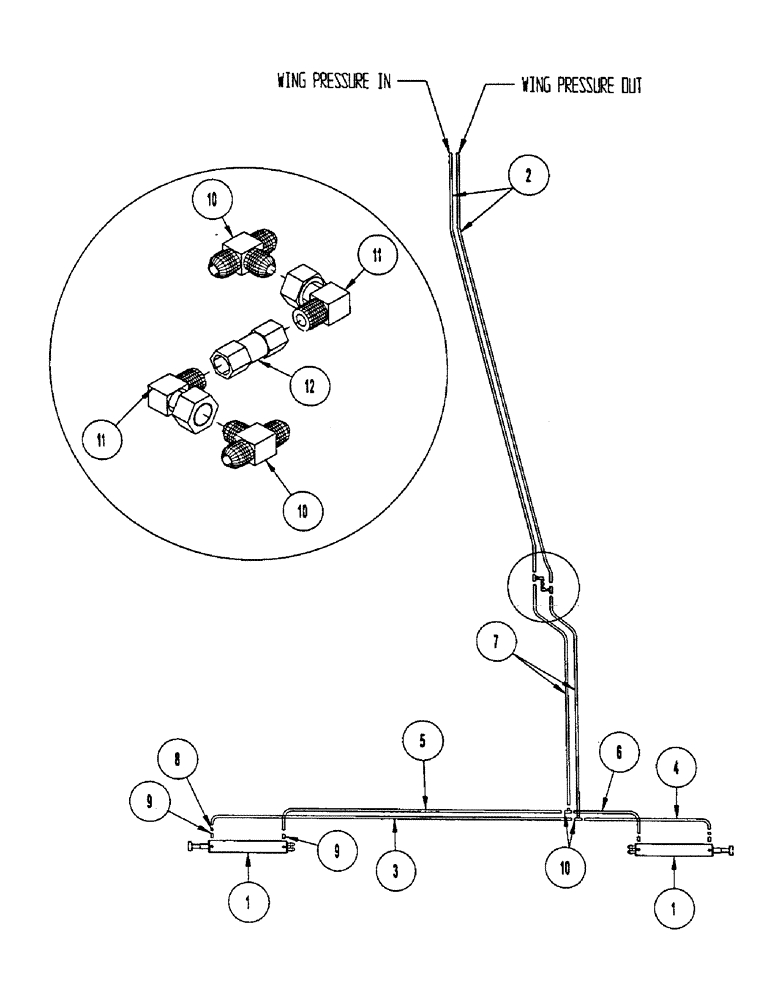

Запчасти Case IH CONCORD (B82) - HYDRAULICS, WING LIFT, SINGLE

1

350720A1

HYDRAULIC CYLINDER

KIT HYD 4.00 X 30.0 IOWA (Includes 1016796, 1019844, 218-5106, 350401A1, 1015478 and 6-70060), Years: -31-OCT-02, Serial Range: -CBJ0008107

2шт.

1

1015203

CYLINDER ASSY.

CYL - hyd: 5.00 x 30 x 2.00 rod - 3212 3 & 4R, 36/4012 3R

2шт.

2

1015804

HYDRAULIC HOSE

HOSE HYD .5 X 240 FL - 24/28/32/36/4012 3 & 4R

2шт.

3

1015222

HYDRAULIC HOSE

HOSE HYD .5 X 90 FL- 24/28/32/36/4012 3 & 4R

1шт.

4

1015802

HYDRAULIC HOSE

HOSE HYD .5 X 50 FL - 24/28/32/36/4012 3 & 4R

1шт.

5

1024421

HYDRAULIC HOSE

HOSE HYD .5 X 60 FL - 24/28/32/36/4012 3 & 4R

1шт.

6

1015802

HYDRAULIC HOSE

HOSE HYD .5 X 50 FL - 24/28/32/36/4012 3 & 4R

1шт.

7

1015802

HYDRAULIC HOSE

HOSE HYD .5 X 50 FL - 24/28/32/36/4012 3R

2шт.

7

90879C1

HYDRAULIC HOSE,12.70 mm ID x 2030.00 mm, SAE 100R1

24/28/3212 4R 12.70 mm ID x 2030.00 mm, SAE 100R1

2шт.

8

1019844

FITTING

STL .5MJ .5FJ RESTRICTOR

2шт.

9

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

STL 90DEG .5MB .5MJ

4шт.

10

218-594

TEE,3/4"-16, 37 Degree

FIT STL .5MJ

4шт.

11

218-997

ELBOW,90 Degree, 3/4"-16 Sw x 3/8" NPT

FIT STL .375MP .5FBX

2шт.

12

1014997

FITTING

FIT STL .375MP.375MP CHK VLVE

1шт.
