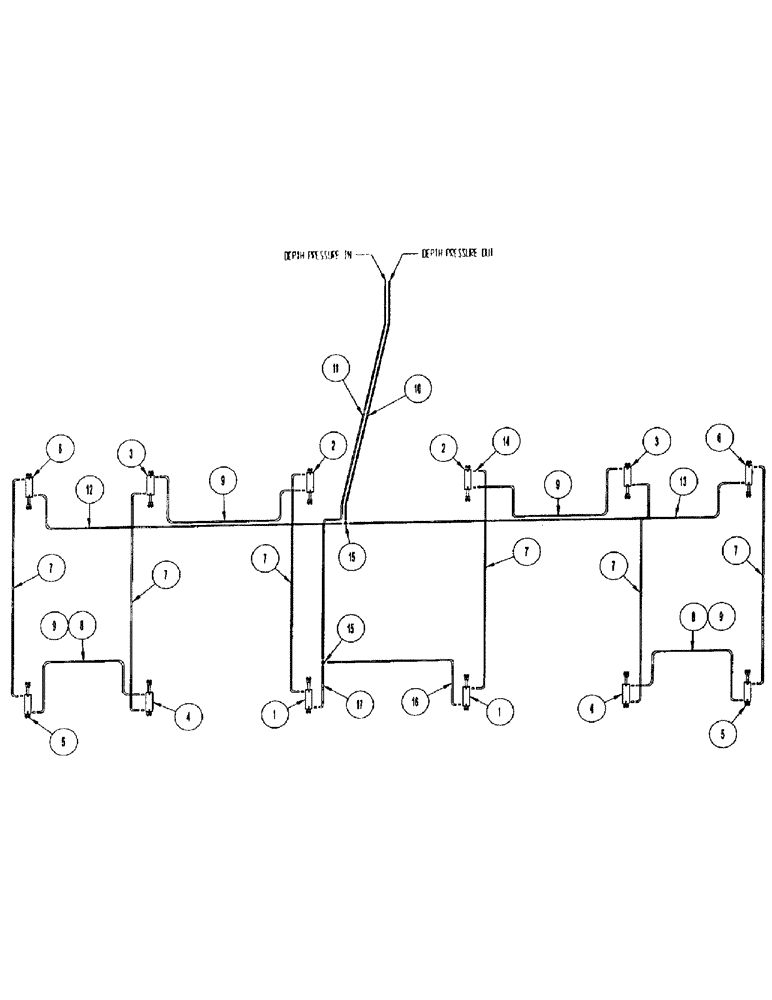

Запчасти Case IH CONCORD (B80) - HYDRAULIC, DEPTH, 5 SECTION

1

1027482

HYDRAULIC CYLINDER

CYL HYD 5.00 X 8.00 IOWA

2шт.

2

1027481

HYDRAULIC CYLINDER

CYL HYD 4.75 X 8.00 IOWA

2шт.

3

1027480

HYDRAULIC CYLINDER

CYL HYD 4.50 X 8.00 IOWA

2шт.

4

1027479

HYDRAULIC CYLINDER

CYL HYD 4.25 X 8.00 IOWA

2шт.

5

1026898

HYDRAULIC CYLINDER

CYL HYD 4.00 X 8.00 IOWA

2шт.

6

1026897

HYDRAULIC CYLINDER

CYL HYD 3.75 X 8.00 IOWA

2шт.

7

1017746

HYDRAULIC HOSE

HOSE HYD .5 X 178 FL - 48/56/6012, 40125P 4R

6шт.

7

1021280

HYDRAULIC HOSE

HOSE HYD .5 X 154 FL - 48/56/6012, 40125P 3R

6шт.

8

1015220

HYDRAULIC HOSE

HOSE HYD .5 X 240 FL - 6012 3 & 4R

2шт.

9

1017100

HYDRAULIC HOSE

HOSE HYD .5 X 204 FL - 4812 3 & 4R

4шт.

9

1017101

HYDRAULIC HOSE

HOSE HYD .5 X 228 FL - 5612 3 & 4R

4шт.

9

1017101

HYDRAULIC HOSE

HOSE HYD .5 X 228 FL - 6012 3 & 4R

2шт.

9

1020975

HYDRAULIC HOSE

HOSE HYD .5 X 188 FL - 40125P 3 & 4R

4шт.

10

1017135

HYDRAULIC HOSE

HOSE HYD .5 X 312 FL - 48/56/6012 3 & 4R

1шт.

10

1015804

HYDRAULIC HOSE

HOSE HYD .5 X 240 FL - 40125P 3 & 4R

1шт.

11

1026795

HYDRAULIC HOSE

HOSE HYD .5 X 402 FL - 48/6012 4R

1шт.

11

1017134

HYDRAULIC HOSE

HOSE HYD .5 X 377 FL - 48/56/6012 3R, 5612 4R

1шт.

11

1017135

HYDRAULIC HOSE

HOSE HYD .5 X 312 FL - 40125P 3 & 4R

1шт.

12

1021365

HYDRAULIC HOSE

HOSE HYD .5 X 300 FL - 4812 3 & 4R

1шт.

12

1024977

HYDRAULIC HOSE

HOSE HYD .5 X 336 FL - 5612 3 & 4R

1шт.

12

1024287

HYDRAULIC HOSE

HOSE HYD .5 X 350 FL - 6012 4 & 4R

1шт.

12

1337374C1

HYDRAULIC HOSE

HYD .5 X 270 FL

1шт.

13

1020974

HYDRAULIC HOSE

HOSE HYD .5 X 375 FL - 4812 3 & 4R

1шт.

13

1021611

HOSE ASSY.

HOSE .50 x 400-8 JICFSW both - 5612 3 & 4R

1шт.

13

1024286

HYDRAULIC HOSE

HOSE HYD .5 X 450 FL - 6012 3 & 4R

1шт.

13

1024977

HYDRAULIC HOSE

HOSE HYD .5 X 336 FL - 40125P 3 & 4R

1шт.

14

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

STL 90DEG .5MB .5MJ

24шт.

15

218-594

TEE,3/4"-16, 37 Degree

FIT STL .5MJ

2шт.

16

1021280

HYDRAULIC HOSE

HOSE HYD .5 X 154 FL - 48/56/6012 3 & 4R

1шт.

16

1015396

HYDRAULIC HOSE,12.7mm ID x 3810mm L, SAE 100R17

HOSE HYD .5 X 150 FL - 40125P 3 & 4R

1шт.

17

90879C1

HYDRAULIC HOSE,12.70 mm ID x 2030.00 mm, SAE 100R1

40/48/56/6012 3 & 4R 12.70 mm ID x 2030.00 mm, SAE 100R1

1шт.

1266753C1

PIN,25.4mm OD x 96.83mm L

clevis, for cylinders, Replaces: 1923593C1

1шт.
