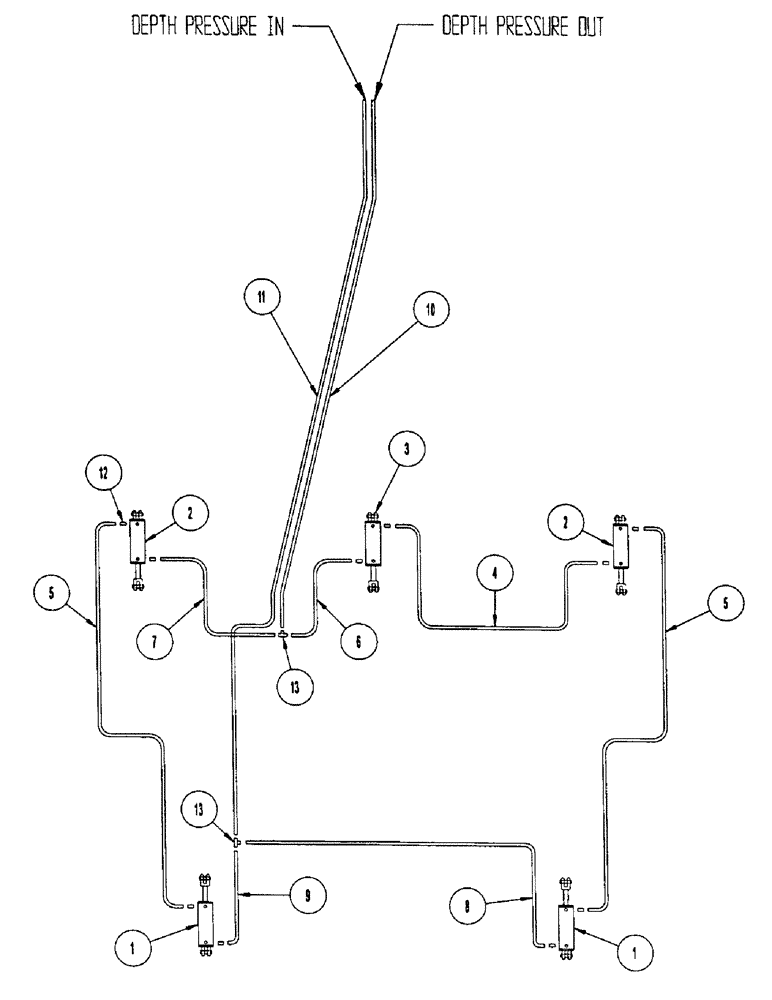

Запчасти Case IH CONCORD (B76) - HYDRAULICS, DEPTH, 2012, DISCONTINUED

1

1026897

HYDRAULIC CYLINDER

CYL HYD 3.75 X 8.00 IOWA

2шт.

2

1026896

HYDRAULIC CYLINDER

CYL HYD 3.50 X 8.00 IOWA

2шт.

3

1026895

HYDRAULIC CYLINDER

CYL HYD 3.25 X 8.00 IOWA

1шт.

4

1017750

HYDRAULIC HOSE

HOSE HYD .5 X 198 FL - 3 rank

1шт.

5

1015396

HYDRAULIC HOSE,12.7mm ID x 3810mm L, SAE 100R17

HOSE HYD .5 X 150 FL - 3 rank

2шт.

5

1017746

HYDRAULIC HOSE

HOSE HYD .5 X 178 FL - 4 rank

2шт.

6

1018744

HOSE ASSY.

HOSE .50 x 100-8 JICFSW both - 3 rank

2шт.

7

1018744

HOSE ASSY.

HOSE .50 x 100-8 JICFSW both

2шт.

8

1017746

HYDRAULIC HOSE

HOSE HYD .5 X 178 FL

1шт.

9

90879C1

HYDRAULIC HOSE,12.70 mm ID x 2030.00 mm, SAE 100R1

1шт.

10

1015401

HOSE ASSY.

HOSE .50 x 198-8 JICFSW/-8NPTM

1шт.

11

1021370

HYDRAULIC HOSE

HOSE HYD .5 X 285 FL - 3 rank

1шт.

11

1017135

HYDRAULIC HOSE

HOSE HYD .5 X 312 FL - 4 rank

1шт.

12

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

STL 90DEG .5MB .5MJ

10шт.

13

218-594

TEE,3/4"-16, 37 Degree

FIT STL .5MJ

2шт.
