Запчасти Case IH CONCORD (B71) - DEPTH STOPS

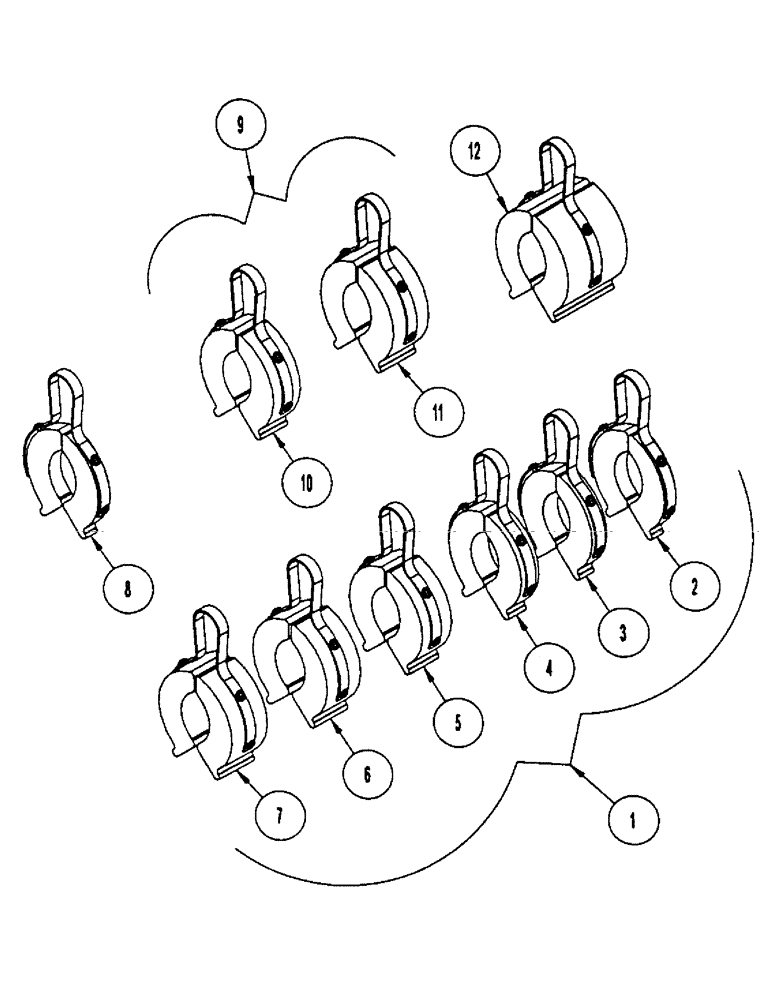

Схема запчастей Case IH CONCORD - (B71) - DEPTH STOPS
2
3
6
10
12
11
9
8
5
4
1
7

Артикул

Название

Примечание

Количество

1

1025810

KIT

DEPTH STOP SPACERS

1шт.

2

1025805

WEDGE

STOP - depth: 0.50" griprite red, Years: -31-DEC-99

1шт.

2

350704A1

STOP

DEPTH .5'' RED PNTD, Start Year: 01-JAN-00

1шт.

3

1025806

WEDGE

STOP - depth: 0.62" griprite orange, Years: -31-DEC-99

1шт.

3

350703A1

STOP

DEPTH .625'' ORANGE PNTD, Start Year: 01-JAN-00

1шт.

4

1025807

WEDGE

STOP - depth: 0.75" griprite yellow, Years: -31-DEC-99

1шт.

4

350706A1

STOP

DEPTH .75'' YELLOW PNTD, Start Year: 01-JAN-00

1шт.

5

1025808

STOP

- depth: 1.25" griprite green, Years: -31-DEC-99

1шт.

5

350702A1

STOP

DEPTH 1.25'' GREEN PTND, Start Year: 01-JAN-00

1шт.

6

1029289

WEDGE

STOP - depth: 1.44" griprite blue, Years: -31-DEC-99

1шт.

6

350701A1

STOP

DEPTH 1.44'' BLUE PNTD, Start Year: 01-JAN-00

1шт.

7

1025809

WEDGE

STOP - depth: 1.50" griprite silver, Years: -31-DEC-99

1шт.

7

350705A1

STOP

DEPTH 1.5'' PLN, Start Year: 01-JAN-00

1шт.

8

1027691

KIT

DEPTH STOP4010-4R 5PLPERM

1шт.

9

1027525

PACKAGE

KIT DEPTH STOP 5 PLX PERM

1шт.

10

1027526

RETAINER

STOP - depth: 1.625 outside wing black, Years: -31-DEC-99

1шт.

10

350746A1

STOP

DEPTH: 1.625'' BLACK PNTD, Start Year: 01-JAN-00

1шт.

11

1027527

STOP

- depth: 1.125 inside wing black, Years: -31-DEC-99

1шт.

11

350747A1

STOP

DEPTH: 1.125'' BLACK PNTD, Start Year: 01-JAN-00

1шт.

12

1020439

STOP

- transport 4", Years: -31-DEC-99

1шт.

12

350845A1

STOP

DEPTH 4'' PLAIN, Start Year: 01-JAN-00

1шт.

Выбрано товаров: 21
