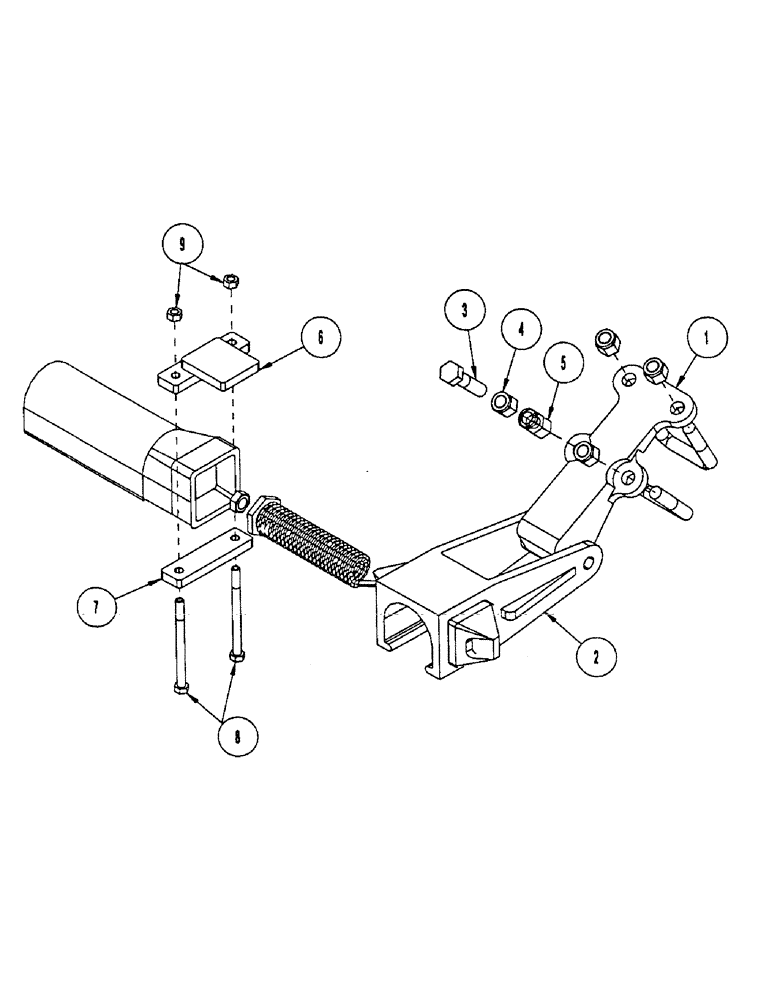

Запчасти Case IH CONCORD (B70) - DISK LEVELER, DISCONTINUED PARTS

1

1029568

LEVER

DISC MOUNT (Replaced by 1032185)

1шт.

2

1030484

ARM

- carrier (Replaced by 1030845)

1шт.

PL2869

PIVOT

5 PLEX PIVOT LIMITER (Incl. 3-5)

1шт.

3

413-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

4шт.

4

425-148

JAM NUT,Jam, 1/2"-13, G5

4шт.

5

1030837

COUPLING

NUT - coupling: .50 x 1.75

4шт.

TPL2408

KIT

DISK LEVELER FIX KIT (Incl. 6-9) (Not a service part)

1шт.

6

1030835

SUPPORT

WELDMENT LIMITER

1шт.

7

1030833

BAR

- bolting

1шт.

8

413-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

.313 X .5 UNC GR5 YZD

2шт.

9

231-1445

NUT,5/16"-18, GB

.313 UNC YZD NYL INS

2шт.
