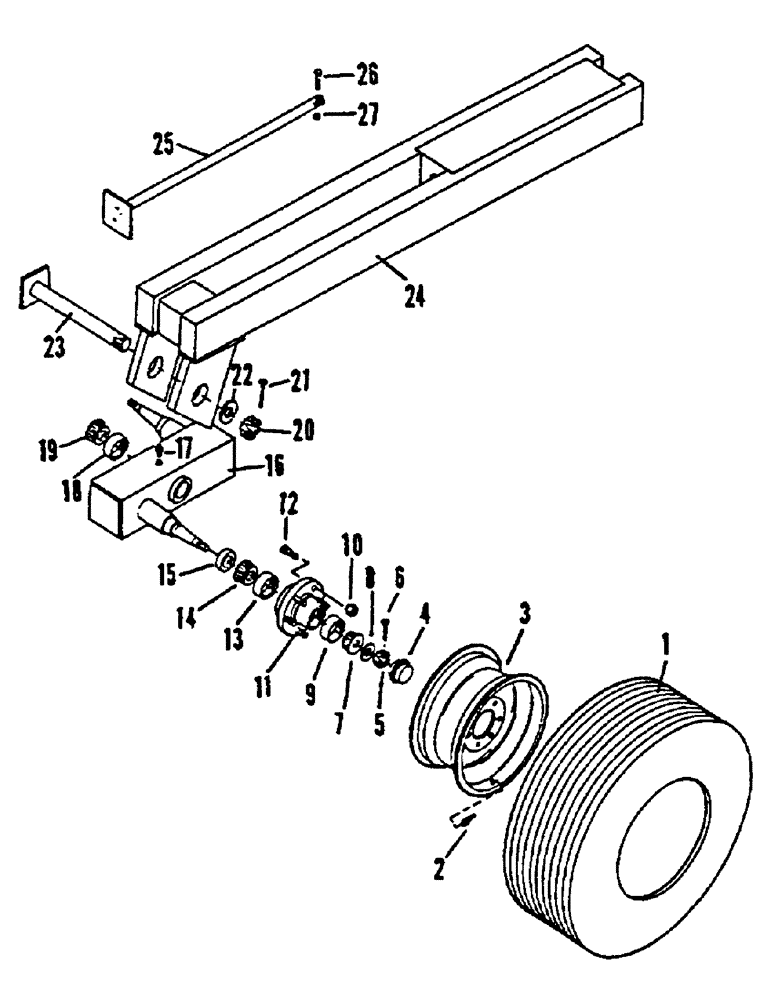

Запчасти Case IH CONCORD (B64) - CHISEL PLOW CONVERSION, OPTION

1

1014151

TYRE/TIRE

TIRE 9.5L-14 6 Ply I-1

1шт.

2

1012383

VALVE STEM

TIRE VALVE STEM

1шт.

3

1014152

RIM

14 X8KB 6-HOLE 1.13 INSET

1шт.

4

1012374

HUB

DUST CAP DC13 PLN

1шт.

5

425-1312

SLOTTED NUT,3/4"-16, G5

.75 UNF GR5 YZD

8шт.

6

432-1224

COTTER PIN,3/16" x 1-1/2"

3/16" x 1 1/2"

8шт.

7

1012356

ROLLER BEARING,1.25" ID x 0.625"

BEARING CONE #LM67048

1шт.

8

1012377

WASHER

P.WASHER .81 ID 1.75 .188 PLN

8шт.

9

1012360

CUP

- bower #67010 (CT & D #LM67010)

1шт.

10

1016177

WHEEL NUT

WHEEL .563 UNF CTD# WB40

6шт.

11

1016175

HUB

H630-2 C/W CUPS AND STUDS

1шт.

12

1016176

STEP BOLT

BOLT .563 UNF GR5 WB41

6шт.

13

1012359

CUP

- CT & D # & NTN #LM501310

1шт.

14

1012354

ROLLER BEARING,1.625" ID x 2.09375" OD x 0.7656"

BEARING CONE #LM501349

1шт.

15

1013560

SEAL

HUB OIL SEAL FED MOG #473473

1шт.

16

1021374

BEAM

WLDMT - walking beam

1шт.

17

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper 1/4"-28 NPT x .54" lg

2шт.

18

1025244

CUP

(TMK LM 29710)

2шт.

19

1025243

CONE

ASSY (TMK LM29700LA)

2шт.

20

425-1224

SLOTTED NUT,1 1/2"-6, G5

NUT, SLOTTED 1.5-6 GR5 ZND

2шт.

21

432-2448

COTTER PIN,3/8" x 3"

3/8" x 3"

2шт.

22

1025310

BUSHING

- mach: 2.250 x 1.50 18ga

1шт.

23

1025273

PIN

WLDMT - pin

1шт.

24

1021371

STRUT

WLDMT - strut

1шт.

25

1017002

PIN

/W PIVOT 1.250 OD YZD

1шт.

26

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

.375 X 2.5 UNC GR5 YZD

1шт.

27

232-1446

NUT,3/8"-16, GC

NUT, LOCK, 3/8"-16, GC

1шт.
