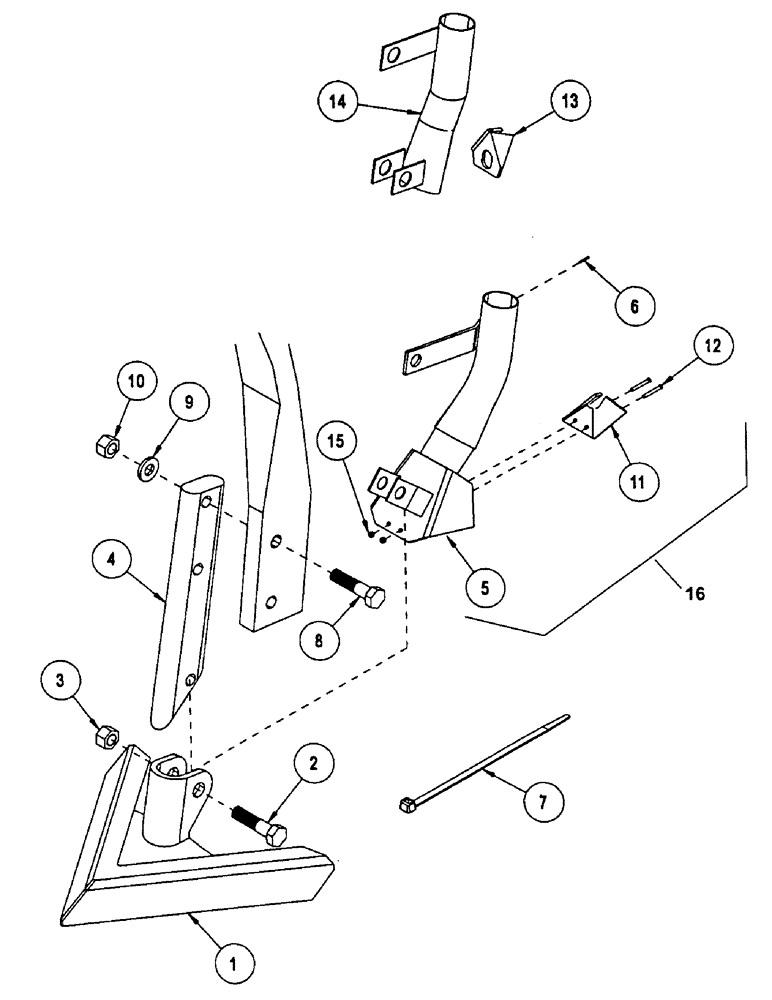

Запчасти Case IH CONCORD (B62) - LD SWEEP

1

1032200

SHOE

SWEEP - LD version II 4"

1шт.

1

1032199

SWEEP

-LD VERSION II 6 IN

1шт.

1

1027915

SWEEP

-LD VERSION II 11 IN

1шт.

1

1033379

SWEEP

-LD VERSION II 13 IN

1шт.

2

1027916

BOLT

BOLT - .50 bevelled head

1шт.

3

1027917

NUT

- .50 bevelled

1шт.

4

1027914

SUPPORT

SHANK TRANSITION PNTD

1шт.

5

290108A1

BOOT

WLDMT - boot LD seed

1шт.

6

1024456

SELF-TAP SCREW

SCREW TAP #10 X .5 -ZIPIN

1шт.

7

1030063

CABLE TIE,.30" x 8 7/8"

.30 X8.88LG BLK NYL

1шт.

8

426-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 8

.5 X 2.5 UNC GR8 YZD

2шт.

9

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

10

425-108

NUT,1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

11

1032377

MUD DEFLECTOR

DEFLECTOR - LD boot

1шт.

12

290177A1

SCREW

MACHINE SCREW - H-H #6 x .50 NC SS

2шт.

13

1029655

PLATE

- deflector (Discontinued)

1шт.

14

1027918

BOOT

- seed (Replaced by 1033338)

1шт.

15

1032094

LOCK NUT

NUT - K-lock: #6 NC SS

2шт.

16

1033338

TUBE

ASSY - seed boot LD (Incl. 5, 6, 11, 12, 15)

1шт.
