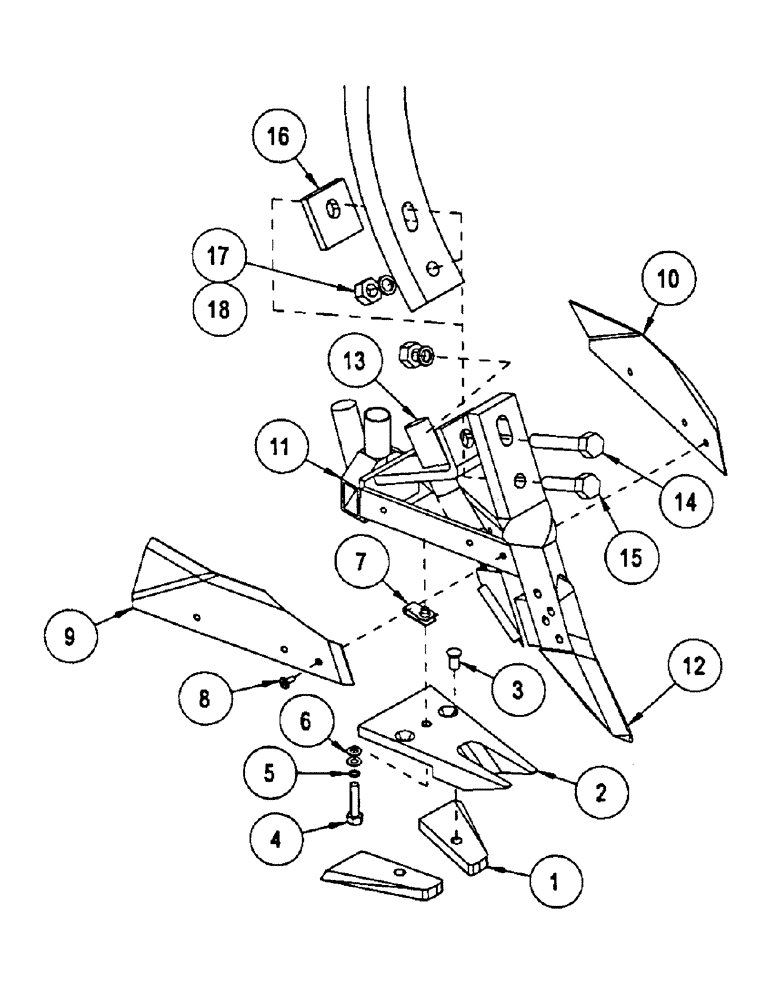

Запчасти Case IH CONCORD (B60) - STANDARD ANDERSON OPENER, 10" DRY

1

1030570

LARGE PLATE

INSERT - chrome

2шт.

2

1030055

BASE PLATE

PLATE BASE A-10 PLN

1шт.

3

1030571

SCREW

- F-H-S-C: .38 x 1.00 NC

2шт.

4

413-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

1шт.

5

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

6

1011583

WASHER

- flat: .31 ZP

2шт.

7

1030568

NUT

EXTRUDED PANEL .31 PNT

1шт.

8

1030567

RIVET

: 8-8 buttonhead

6шт.

9

1030054

SHIELD

UHMW SHIELD WHITE .25 TK RH

1шт.

10

1030053

SHIELD

UHMW SHIELD WHITE .25 TK LH

1шт.

11

1032064

FRAME

/W A-10 STANDARD DRY PTD

1шт.

12

1033282

TIP

CHROME - tip

1шт.

13

1032072

TUBE,25.4 mm Diameter, 147 mm Length

- round std dry (Not a service part)

1шт.

14

413-852

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 5

.5 X 3.25 UNC GR5 YZD

1шт.

15

413-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5

.5 X 2.75 UNC GR5 YZD

1шт.

16

1033283

SPACER

PLATE-SPACER A-STD PNTD

1шт.

17

425-108

NUT,1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

18

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.
