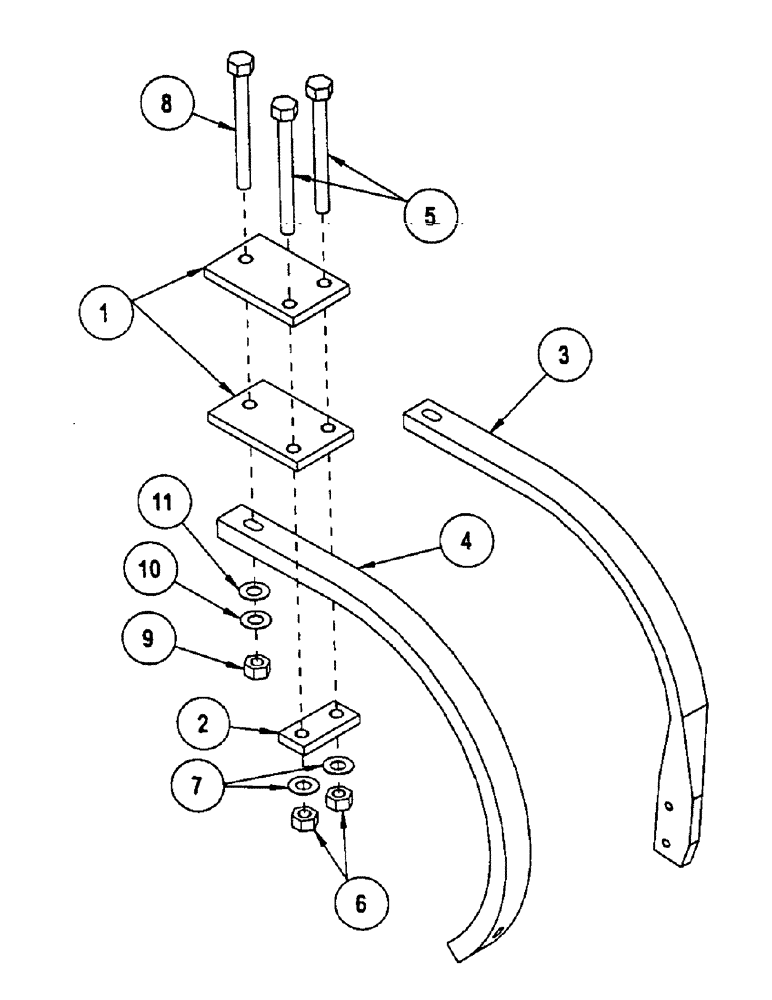

Запчасти Case IH CONCORD (B50) - SOLID MOUNT SHANK ASSEMBLY

1

1020731

PLATE

- bolting

2шт.

2

1020732

PLATE

- bolting

1шт.

3

1030504

SHANK

- side mount

1шт.

4

1021262

SHANK

- W/SL O/top 1.25 x 2, 53 degree

1шт.

5

413-12128

BOLT,Hex, 3/4" - 10 x 8", Gr 5

.75 X 8 UNC GR5 YZD

2шт.

6

425-1012

NUT,3/4"-10, G5

2шт.

7

492-11075

LOCK WASHER,3/4"

3/4"

2шт.

8

426-10128

BOLT,Hex, 5/8" - 11 x 8", Gr 8

.625 X 8 UNC GR8 YZD

1шт.

9

425-1010

NUT,5/8"-11, G5

1шт.

10

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

11

1013004

WASHER

- flat: SAE .63 ZP

1шт.
