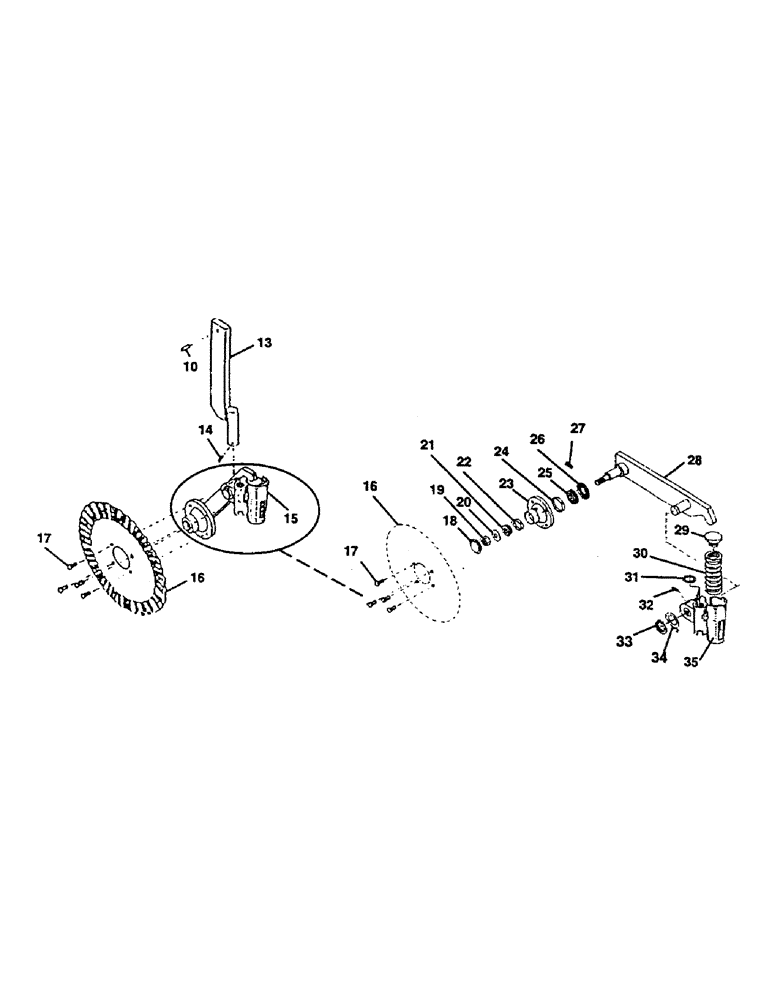

Запчасти Case IH CONCORD (B45) - BLU-JET COULTER REPLACEMENT PARTS

10

1033066

PIN

- Roll Blu J BP-3162

1шт.

13

1033070

SUPPORT

WLDMT - coulter SH Blu J AM-2741

1шт.

13

1033069

SUPPORT

WLDMT - coulter SH Blu J AM-2725

1шт.

13

1033061

BAR

ANGLE PNTD

1шт.

14

1033068

PIN

- Roll Blu J BP-3534

1шт.

14

1033067

PIN

- Roll Blu J BP-3519

1шт.

15

1033071

SUPPORT

ASSY - coulter arm Blu J AM-2799

1шт.

16

1033080

PLOW DISC

BLADE - 20" fluted Blu J AP-2701

1шт.

17

1033072

BOLT

- hex: .63 x 1.00 NF gr5 ZP

4шт.

18

1033081

DUST CAP

CAP - dust Blu J AP-2703

1шт.

19

1033082

NUT

- hex Blu J AP-2704

1шт.

20

1033083

WASHER

- flat Blu J AP-2705

1шт.

21

1033084

ROLLER BEARING

- outer Blu J AP-2024

1шт.

22

1033086

CUP

- outer Blu J AP-2075

1шт.

23

1033073

HUB

ASSY - hub Blu J AP-2707

1шт.

23

1033085

HUB ASSY.

ASSY - hub Blu J AP-2706-1

1шт.

24

1033087

CUP

- inner Blu J AP-2524

1шт.

25

1033088

BEARING, CONE

CONE - inner Blu J AP-2023

1шт.

26

1033089

SEAL

- oil Blu J AP-2747

1шт.

27

1011984

SPLIT PIN/SAFETY PIN

PIN - cotter: .16 x 1.50 ZP

1шт.

28

1033074

ARM ASSY.

WLDMT - coulter arm Blu J AM-2705

1шт.

29

1033075

PLUG

CAP - spring Blu J AP-2709

1шт.

30

1033076

SPRING

- coil Blu J AP-2710

1шт.

31

1033064

WASHER

- machine Blu J BP-3205

1шт.

32

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper 1/4"-28 NPT x .54" lg

1шт.

33

1033077

WASHER

- machine Blu J BP-3192

1шт.

34

1033078

RING

- snap Blu J AP-2711

1шт.

35

1033079

HOUSING

CASTING - knee Blu J AM-2726

1шт.
