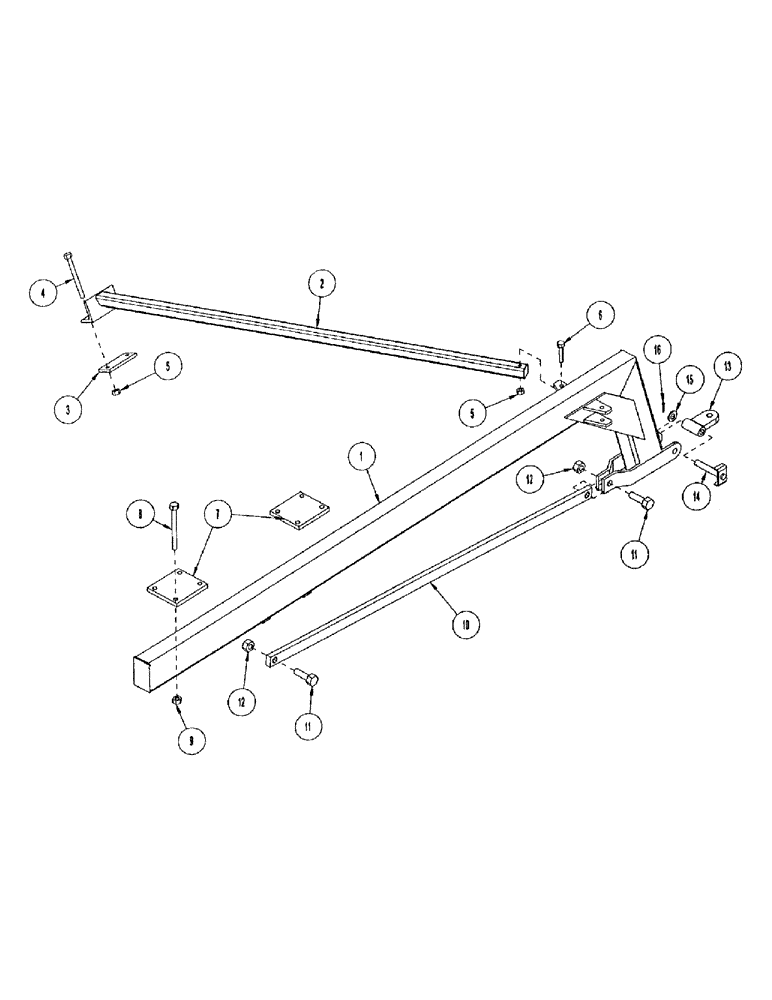

Запчасти Case IH CONCORD (B38) - REAR HITCH, 12" ATDS

1

CAS1016681

PLATE ASSY.

HITCH/W REAR

1шт.

2

1023380

SUPPORT

ANGLE/W BRACE LH

1шт.

2

1023379

SUPPORT

ANGLE/W BRACE RH

1шт.

3

1017180

LARGE PLATE

PLATE BOLTING .5 TK PNTD

2шт.

4

413-10128

BOLT,Hex, 5/8" - 11 x 8", Gr 5

.625 X 8 UNC GR5 YZD

4шт.

5

231-14410

NUT,5/8"-11, GB

NUT, LOCK, 5/8"-11, GB

6шт.

6

413-1064

BOLT,Hex, 5/8" - 11 x 4", Gr 5

.625 X 4 UNC GR5 YZD

2шт.

7

1014919

PLATE

BOLT .75 TK

2шт.

8

426-12136

BOLT,Hex, 3/4" - 10 x 8-1/2", Gr 8

.75 X 8.5 UNC GR8 YZD

8шт.

9

232-14412

NUT,3/4"-10, GB

.75 UNC YZD NYLON INS

8шт.

10

1026887

BAR

-BRACE PNT

1шт.

11

413-1656

BOLT,Hex, 1" - 8 x 3-1/2", Gr 5

1 X 3.5 UNC GR5 YZD

2шт.

12

232-14416

NUT,1"-8, GC

LOCK 1 UNC GR B YZD NYL LK

2шт.

13

1015144

BAR

/W HITCH PNTD

1шт.

14

1019734

PIN

1 OD X 6.69 SP YZD

1шт.

15

1016663

WASHER

- flat: SAE 1.00 ZP

1шт.

16

432-1632

COTTER PIN,1/4" x 2"

1/4" x 2"

1шт.
