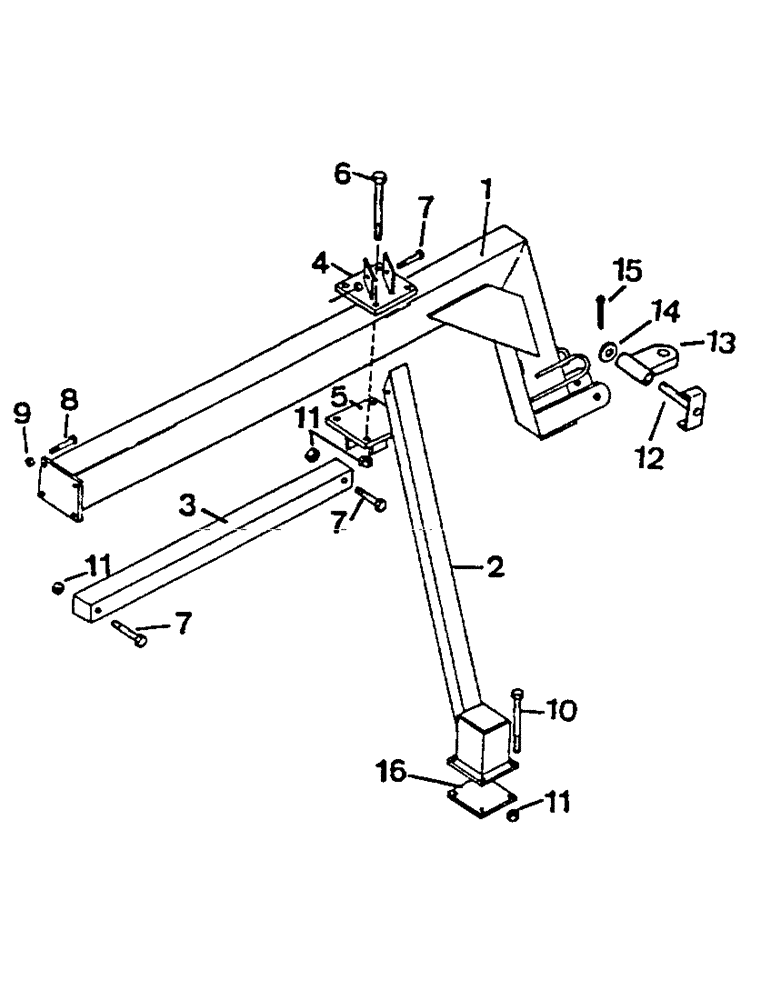

Запчасти Case IH CONCORD (B33) - REAR HITCH, 2 SECTION, DISCONTINUED

1

1020734

HITCH ASSY, TRAILER

WLDMT - hitch

1шт.

2

1020767

BRACE

WLDMT - angle brace

1шт.

3

1017227

TUBE,45.5" Length

WLDMT - tube lower

1шт.

4

1020744

CLEVIS

WLDMT - clevis

1шт.

5

1014925

CLEVIS

WLDMT - clevis buttom

1шт.

6

413-10128

BOLT,Hex, 5/8" - 11 x 8", Gr 5

.625 X 8 UNC GR5 YZD

4шт.

7

413-1064

BOLT,Hex, 5/8" - 11 x 4", Gr 5

.625 X 4 UNC GR5 YZD

3шт.

8

413-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 5

.75 X 3 UNC GR5 YZD

4шт.

9

232-14412

NUT,3/4"-10, GB

.75 UNC YZD NYLON INS

4шт.

10

413-1096

BOLT,Hex, 5/8" - 11 x 6", Gr 5

.625 X 6 UNC GR5 YZD

4шт.

11

231-14410

NUT,5/8"-11, GB

NUT, LOCK, 5/8"-11, GB

11шт.

12

1019734

PIN

1 OD X 6.69 SP YZD

1шт.

13

1015144

BAR

/W HITCH PNTD

1шт.

14

1016663

WASHER

- flat: SAE 1.00 ZP

1шт.

15

432-1632

COTTER PIN,1/4" x 2"

1/4" x 2"

1шт.

16

1021618

PLATE

- bolting

1шт.
