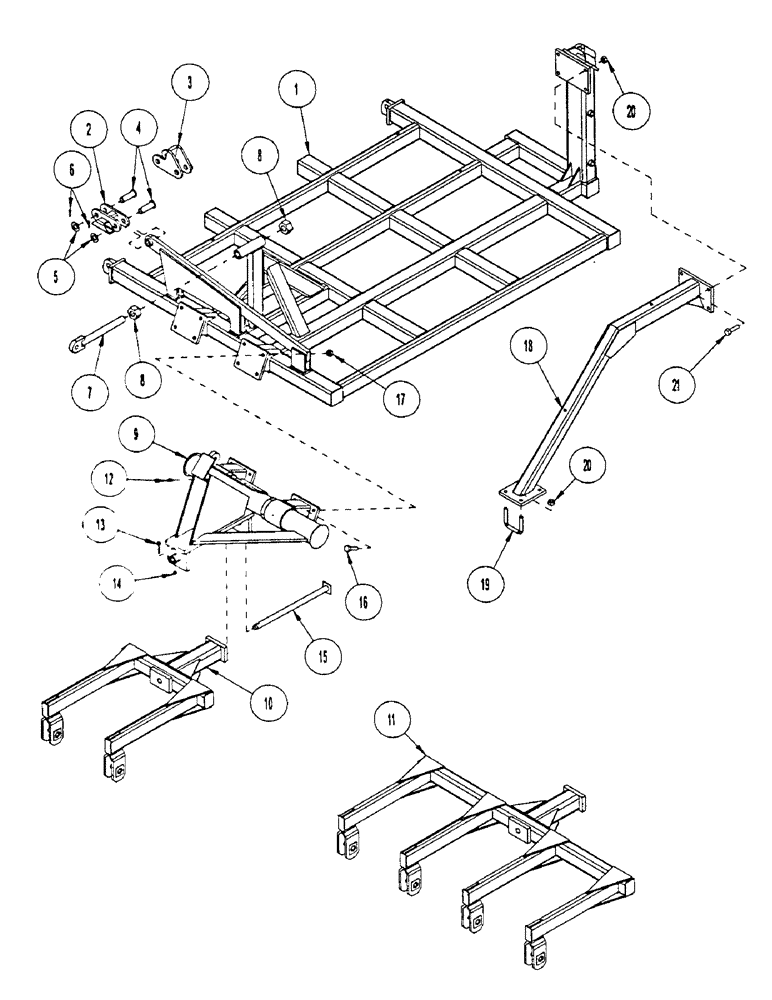

Запчасти Case IH CONCORD (B16) - WING FRAMES WITH ROCKSHAFT & WHEEL GANGS, 5 SECTION OUTER RIGHT HAND WING SHOWN

1

1027725

FRAME

WING/W OUTERRH 4012 4R 5P PNT

1шт.

1

1027724

FRAME

WING/W OUTER LH 4012 4R PNT

1шт.

1

1030440

FRAME

WLDMT - wing outside right - 4012 5P 3R

1шт.

1

1030439

FRAME

WLDMT - wing outside left - 4012 5P 3R

1шт.

1

1021583

CHASSIS

WLDMT - wing RH outer 4812-3R

1шт.

1

1021582

CHASSIS

WLDMT - wing LH outer 4812-3R

1шт.

1

1025746

FRAME

WLDMT - wing RH outer 4812-4R

1шт.

1

1025745

FRAME

WLDMT - wing LH outer 4812-4R

1шт.

1

1030408

FRAME

WLDMT - outside wing RH - 5612 4R

1шт.

1

1030407

FRAME

WLDMT - outside wing LH - 5612 4R

1шт.

1

1024559

CHASSIS

WLDMT - wing RH outer 5612-3R

1шт.

1

1024558

CHASSIS

WLDMT - wing LH outer 5612-3R

1шт.

1

1025568

FRAME

WING/W RH OUTER 6012-4R PNT

1шт.

1

1025567

FRAME

WING/W LH OUTER 6012-4R PNT

1шт.

1

1025405

FRAME

WING/W RH OUTER 6012-3R PNT

1шт.

1

1025404

FRAME

WING/W LH OUTER 6012-3R PNT

1шт.

2

1019773

LINK

/W PNT 4012 5P 3 & 4R

2шт.

3

1020970

LINK

WLDMT - LH link, 4812, 5612, 6012 3 & 4R

1шт.

3

1020969

LINK

WLDMT - RH link, 4812, 5612, 6012 3 & 4R

1шт.

4

1025608

PIN

/W CYL LINK 1.25 OD YZD

4шт.

5

1016950

WASHER

- flat: SAE 1.25 ZP

1шт.

6

432-1632

COTTER PIN,1/4" x 2"

1/4" x 2"

1шт.

7

1017157

ADJUSTMENT ROD

ROD/W ADJUSTMENT 1.5 OD

2шт.

8

425-1024

NUT,1 1/2"-6, G5

1.5 UNC GR5 YZD

4шт.

9

1016968

SUPPORT

ROCKSHAFT/W WING PNTD - 4012 5P, 4812 3 & 4R

2шт.

9

1017772

ROCKSHAFT

ROCK WING PNTD

2шт.

10

1030038

FRAME

GANG/W WHEEL 12'' PNTD - 4012 5P, 4812 3 & 4R

2шт.

11

1029699

FRAME

GANG/W WHEEL 12'' PNTD - 5612 & 6012 3 & 4R

2шт.

12

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper 1/4"-28 NPT x .54" lg

4шт.

13

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

.375 X 2.5 UNC GR5 YZD

2шт.

14

232-1446

NUT,3/8"-16, GC

NUT, LOCK, 3/8"-16, GC

2шт.

15

1017002

PIN

/W PIVOT 1.250 OD YZD

2шт.

16

413-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

Hex, 3/4"-10 x 2-1/2", G5

16шт.

17

232-14412

NUT,3/4"-10, GB

.75 UNC YZD NYLON INS

16шт.

18

1027655

BRACKET

SUPPORT/W WINGTOWER PNT - 4012 5P 4R only

2шт.

19

1018629

U-BOLT

.75 4.031W 5.625D

4шт.

20

232-14412

NUT,3/4"-10, GB

.75 UNC YZD NYLON INS

16шт.

21

413-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 5

.75 X 3 UNC GR5 YZD

8шт.

22

1025788

PIN

1.25 OD X 6.65 FL YZD (6012 3 & 4 rank)

2шт.

23

219-3

LUBE NIPPLE,1/8" - 27 NPTF

STR .125NPT .75LG

4шт.
