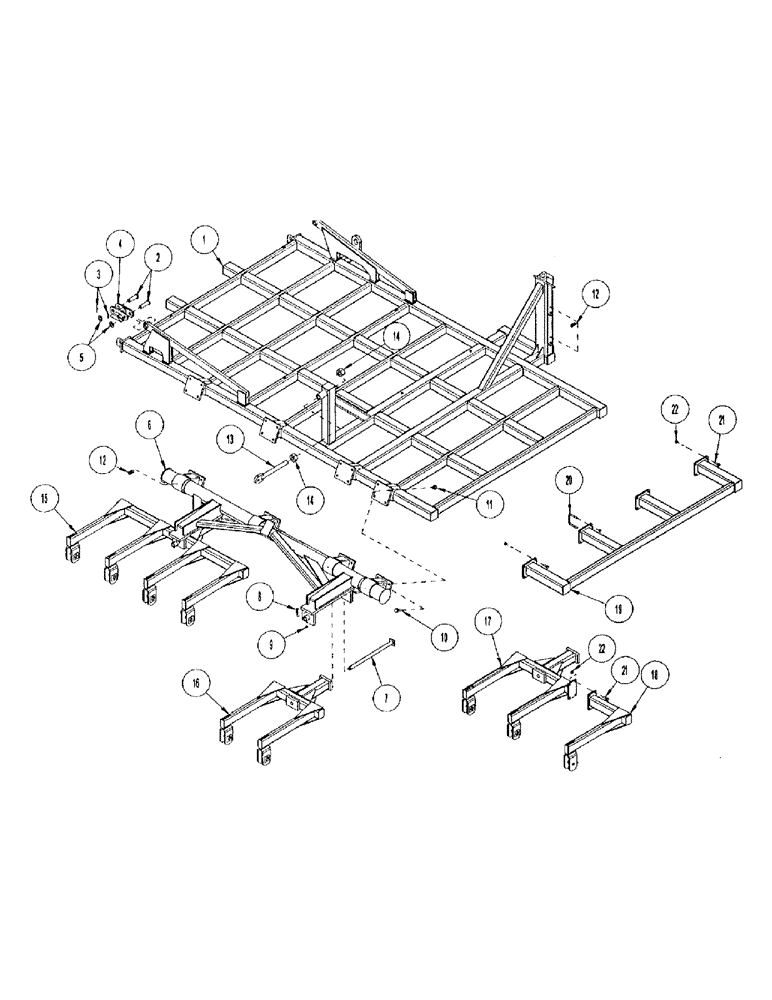

Запчасти Case IH CONCORD (B14) - WING FRAMES WITH ROCKSHAFTS & WHEEL GANGS, 3612 - 4412, 3 & 4 RANK, RIGHT HAND WING SHOWN

1

1024957

CHASSIS

WLDMT - wing RH 4412-3R

1шт.

1

1024956

CHASSIS

WLDMT - wing LH 4412-3R

1шт.

1

1025277

CHASSIS

WLDMT - wing LH 4412-4R

1шт.

1

1025276

CHASSIS

WLDMT - wing RH 4412-4R

1шт.

1

1018511

FRAME

WING/W LH 3612-4R PNT

1шт.

1

1018510

FRAME

WING/W RH 3612-4R PNT

1шт.

1

1018622

CHASSIS

WLDMT - wing RH 3612-3R

1шт.

1

1018621

CHASSIS

WLDMT - wing LH 3612-3R

1шт.

1

1018448

FRAME

WING/W RH 4012-4R PNT

1шт.

1

1018447

FRAME

WING/W LH 4012-4R PNT

1шт.

1

1018642

CHASSIS

WLDMT - wing RH 4012-3R

1шт.

1

1018641

CHASSIS

WLDMT - wing LH 4012-3R

1шт.

2

1025608

PIN

/W CYL LINK 1.25 OD YZD

8шт.

3

432-1632

COTTER PIN,1/4" x 2"

1/4" x 2"

8шт.

4

1019773

LINK

/W PNT

4шт.

5

1016950

WASHER

- flat: SAE 1.25 ZP

8шт.

6

1018581

SHAFT

WLDMT - rockshaft RH - 4012 3R, 4412

1шт.

6

1018580

SHAFT

WLDMT - rockshaft LH - 4012 3R, 4412

1шт.

6

1016786

ROCKSHAFT

/W RH PNTD - 4012 4R

1шт.

6

1016785

ROCKSHAFT

/W LH PNTD - 4012 4R

1шт.

6

1017544

ROCKSHAFT

/W RH PNTD - 3612

1шт.

6

1017543

ROCKSHAFT

/W LH PNTD - 3612

1шт.

7

1017002

PIN

/W PIVOT 1.250 OD YZD

4шт.

8

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

.375 X 2.5 UNC GR5 YZD

4шт.

9

232-1446

NUT,3/8"-16, GC

NUT, LOCK, 3/8"-16, GC

4шт.

10

413-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

Hex, 3/4"-10 x 2-1/2", G5

32шт.

11

232-14412

NUT,3/4"-10, GB

.75 UNC YZD NYLON INS

32шт.

12

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper 1/4"-28 NPT x .54" lg

8шт.

13

1017157

ADJUSTMENT ROD

ROD/W ADJUSTMENT 1.5 OD

2шт.

14

425-1024

NUT,1 1/2"-6, G5

1.5 UNC GR5 YZD

4шт.

15

1029699

FRAME

GANG/W WHEEL 12'' PNTD - 4012, 4412

2шт.

15

1029700

FRAME

GANG/W WHEEL 12''-6 PNTD - 3612

2шт.

16

1030038

FRAME

GANG/W WHEEL 12'' PNTD - 4012, 3612

2шт.

17

1030337

FRAME

GANG/W WHEEL 12'' RH PNTD - 4412

1шт.

17

1030336

FRAME

GANG/W WHEEL 12'' LH PNTD - 4412

1шт.

18

1030342

SUPPORT

WLDMT - gang extension - 4412

1шт.

18

1030341

SUPPORT

WLDMT - gang extension - 4412

1шт.

19

1024960

BAR ASSY.

WLDMT - wing extension - 4412 3R

2шт.

19

1025265

BAR ASSY.

WLDMT - wing extension - 4412 4R

2шт.

20

1016523

BOLT

U .50 X 4.53 X 3.

8шт.

21

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

4шт.

22

425-108

NUT,1/2" - 13, Gr 5

NUT, 1/2"-13, G5

20шт.

23

219-3

LUBE NIPPLE,1/8" - 27 NPTF

STR .125NPT .75LG

4шт.
