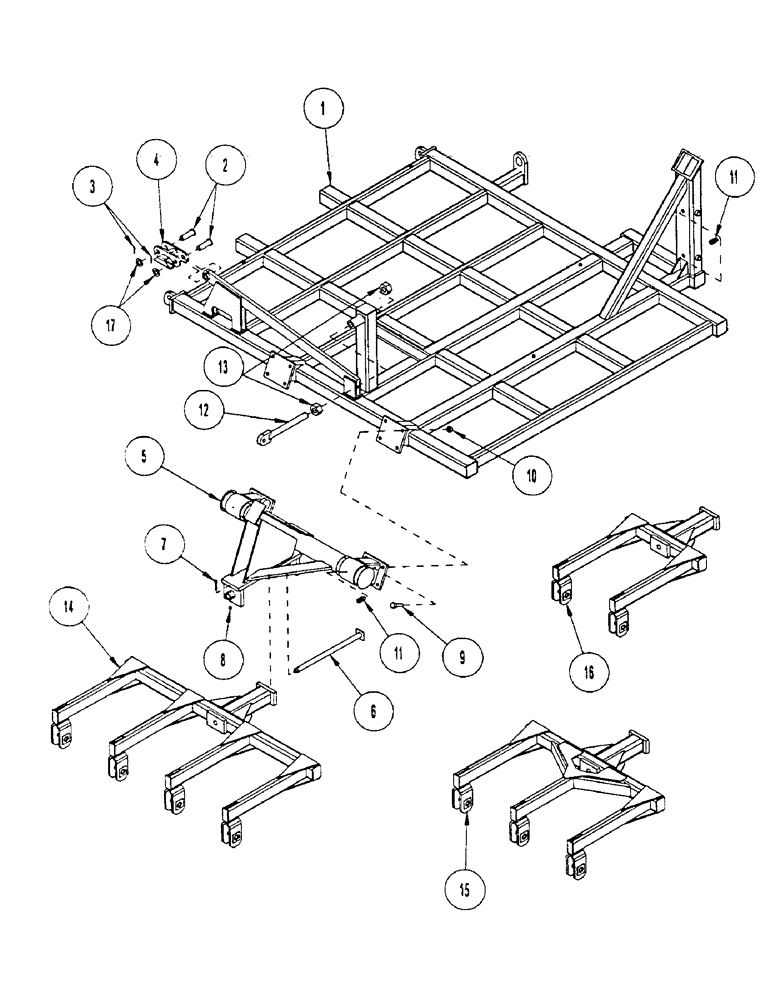

Запчасти Case IH CONCORD (B12) - WING FRAME WITH ROCKSHAFT & WHEEL GANGS, 2412 - 3212, 3 & 4 RANK, RIGHT-HAND WING SHOWN

1

1018481

CHASSIS

WLDMT - wing RH 2412-4R

1шт.

1

1018480

CHASSIS

WLDMT - wing LH 2412-4R

1шт.

1

1018617

CHASSIS

WLDMT - wing LH 2412-3R

1шт.

1

1018616

CHASSIS

WLDMT - wing RH 2412-3R

1шт.

1

1018625

CHASSIS

WLDMT - wing LH 2812-3R

1шт.

1

1018624

CHASSIS

WLDMT - wing RH 2812-3R

1шт.

1

1018531

CHASSIS

WLDMT - wing LH 2812-4R

1шт.

1

1018530

CHASSIS

WLDMT - wing RH 2812-4R

1шт.

1

1017630

FRAME

WING/W RH 3212-3R PNT

1шт.

1

1017629

FRAME

WING/W LH 3212-3R PNT

1шт.

1

1017607

FRAME

WING/W RH 3212-4R PNT

1шт.

1

1017606

FRAME

WING/W LH 3212-4R PNT

1шт.

2

1025608

PIN

/W CYL LINK 1.25 OD YZD

4шт.

3

432-1632

COTTER PIN,1/4" x 2"

1/4" x 2"

4шт.

4

1019773

LINK

/W PNT

2шт.

5

1017772

ROCKSHAFT

ROCK WING PNTD

2шт.

5

1018612

SHAFT

WLDMT - rockshaft LH - 2412 3R

1шт.

5

1018613

SHAFT

WLDMT - rockshaft LH - 2412 3R

1шт.

5

1016968

SUPPORT

ROCKSHAFT/W WING PNTD - 2412 4R, 2812 3 & 4R, 3212 3R

2шт.

6

1017002

PIN

/W PIVOT 1.250 OD YZD

2шт.

7

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

.375 X 2.5 UNC GR5 YZD

2шт.

8

232-1446

NUT,3/8"-16, GC

NUT, LOCK, 3/8"-16, GC

2шт.

9

413-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

Hex, 3/4"-10 x 2-1/2", G5

16шт.

10

232-14412

NUT,3/4"-10, GB

.75 UNC YZD NYLON INS

16шт.

11

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper 1/4"-28 NPT x .54" lg

4шт.

12

1017157

ADJUSTMENT ROD

ROD/W ADJUSTMENT 1.5 OD

2шт.

13

425-1024

NUT,1 1/2"-6, G5

1.5 UNC GR5 YZD

4шт.

14

1029699

FRAME

GANG/W WHEEL 12'' PNTD - 3212

2шт.

15

1029700

FRAME

GANG/W WHEEL 12''-6 PNTD - 2812

2шт.

16

1030038

FRAME

GANG/W WHEEL 12'' PNTD - 2412

2шт.

17

1016950

WASHER

- flat: SAE 1.25 ZP

4шт.

18

219-3

LUBE NIPPLE,1/8" - 27 NPTF

STR .125NPT .75LG

4шт.
