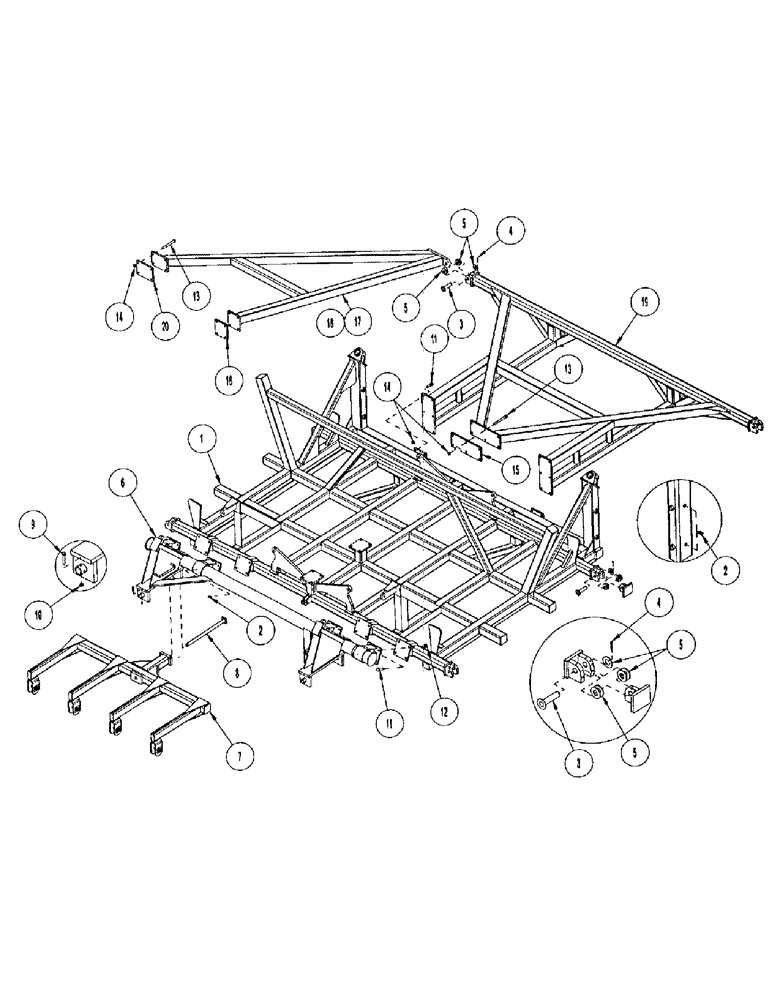

Запчасти Case IH CONCORD (B10) - MAIN FRAME WITH ROCKSHAFT & WHEEL GANGS, 5612 & 6012, 3 & 4 RANK

1

1025414

FRAME

/W MAIN 6012-3R PNT

1шт.

1

1024326

FRAME

WLDMT - main frame: 5612-3R

1шт.

1

1025533

FRAME

/W MAIN 6012-4R PNT

1шт.

1

1030601

FRAME

WLDMT - main frame: 5612-4R

1шт.

2

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper 1/4"-28 NPT x .54" lg

4шт.

3

1015235

PIN

1.25 OD HINGE YZD

6шт.

4

432-1632

COTTER PIN,1/4" x 2"

1/4" x 2"

6шт.

5

1016950

WASHER

- flat: SAE 1.25 ZP

30шт.

6

1025582

ROCKSHAFT

/W MAIN PNTD

1шт.

7

1030041

FRAME

GANG/W WHEEL 12'' PNTD

2шт.

8

1025579

PIVOT PIN

PIN/W PIVOT 1.5 OD YZD

2шт.

9

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

.375 X 2.5 UNC GR5 YZD

2шт.

10

232-1446

NUT,3/8"-16, GC

NUT, LOCK, 3/8"-16, GC

2шт.

11

413-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

Hex, 3/4"-10 x 2-1/2", G5

28шт.

12

232-14412

NUT,3/4"-10, GB

.75 UNC YZD NYLON INS

16шт.

13

413-12112

BOLT,Hex, 3/4" - 10 x 7", Gr 5

-3/4-10 X 7 GR5 ZND

22шт.

14

425-1012

NUT,3/4"-10, G5

34шт.

15

1023821

PLATE

-BOLTING .5 TK PNTD

1шт.

16

1024260

PLATE

-BOLTING

2шт.

17

1024279

BRACKET

WING/W BRACE LH PNT

1шт.

18

1024280

BRACE

WING/W BRACE RH PNT

1шт.

19

1024322

FRAME

/W EXTENSION PNT

1шт.

20

1020892

PLATE

-BOLTING PNT

2шт.

21

219-3

LUBE NIPPLE,1/8" - 27 NPTF

STR .125NPT .75LG

4шт.
