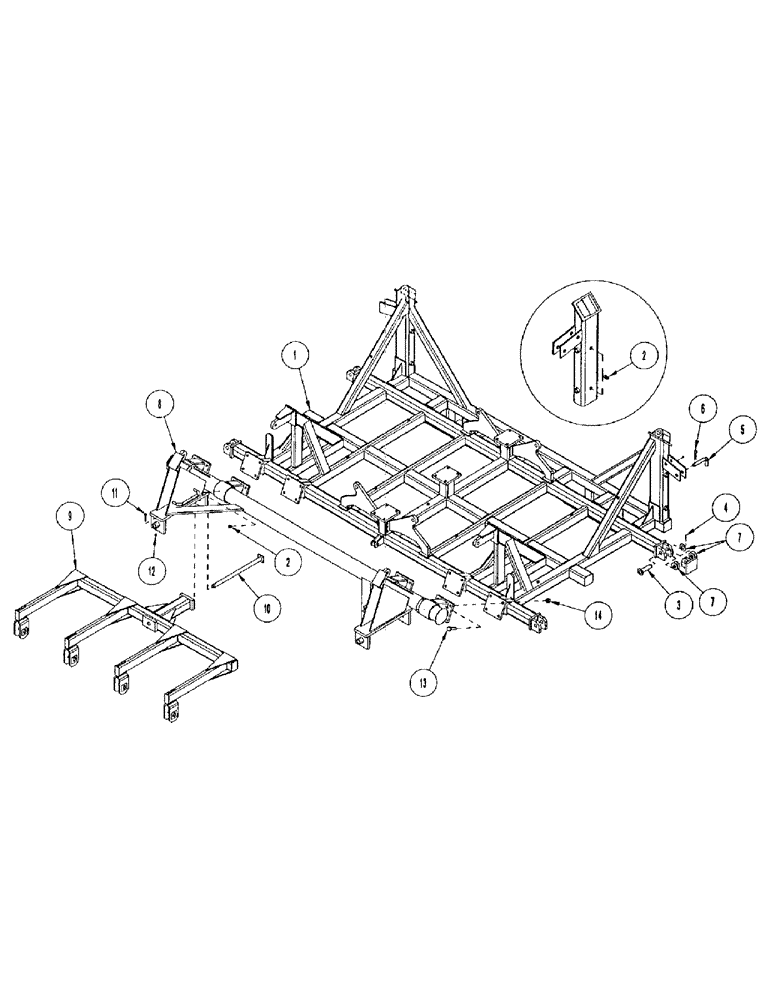

Запчасти Case IH CONCORD (B04) - MAIN FRAME WITH ROCKSHAFT & WHEEL GANGS, 2412 - 4412 3 RANK

1

1017639

FRAME

/W MAIN AT3-..12 PNT

1шт.

1

1024944

FRAME ASSY

WLDMT - main frame: 4412-3R

1шт.

1

1030430

FRAME

WLDMT - main frame: 4012-3R 5 plex

1шт.

2

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper 1/4"-28 NPT x .54" lg

4шт.

3

1015235

PIN

1.25 OD HINGE YZD

6шт.

4

432-1632

COTTER PIN,1/4" x 2"

1/4" x 2"

6шт.

5

1026852

PIN

1 OD BENT WING LOCK YZD

2шт.

6

0100435

HAIR PIN COTTER,M19

HAIRPIN .148 X 3.313 YZD

2шт.

7

1016950

WASHER

- flat: SAE 1.25 ZP

20шт.

8

1016704

SUPPORT

ROCKSHAFT/W MAIN PNTD

1шт.

9

1029699

FRAME

GANG/W WHEEL 12'' PNTD

2шт.

10

1017002

PIN

/W PIVOT 1.250 OD YZD

2шт.

11

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

.375 X 2.5 UNC GR5 YZD

2шт.

12

232-1446

NUT,3/8"-16, GC

NUT, LOCK, 3/8"-16, GC

2шт.

13

413-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

Hex, 3/4"-10 x 2-1/2", G5

16шт.

14

232-14412

NUT,3/4"-10, GB

.75 UNC YZD NYLON INS

16шт.

15

219-3

LUBE NIPPLE,1/8" - 27 NPTF

STR .125NPT .75LG

4шт.
