Запчасти Case IH CONCORD (C02) - PRIMARY MANIFOLD, TUBES AND STANDS

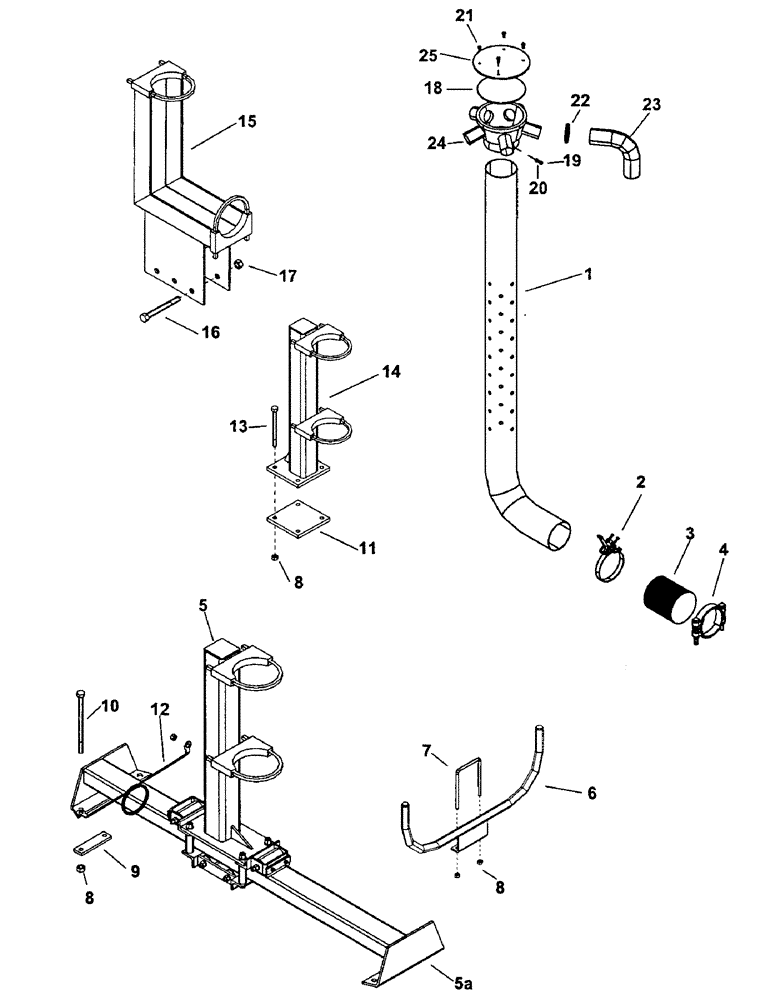

Схема запчастей Case IH CONCORD - (C02) - PRIMARY MANIFOLD, TUBES AND STANDS
11
20
17
22
23
15
8
5
6
10
19
25
24
13
5a
12
1
21
16
3
2
8
14
4
9
8
7
18

Артикул

Название

Примечание

Количество

1

1013161

MANIFOLD

PRIMARY TUBE ASSEMBLY (Order 1033291)

1шт.

2

1013259

CLAMP

/W

1шт.

3

1027852

HOSE,5.00" ID x 102.00"

PVC 5.00" ID x 102.00"

1шт.

3

1021326

HOSE,5.00" ID x 150.00"

5.00" ID x 150.00"

1шт.

3

1032275

HOSE,5.00" ID x 336.00"

PVC-B 5.00" ID x 336.00"

1шт.

3

1032277

HOSE,5.00" ID x 336.00"

PVC-W 5.00" ID x 336.00"

1шт.

3

1032337

HOSE,5.00" ID x 1200.00"

2.00" ID x 1200.00", PVC-W

1шт.

3

1032338

HOSE,5.00" ID BULK

5.00" ID BULK

1шт.

4

1026541

CLAMP,127mm - 146.05mm

HOSE #600 5.00-5.75 YZD

1шт.

5

1027644

RAIL

MANIFOLD STAND & RAIL - LH (Order 2901017A1)

1шт.

5

1027642

RAIL

MANIFOLD STAND & RAIL - RH (Order 2901017A1)

1шт.

5a

1027631

MOUNTING PARTS

MANIFOLD RAIL

1шт.

6

1027765

CRADLE

ASSEMBLY

1шт.

7

1027764

U-BOLT

1/2" x 4 3/4" x 7 1/4"

1шт.

8

231-1448

NUT,1/2"-13, GB

.5 UNC GR B YZD NYLON INSERT

11шт.

9

1021679

LARGE PLATE

PLATE, backup

2шт.

10

1027720

BOLT

hex, 1/2" x 7 1/2"

2шт.

11

1026854

LARGE PLATE

PLATE-BOLTING

1шт.

12

1030788

CABLE

- ground wire

1шт.

13

413-896

BOLT,Hex, 1/2" - 13 x 6", Gr 5

.5 X 6 UNC GR5 YZD

4шт.

13

1020848

BOLT

hex, 1/2" x 8"

4шт.

14

1021810

MANIFOLD

STAND ASSEMBLY (Order 290087A1)

1шт.

15

1013065

SUPPORT

WELDMENT

1шт.

16

1016292

BOLT

BOLT, hex, 5/8" x 5 1/2"

3шт.

17

231-14410

NUT,5/8"-11, GB

NUT, LOCK, 5/8"-11, GB

3шт.

18

1023702

CUSHION

PAD - rubber - standard bell

1шт.

18

1030731

CUSHION

- manifold, super bell

1шт.

19

1013208

SET SCREW

SCREW SET, C-P 1/4" x 1"

2шт.

20

1013518

LOCK NUT

NUT, jam, 1/4"

2шт.

21

1018047

BOLT

BOLT, hex, 1/4" x 5/8"

1шт.

22

1013134

CLAMP

- hose, S.S. #28, 1.32-2"

1шт.

22

1012980

CLAMP

- hose, S.S. #44, 2.31-3"

1шт.

22

1023703

CLAMP

- hose, S.S. #12, .68-1.25"

1шт.

23

1029296

HOSE,25.70 mm ID BULK

- 12% EVA BLACK 25.70 mm ID BULK

1шт.

23

1021832

HOSE,1.25" ID

Bulk 1.25" ID

1шт.

23

1015887

HOSE,1.50" ID BULK

PVC 1.50" ID BULK

1шт.

23

1018883

HOSE,51.20 mm ID x 30480.00 mm

Bulk PVC 2.00 ID 51.20 mm ID x 30480.00 mm

1шт.

23

1012984

HOSE,2.50" ID

- bulk: PVC-W 2.50" ID

1шт.

23

1012985

HOSE,1.00" ID

- bulk: PVC-W 1.00" ID

1шт.

23

1032279

HOSE,2.50" ID

PVC-B 2.50" ID

1шт.

23

86993088

HOSE,1.00" ID

1032333 Sold by the Foot 1.00" ID

1шт.

23

1032334

HOSE,1.00" ID x 1200.00"

PVC-W 1.00" ID x 1200.00"

1шт.

23

1032335

HOSE,2.50" ID x 600.00"

PVC-W 2.50" ID x 600.00"

1шт.

23

1032336

HOSE,2.50" ID x 600.00"

PVC-B 2.50" ID x 600.00"

1шт.

24

1021287

TUBE ASSY.

8 PORT MANIFOLD WITH COVER STANDARD BELL, 1"

1шт.

24

1026337

TUBE ASSY.

8 PORT MANIFOLD WITHOUT COVER STANDARD BELL, 1"

1шт.

24

1026339

TUBE ASSY.

13 PORT MANIFOLD WITH COVER STANDARD BELL, 1"

1шт.

24

1026338

TUBE ASSY.

13 PORT MANIFOLD WITHOUT COVER STANDARD BELL, 1"

1шт.

24

1026341

TUBE ASSY.

14 PORT MANIFOLD WITH COVER STANDARD BELL, 1"

1шт.

24

1026340

TUBE ASSY.

14 PORT MANIFOLD WITHOUT COVER STANDARD BELL, 1"

1шт.

24

1017915

TUBE ASSY.

18 PORT MANIFOLD WITH COVER STANDARD BELL, 1"

1шт.

24

1017909

TUBE ASSY.

18 PORT MANIFOLD WITHOUT COVER STANDARD BELL, 1"

1шт.

24

1026314

TUBE ASSY.

12 PORT MANIFOLD WITH COVER 1 1/4 "

1шт.

24

1026342

TUBE ASSY.

12 PORT MANIFOLD WITHOUT COVER 1 1/4 "

1шт.

24

1026345

TUBE ASSY.

4 PORT MANIFOLD WITH COVER 1 1/2 "

1шт.

24

1026344

TUBE ASSY.

4 PORT MANIFOLD WITHOUT COVER 1 1/2 "

1шт.

24

1023632

TUBE ASSY.

5 PORT MANIFOLD WITH COVER 1 1/2 "

1шт.

24

1024760

TUBE ASSY.

5 PORT MANIFOLD WITHOUT COVER 1 1/2 "

1шт.

24

1021288

TUBE ASSY.

6 PORT MANIFOLD WITH COVER 1 1/2 "

1шт.

24

1026346

TUBE ASSY.

6 PORT MANIFOLD WITHOUT COVER 1 1/2 "

1шт.

24

1015881

MANIFOLD

/A, PRIMARY 8P 1.50 W/COVER 1 1/2 " PORTS

1шт.

24

1025877

MANIFOLD

8 PORT MANIFOLD WITHOUT COVER 1 1/2 "

1шт.

24

1015594

MANIFOLD

9 PORT MANIFOLD WITH COVER 1 1/2 "

1шт.

24

1014759

MANIFOLD

9 PORT MANIFOLD WITHOUT COVER 1 1/2 "

1шт.

24

1023562

TUBE ASSY.

6 PORT MANIFOLD WITH COVER 2 "

1шт.

24

1026347

TUBE ASSY.

6 PORT MANIFOLD WITHOUT COVER 2 "

1шт.

24

1021303

TUBE ASSY.

7 PORT MANIFOLD WITH COVER 2 "

1шт.

24

1023385

TUBE ASSY.

7 PORT MANIFOLD WITHOUT COVER 2 "

1шт.

24

1018781

TUBE ASSY.

8 PORT MANIFOLD WITH COVER 2 "

1шт.

24

1018780

TUBE ASSY.

8 PORT MANIFOLD WITHOUT COVER 2 "

1шт.

24

1025569

TUBE ASSY.

9 PORT MANIFOLD WITH COVER 2 "

1шт.

24

1026349

TUBE ASSY.

9 PORT MANIFOLD WITHOUT COVER 2 "

1шт.

24

1026351

TUBE ASSY.

10 PORT MANIFOLD WITH COVER 2 "

1шт.

24

1026353

TUBE ASSY.

10 PORT MANIFOLD WITHOUT COVER 2 "

1шт.

24

1013163

TUBE ASSY.

3 PORT MANIFOLD WITH COVER 2 1/2 "

1шт.

24

1013167

TUBE ASSY.

3 PORT MANIFOLD WITHOUT COVER 2 1/2 "

1шт.

24

1012427

MANIFOLD

COVER PRIMARY 4 PORT 2 1/2"

1шт.

24

1012428

COVER

4 PORT MANIFOLD WITHOUT COVER 2 1/2 "

1шт.

24

1013164

MANIFOLD VALVE

5 PORT MANIFOLD WITH COVER 2 1/2 "

1шт.

24

1013168

COVER

5 PORT MANIFOLD WITHOUT COVER 2 1/2 "

1шт.

24

1013165

COVER

6 PORT MANIFOLD 2 1/2 "

1шт.

24

1013169

COVER

6 PORT MANIFOLD WITHOUT COVER 2 1/2 "

1шт.

24

1023326

COVER

7 PORT MANIFOLD 2 1/2 "

1шт.

24

1023325

MANIFOLD

7 PORT MANIFOLD WITHOUT COVER 2 1/2 "

1шт.

25

1016485

COVER

(1" - 8, 13 port), (1 1/2" - 9 port) (2" - 7, 8, 9 port) 2 1/2 "

1шт.

25

1013190

COVER

(1" - 14 port), (1 1/2" - 5 port) (2" - 10 port), (2 1/2" 5, 7 port)

1шт.

25

1013039

COVER

MANIFLD PRIMARY 9 OD 2 1/2 " PORTS

1шт.

24

1021266

TUBE ASSY.

12 PORT MANIFOLD WITH COVER SUPER BELL 1 "

1шт.

24

1026330

TUBE ASSY.

12 PORT MANIFOLD WITHOUT COVER SUPER BELL 1 "

1шт.

25

1015860

COVER

12 port SUPER BELL 1 "

1шт.

24

1021016

TUBE ASSY.

16 PORT MANIFOLD WITH COVER SUPER BELL 1 "

1шт.

24

1026332

TUBE ASSY.

16 PORT MANIFOLD WITHOUT COVER SUPER BELL 1 "

1шт.

25

1017918

COVER

16 port SUPER BELL 1 "

1шт.

24

1017914

MANIFOLD

17 PORT MANIFOLD WITH COVER SUPER BELL 1 "

1шт.

24

1017908

TUBE ASSY.

17 PORT MANIFOLD WITHOUT COVER SUPER BELL 1 "

1шт.

25

1017247

COVER

17 port SUPER BELL 1 "

1шт.

24

1017915

TUBE ASSY.

18 PORT MANIFOLD WITH COVER SUPER BELL 1 "

1шт.

24

1017909

TUBE ASSY.

18 PORT MANIFOLD WITHOUT COVER SUPER BELL 1 "

1шт.

25

1016485

COVER

18 port SUPER BELL 1 "

1шт.

24

1015326

TUBE ASSY.

20 PORT MANIFOLD WITH COVER SUPER BELL 1 "

1шт.

24

1015322

TUBE ASSY.

20 PORT MANIFOLD WITHOUT COVER SUPER BELL 1 "

1шт.

25

1015861

COVER

20 port SUPER BELL 1 "

1шт.

24

1015883

TUBE ASSY.

21 PORT MANIFOLD WITH COVER SUPER BELL 1 "

1шт.

24

1015879

TUBE ASSY.

21 PORT MANIFOLD WITHOUT COVER SUPER BELL 1 "

1шт.

25

1015862

COVER

21 port SUPER BELL 1 "

1шт.

24

1015327

TUBE ASSY.

24 PORT MANIFOLD WITH COVER SUPER BELL 1 "

1шт.

24

1015323

TUBE ASSY.

24 PORT MANIFOLD WITHOUT COVER SUPER BELL 1 "

1шт.

25

1015860

COVER

24 port SUPER BELL 1 "

1шт.

24

1018768

TUBE ASSY.

10 PORT MANIFOLD WITH COVER 1 1/2 "

1шт.

24

1018767

TUBE ASSY.

10 PORT MANIFOLD WITHOUT COVER 1 1/2 "

1шт.

25

1015861

COVER

10 port 1 1/2 "

1шт.

24

1015884

TUBE ASSY.

12 PORT MANIFOLD WITH COVER 1 1/2 "

1шт.

24

1015880

TUBE ASSY.

12 PORT MANIFOLD WITHOUT COVER 1 1/2 "

1шт.

25

1015860

COVER

12 port 1 1/2 "

1шт.

24

1026483

TUBE ASSY.

13 PORT MANIFOLD WITH COVER 1 1/2 "

1шт.

24

1026482

TUBE ASSY.

13 PORT MANIFOLD WITHOUT COVER 1 1/2 "

1шт.

25

1015862

COVER

13 port 1 1/2 "

1шт.

24

1026333

TUBE ASSY.

14 PORT MANIFOLD WITH COVER 1 1/2 "

1шт.

24

1023256

TUBE ASSY.

14 PORT MANIFOLD WITHOUT COVER 1 1/2 "

1шт.

25

1016485

COVER

14 port 1 1/2 "

1шт.

24

1026335

TUBE ASSY.

15 PORT MANIFOLD WITH COVER 1 1/2 "

1шт.

24

1026334

TUBE ASSY.

15 PORT MANIFOLD WITHOUT COVER 1 1/2 "

1шт.

25

1015862

COVER

15 port 1 1/2 "

1шт.

24

1017913

TUBE ASSY.

16 PORT MANIFOLD WITH COVER 1 1/2 "

1шт.

24

1017907

TUBE ASSY.

16 PORT MANIFOLD WITHOUT COVER 1 1/2 "

1шт.

25

1017918

COVER

16 port 1 1/2 "

1шт.

24

1030883

TUBE ASSY.

8 PORT MANIFOLD WITH COVER 2 "

1шт.

24

1030884

TUBE ASSY.

8 PORT MANIFOLD WITHOUT COVER 2 "

1шт.

25

1015860

COVER

8 port 2 "

1шт.

24

1030612

TUBE ASSY.

11 PORT MANIFOLD WITH COVER 2 "

1шт.

24

1030611

TUBE ASSY.

11 PORT MANIFOLD WITHOUT COVER 2 "

1шт.

25

1030613

TUBE ASSY.

COVER, 11 port 2 "

1шт.

24

1030489

TUBE ASSY.

12 PORT MANIFOLD WITH COVER 2 "

1шт.

24

1030488

TUBE ASSY.

12 PORT MANIFOLD WITHOUT COVER 2 "

1шт.

25

1015860

COVER

12 port 2 "

1шт.

Выбрано товаров: 135
