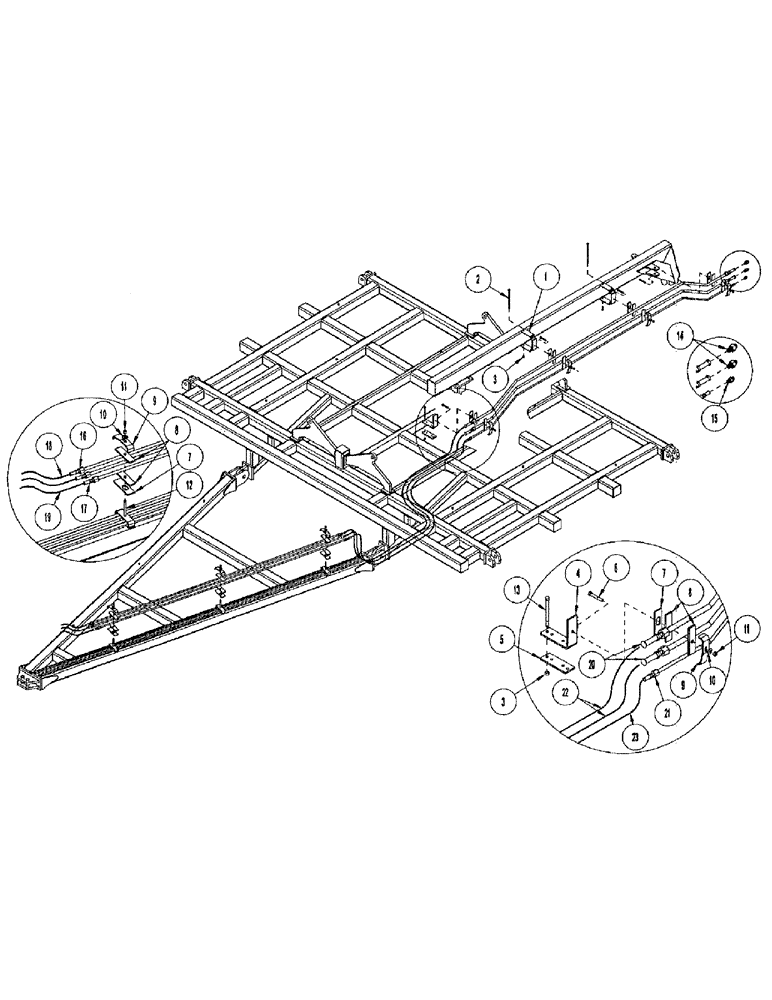

Запчасти Case IH CONCORD (B86) - HYDRAULICS, TANK TO TRACTOR

1

1026126

BAR

-CLAMP

2шт.

2

413-6112

BOLT,Hex, 3/8" - 16 x 7", Gr 5

.375 X 7 UNC GR5 YZD

2шт.

3

425-106

NUT,3/8"-16, Cl 5

8шт.

4

1026124

SUPPORT

BRACKET-L

1шт.

5

1026123

BAR

BOLTING

1шт.

6

113-250

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5, Full Thd

4шт.

7

1026713

CLAMP

BACKING

1шт.

8

1026714

ISOLATOR

NEOPRENE .25 TK PLN

1шт.

9

1026712

CLAMP

5.00

1шт.

10

1013043

WASHER

FLAT: SAE .38 NP

1шт.

11

232-1446

NUT,3/8"-16, GC

NUT, LOCK, 3/8"-16, GC

1шт.

12

1026677

STUD

.38X3.25 NC GRD ZP

1шт.

13

413-680

BOLT,Hex, 3/8" - 16 x 5", Gr 5

2шт.

14

218-446

HYD CONNECTOR,1-1/16" - 12 Male JIC x 3/4" - 14 Male NPTF

FIT TMK#2404-12-12

2шт.

15

218-456

HYD CONNECTOR,3/4" - 16 Male JIC x 1/2" - 14 Male NPTF

FTG TMK#2404-8-8

1шт.

16

1026745

TUBE,0.75" Diameter, 108" Length

ASSY .75 X 108 YZD

2шт.

17

1026743

HYD TUBE,0.5" Diameter, 108" Length

ASSY .5 X 108 YZD

1шт.

18

1018134

HYDRAULIC HOSE

HYD .75 X 96 FL

2шт.

19

1018133

HYDRAULIC HOSE

HYD .375 X 96 FL

1шт.

20

1026113

HYD TUBE,3454 mm Length

ASSY-TUBE .75

2шт.

21

1026112

HYD TUBE,3454 mm Length

ASSY-TUBE: .50

1шт.

22

1024361

HYDRAULIC HOSE

HOSE HYD .75 X 180 FL

2шт.

23

1024362

HOSE ASSY.

HOSE .38 x 180-8 JICM both

1шт.
