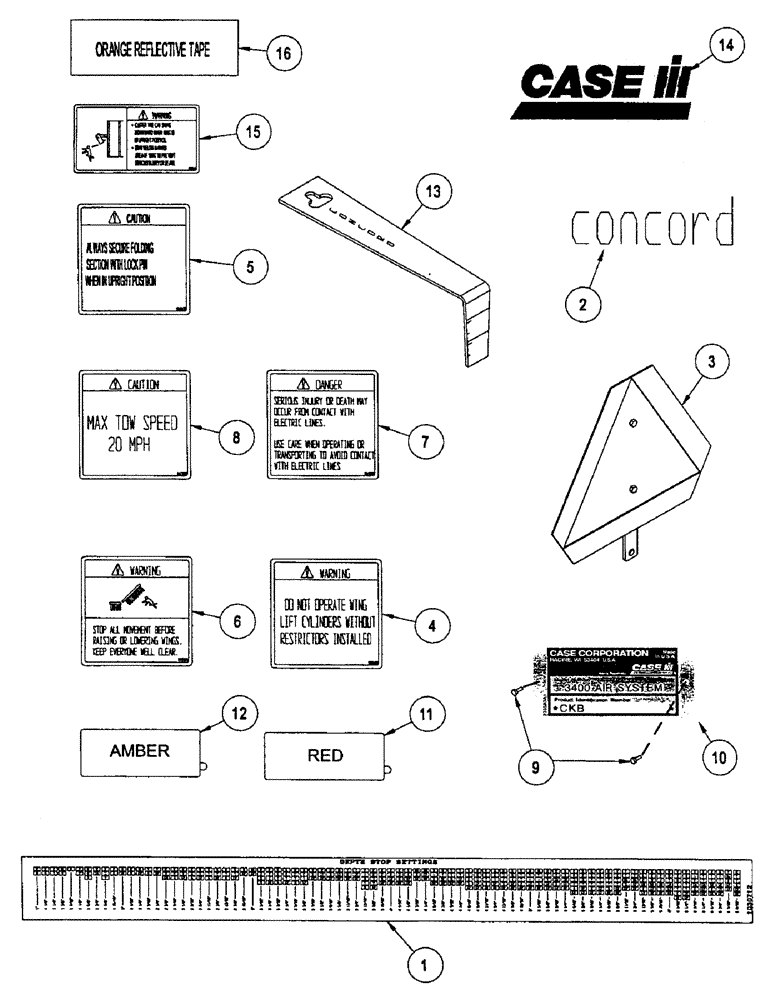

Запчасти Case IH CONCORD (B70) - DECALS AND DEPTH CONTROL GAUGE

1023110

PACKAGE

KIT DECAL ATD incl. 1-8

1шт.

1

1030712

DECAL

DEPTH STOPS

1шт.

2

1024851

DECAL

-LOGO CONCORD 3.00

2шт.

3

1015760

WARNING SIGN

ASSY - SMV sign (1 FPC)

1шт.

BRACKET TO MOUNT OLD STYLE TAIL LIGHT IS PART 1032146. 10/06/97

1шт.

REF#3 THE BRACKET TO ATTACH THIS SMV-OLD STYLE IS 1027025 AND (NEW STYLE IS 1032478 ALSO THE TAIL LIGHT MOUNTS TO IT.)

1шт.

1027025

MOUNTING PARTS

MOUNTING BRACKET

1шт.

1032478

PLATE

SMV/LIGHT BRACKET

1шт.

1032146

PLATE

MOUNTING BRACKET

1шт.

4

1015478

DECAL

WARNING DO NOT OPERATE

2шт.

5

1015477

PRODUCT GRAPHIC

DECAL - caution

2шт.

6

1013590

DECAL

- warning

1шт.

7

1013589

PRODUCT GRAPHIC

DECAL - danger

1шт.

8

1013583

PRODUCT GRAPHIC

DECAL - caution

1шт.

9

1011286

SELF-TAP SCREW,Hex, M10 x 1.5 x 20mm

SCRW METALLIC DRIVE #4X.313 U

2шт.

10

1033289

LARGE PLATE

PLATE - pin: model atd/apd/ser#

1шт.

11

1032182

DECAL

- red reflector #1284374C1

2шт.

12

1032181

DECAL

- amber reflct. #1284365C2

1шт.

13

1026487

GAUGE

-DEPTH 3.00

1шт.

14

192848A2

DECAL

CASE IH 70 MM LOGO

2шт.

15

1027516

DECAL

- warning

2шт.

16

1027518

TAPE

- reflective orange

2шт.
