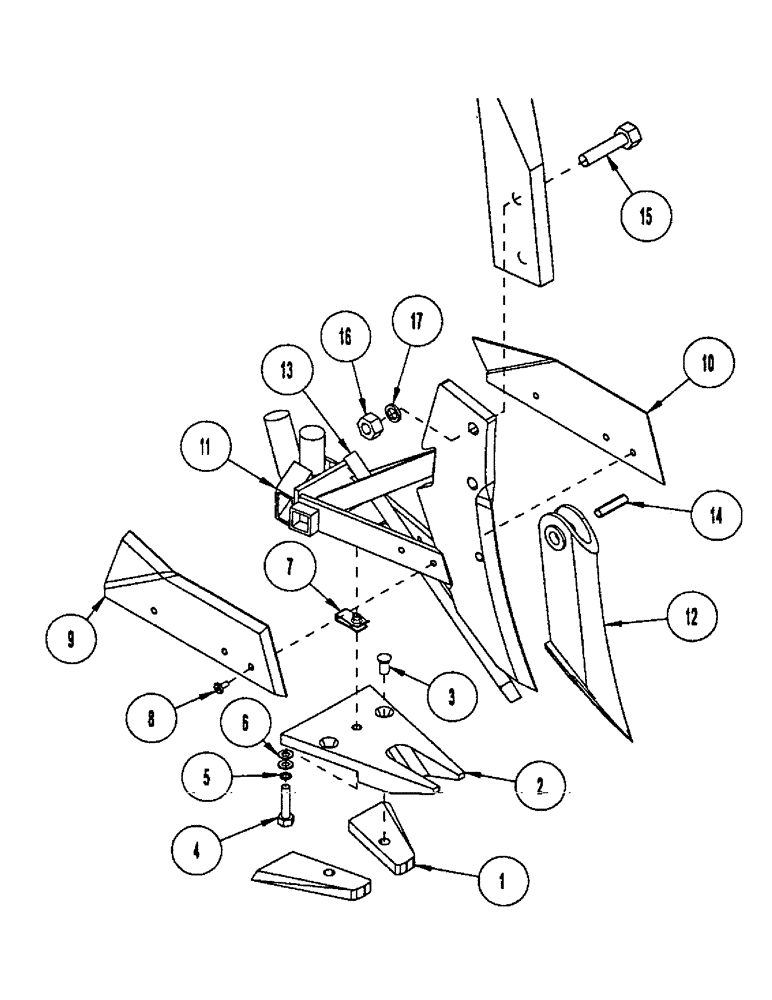

Запчасти Case IH CONCORD (B53) - EDGE-ON ANDERSON OPENER, 12 INCH, LIQUID

1

1030570

LARGE PLATE

INSERT - chrome

2шт.

2

1030417

BASE PLATE

PLATE-BASE A-12 PLN

1шт.

3

1030571

SCREW

- F-H-S-C: .38x1.00 NC

2шт.

4

413-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

1шт.

5

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

6

1011583

WASHER

- flat: .31 ZP

2шт.

7

1030568

NUT

EXTRUDED PANEL .31 PNT

1шт.

8

1030567

RIVET

: 8-8 buttonhead

4шт.

1030572

RIVET

: 8-16 buttonhead

2шт.

9

1030052

SHIELD

- right hand

1шт.

10

1030051

SHIELD

- left hand

1шт.

11

1033109

FRAME

WLDMT - frame AE-12 edge-on liq

1шт.

12

1030569

TIP

CHROME A -EDGE ON PLN

1шт.

13

1030559

TUBE

- liquid-straight

1шт.

14

0100344

SPLIT PIN/SAFETY PIN

PIN - roll: .38 x 1.50 ZP

1шт.

15

413-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

2шт.

16

425-108

NUT,1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

17

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.
