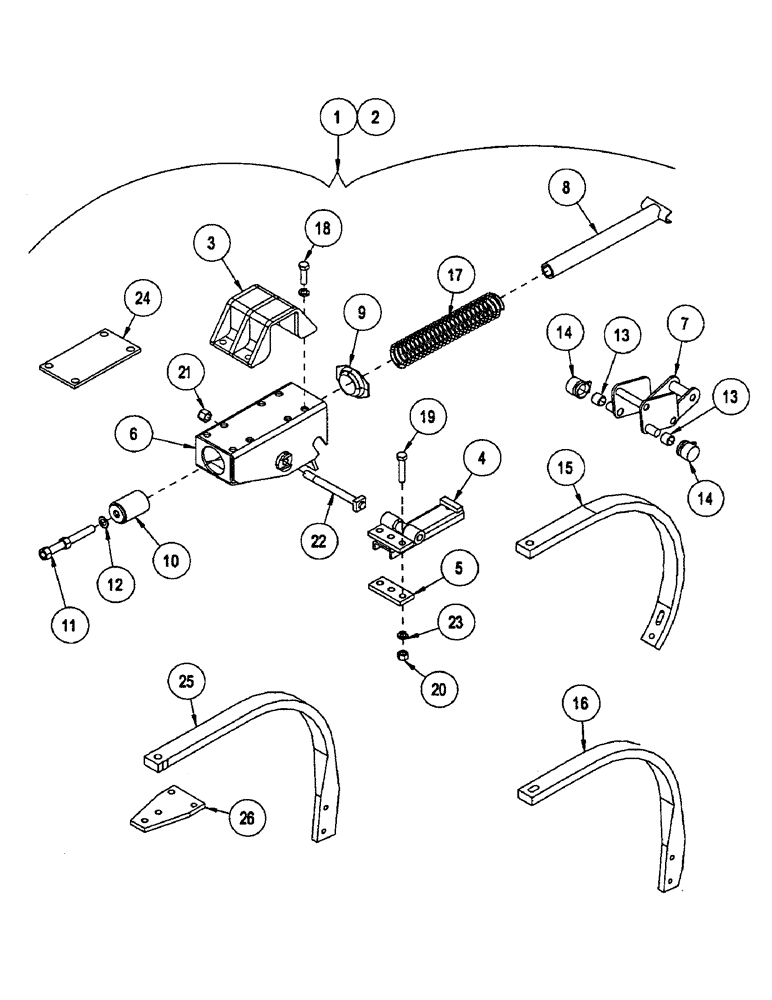

Запчасти Case IH CONCORD (B44) - TRIP SHANK ASSEMBLY

1

1019565

SHANK

ASSY-SHANK TRIP

1шт.

2

1032154

SHANK

TRIP ASSEMBLY - 84 DEGREE

1шт.

3

1019990

SUPPORT

CAST BRACKET PNTD C/W HOLES

1шт.

4

1019991

HOLDER

FOR 1'' SHANK MACHINED

1шт.

5

1019992

BAR

-CLAMPING PNT

1шт.

6

1019993

HOUSING

/W TRIP

1шт.

7

1019994

CAM

/W SHANK

1шт.

8

1019995

GUIDE

WLDMT-SPRING GUIDE PNT

1шт.

9

1019996

CAP

SPRING YZD (CAT.#5100)

1шт.

Only one of each needed for a whole drill so not need one for each shank

1шт.

10

1019927

SPACER

TOOL/W TRIP SHANK

1шт.

Only one of each needed for a whole drill so not need one for each shank

1шт.

11

1017589

STEM

ROD/W ADJUSTMENT .75 OD YZD

1шт.

Only one of each needed for a whole drill so not need one for each shank

1шт.

12

1012634

WASHER

- flat: SAE .75 ZP

1шт.

13

1019997

BUSHING

- spring tension

2шт.

14

1019998

CAM

WLDMT - cam pivot boss

2шт.

15

1021309

SHANK

1 X 2 X 53 W/SL O/TOP

1шт.

16

1030504

SHANK

- side mount

1шт.

17

1019999

SPRING

-C .438WR 2.68 OD 17.75

1шт.

18

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

4шт.

413-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5

4шт.

413-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

.625 X 2.25 UNC GR5 YZD

4шт.

19

413-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 5

3шт.

20

425-1010

NUT,5/8"-11, G5

3шт.

21

232-14412

NUT,3/4"-10, GB

.75 UNC YZD NYLON INS

1шт.

22

1021434

PIN

/W PIVOT .75 OD YZD

1шт.

23

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

7шт.

24

1019908

LARGE PLATE

PLATE-SPACER PNT

1шт.

Used in wheel tracks per Concord Eng.

1шт.

25

1027201

SHANK

- edge on (Service part)

1шт.

26

1027742

PLATE

BAR - clamping (Service part)

1шт.
