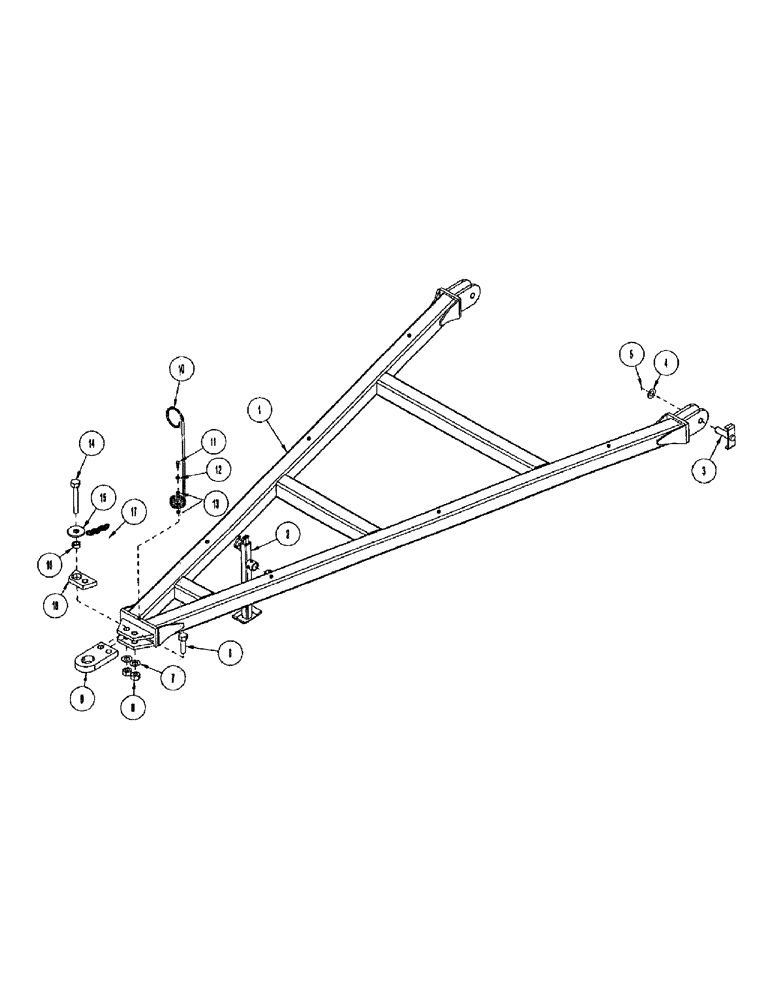

Запчасти Case IH CONCORD (B34) - DRAWPOLE, REAR TOW AIR SYSTEM

1

1018407

HITCH

DRAWPOLE/W PNTD

1шт.

2

1016961

JACK

2000LB X15 W/ MOUNT TUBE

1шт.

3

1017062

PIN

HINGE 1.25 OD YZD

2шт.

4

1016950

WASHER

- flat: SAE 1.25 ZP

2шт.

5

432-1632

COTTER PIN,1/4" x 2"

1/4" x 2"

2шт.

6

426-2072

BOLT,Hex, 1-1/4" - 7 x 4-1/2", Gr 8

1.25 X 4.5 UNC GR8 YZD

1шт.

7

1026732

LOCK WASHER

- lock: 1.25 ZP

2шт.

8

426-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 8

.625 X 1.25 GR8 YZD

2шт.

9

1026730

HITCH

HITCH

1шт.

10

1026727

HOLDER

HYD HOSE

1шт.

11

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

12

492-11038

LOCK WASHER,3/8"

1шт.

13

1011828

WASHER

- flat: .38 ZP

2шт.

14

1032406

BOLT,Hex, 1 1/4" - 7 x 7", Gr 8

1шт.

15

1032404

WASHER

P.WASHER 1.281ID3.75 .375 YZD

1шт.

16

1032403

SPACER

TUBE-SPACER YZD

1шт.

17

GR-457A

CHAIN (AG)

ASSY, SAFETY 60,600 LB (Over 45')

1шт.

17

1032163

CHAIN (AG)

SAFETY 40,400 LB (Under 44')

1шт.

18

1032405

LARGE PLATE

PLATE SPACER 1 TK YZD

1шт.
