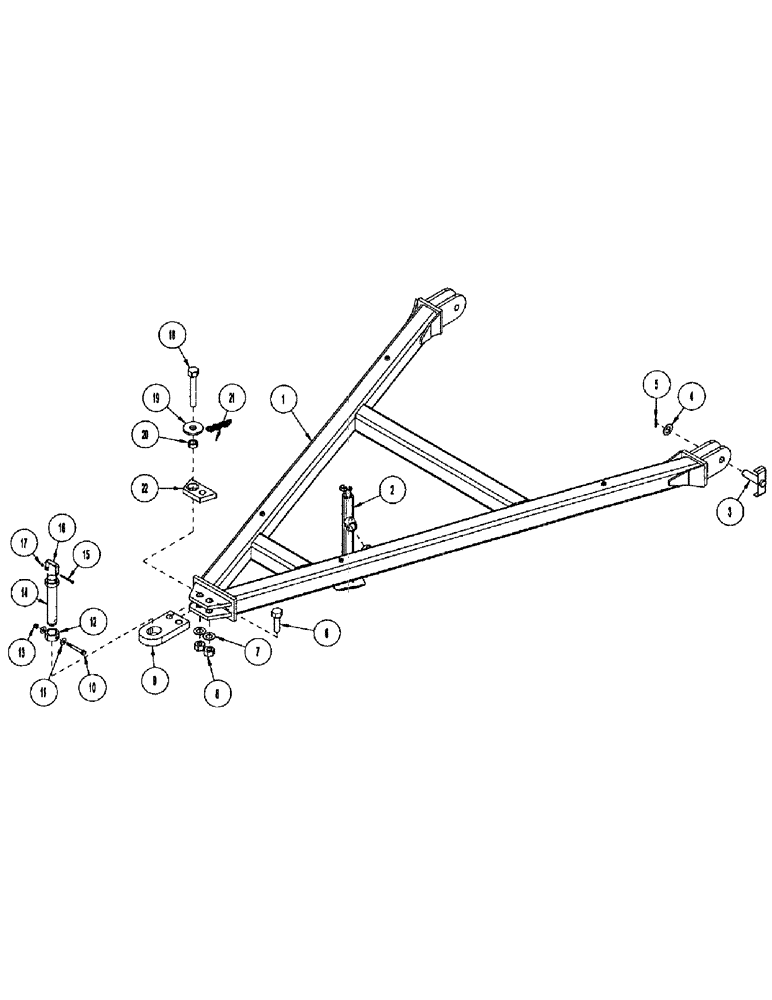

Запчасти Case IH CONCORD (B32) - DRAWPOLE, FRONT TOW AIR SYSTEM

1

1021935

BOOM

DRAWPOLE/W PNTD

1шт.

2

1016961

JACK

2000LB X15 W/ MOUNT TUBE

1шт.

3

1017062

PIN

HINGE 1.25 OD YZD

2шт.

4

1016950

WASHER

- flat: SAE 1.25 ZP

2шт.

5

432-1632

COTTER PIN,1/4" x 2"

1/4" x 2"

2шт.

6

426-2072

BOLT,Hex, 1-1/4" - 7 x 4-1/2", Gr 8

1.25 X 4.5 UNC GR8 YZD

1шт.

7

1026732

LOCK WASHER

- lock: 1.25 ZP

2шт.

8

425-1020

NUT,1 1/4"-7, G5

- hex, 1-1/4 inch NC

2шт.

9

1026730

HITCH

HITCH

1шт.

10

413-864

BOLT,Hex, 1/2" - 13 x 4", Gr 5

.5 X 4 UNC GR5 YZD

1шт.

11

1011584

WASHER

- flat: SAE .50 ZP

2шт.

12

1027967

COLLAR

2.5 OD 1.81 ID YZD

1шт.

13

231-1448

NUT,1/2"-13, GB

.5 UNC GR B YZD NYLON INSERT

1шт.

14

1027969

PIN

/W 1.75 OD C/W HOLE YZD

1шт.

15

413-448

BOLT,Hex, 1/4" - 20 x 3", Gr 5

.25 X 3 UNC GR5 YZD

1шт.

16

1027995

PIN

HANDLE PIN .125 TK X .75W YZD

1шт.

17

1013427

LOCK NUT,1/4"-20, GA

NUT - centerlock: .25 NC gr2 ZP

1шт.

18

1032406

BOLT,Hex, 1 1/4" - 7 x 7", Gr 8

1шт.

19

1032404

WASHER

P.WASHER 1.281ID3.75 .375 YZD

1шт.

20

1032403

SPACER

TUBE-SPACER YZD

1шт.

21

GR-457A

CHAIN (AG)

ASSY, SAFETY 60,600 LB (Over 45')

1шт.

21

1032163

CHAIN (AG)

SAFETY 40,400 LB (Under 44')

1шт.

22

1032405

LARGE PLATE

PLATE SPACER 1 TK YZD

1шт.
