(B30) - DRAWPOLE, TWO SECTION, DISCONTINUED

Запчасти Case IH CONCORD (B30) - DRAWPOLE, TWO SECTION, DISCONTINUED

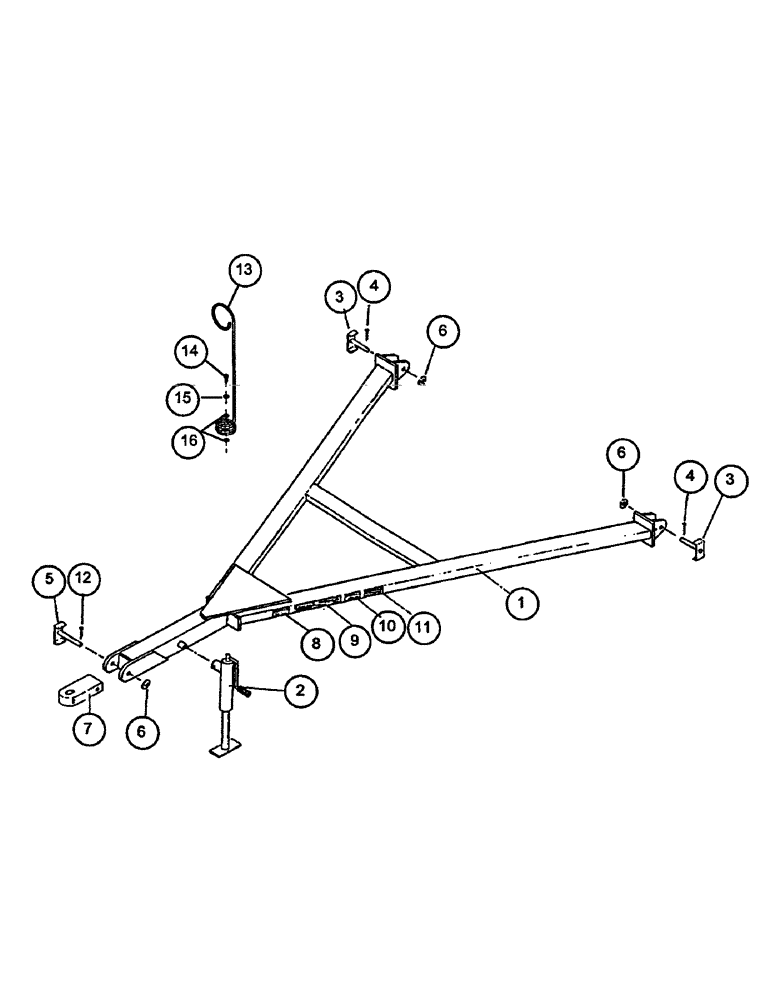

Схема запчастей Case IH CONCORD - (B30) - DRAWPOLE, TWO SECTION, DISCONTINUED
8
4
6
6
9
4
10
16
11
12
5
2
6
1
7
3
14
13
8
15
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

1024632

BOOM

WLDMT - drawpole 2S

1шт.

2

1016961

JACK

2000LB X15 W/ MOUNT TUBE

1шт.

3

1024557

PIN

WLDMT - pin

2шт.

4

432-1640

COTTER PIN,1/4" x 2 1/2"

1/4" x 2 1/2"

2шт.

5

1020629

PIN

WLDMT

1шт.

6

1016663

WASHER

- flat: SAE 1.00 ZP

6шт.

7

1014790

BAR

- hitch

1шт.

8

1015478

DECAL

WARNING DO NOT OPERATE

2шт.

9

1014799

PRODUCT GRAPHIC

DECAL "Concord"

2шт.

10

1013590

DECAL

"Caution"

1шт.

11

1013583

PRODUCT GRAPHIC

DECAL "20 MPH"

1шт.

12

432-1632

COTTER PIN,1/4" x 2"

1/4" x 2"

1шт.

13

1026727

HOLDER

HYD HOSE

1шт.

14

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

15

492-11038

LOCK WASHER,3/8"

1шт.

16

1011828

WASHER

- flat: .38 ZP

2шт.
