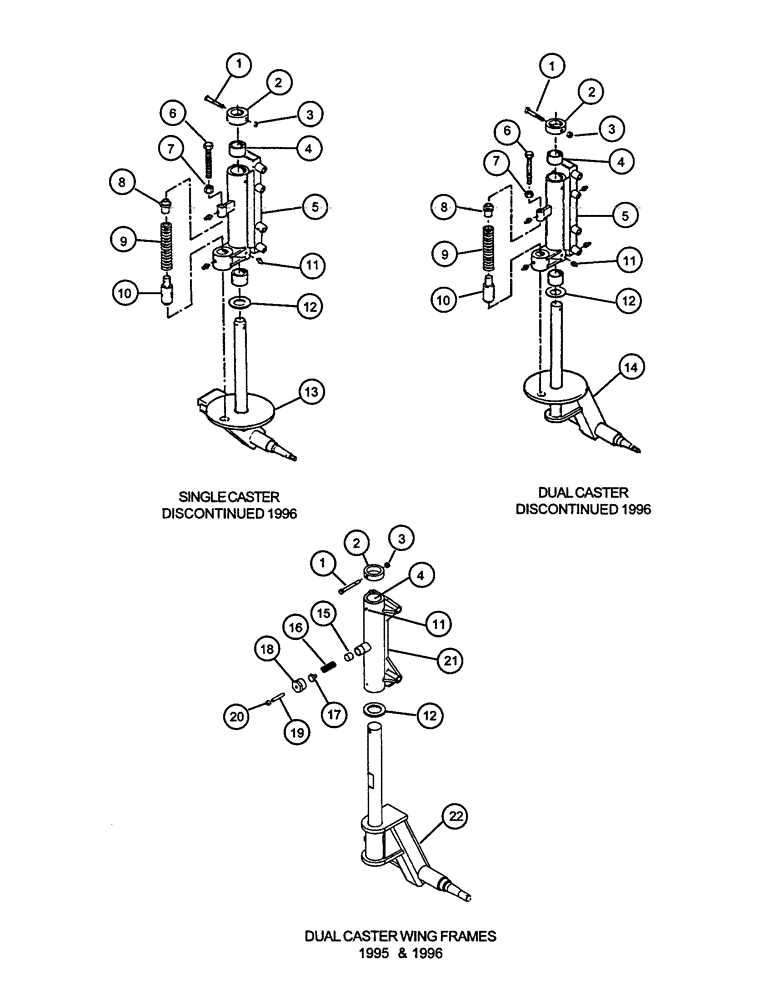

Запчасти Case IH CONCORD (B28) - CASTERS, OLD

1

413-872

BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 5

.5 X 4.5 UNC GR5 YZD

1шт.

2

1014161

RETAINER

-KING PIN

1шт.

3

231-1448

NUT,1/2"-13, GB

.5 UNC GR B YZD NYLON INSERT

1шт.

4

1014163

BRONZE BUSHING,63.96mm ID x 69.95mm OD x 50.8mm L

BUSHING BRONZE 2.75 ODX2.5 ID

2шт.

5

1017574

HOUSING

KING PIN HOUSING ASSEMBLY STAN. (Discontinued)

1шт.

5

1020535

HOUSING

KING PIN HOUSING ASSEMBLY HEAVY (Discontinued)

1шт.

6

1017589

STEM

ROD/W ADJUSTMENT .75 OD YZD

1шт.

7

425-1012

NUT,3/4"-10, G5

1шт.

8

1017569

PIVOT

WLDMT - spring pilot

1шт.

9

1014835

SPRING

-C .468WR 2.28 OD 10.88

1шт.

10

1018553

PIN

- friction

1шт.

11

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper 1/4"-28 NPT x .54" lg

1шт.

12

1014154

THRUST WASHER

2.5 ID 4OD .188 YZD

2шт.

13

1019727

STEERING KNUCKLE

WLDMT - caster single (Discontinued)

1шт.

14

1019726

BODY

CASTER/W DUAL

1шт.

14

1020533

STEERING KNUCKLE

CASTER/W HEAVY

1шт.

15

1025027

RUBBER BLOCK

SNUBBER - brass (2330027-42)

1шт.

16

2330027-74

SPRING

DETENT

1шт.

17

2330027-75

DETENT

1шт.

18

1029548

CAP

- detent

1шт.

19

1025026

BOLT

WLDMT - bolt - hex: .5x2 NC gr8 NP

1шт.

20

425-108

NUT,1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

21

1029560

HOUSING

ASSY - king pin housing - standard (Discontinued)

1шт.

21

1029563

HOUSING

ASSY - king pin housing - heavy duty (Discontinued)

1шт.

22

1029662

STEERING KNUCKLE

DUAL CASTER - standard (Discontinued)

1шт.

22

1029663

STEERING KNUCKLE

DUAL CASTER - heavy duty (Discontinued)

1шт.
