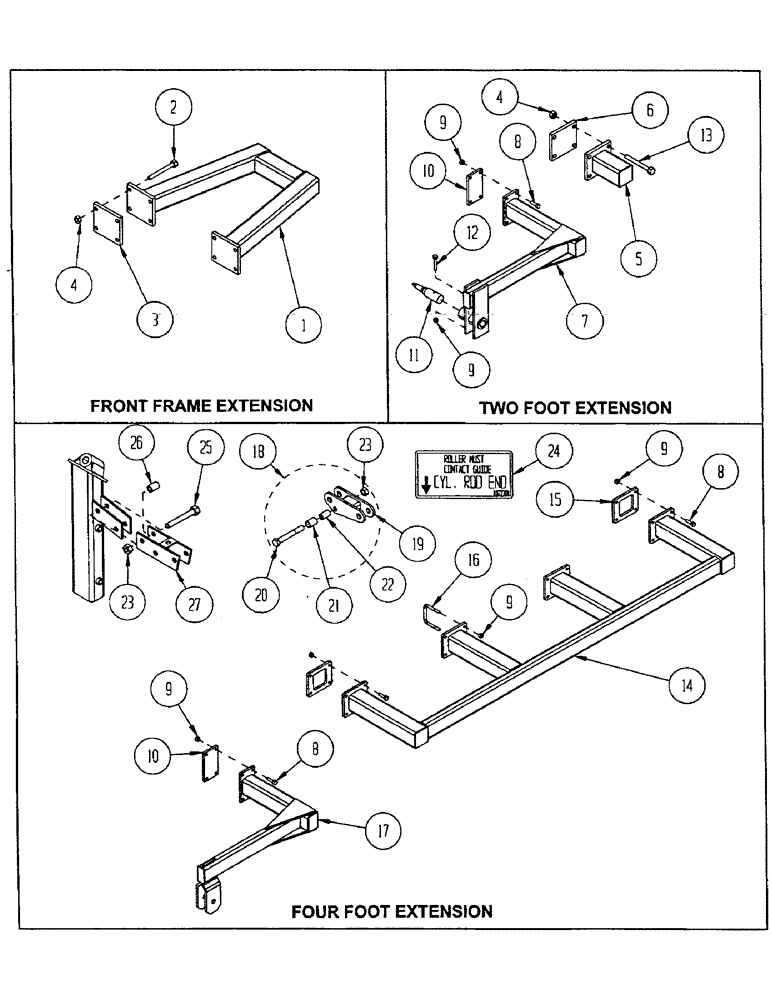

Запчасти Case IH CONCORD (B20) - FRAME EXTENSIONS OPTIONS

1

1021778

FRAME

WLDMT - frame - extension

1шт.

2

413-12112

BOLT,Hex, 3/4" - 10 x 7", Gr 5

-3/4-10 X 7 GR5 ZND

12шт.

3

1014919

PLATE

BOLT .75 TK

2шт.

4

232-14412

NUT,3/4"-10, GB

.75 UNC YZD NYLON INS

12шт.

5

1021780

EXTENSION

STUB/W PNT

1шт.

6

1018793

LARGE PLATE

PLATE BOLTING .75 TK PNTD

1шт.

7

1027717

STRUT

WLDMT - strut single RH 10.00

1шт.

7

1027716

STRUT

WLDMT - strut single LH 10.00

1шт.

8

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

8шт.

9

231-1448

NUT,1/2"-13, GB

.5 UNC GR B YZD NYLON INSERT

10шт.

10

1024965

PLATE

BOLTING .5 TK PNTD

2шт.

11

1025232

SPINDLE

S411- 1.63 X 9

2шт.

12

413-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

.5 X 3.5 UNC GR5 YZD

2шт.

13

413-1272

BOLT,Hex, 3/4" - 10 x 4-1/2", Gr 5

.75 X 4.5 UNC GR5 YZD

8шт.

14

1032330

SUPPORT

WLDMT - wing extension

2шт.

15

1032292

LARGE PLATE

PLATE - bolting

4шт.

16

1032294

U-BOLT

BOLT-U: .50 x 4.53 x 4.00 ZP

4шт.

16

1016523

BOLT

U .50 X 4.53 X 3.

8шт.

17

1030340

SUPPORT

WLDMT - gang extension

1шт.

17

1030339

SUPPORT

WLDMT - gang extension

1шт.

WING FOLD: 77 degree 4010 5 plex

1шт.

18

1032343

FRAME

ASSY - wing lift cylinder link

2шт.

18

1032342

FRAME

ASSY - wing lift cylinder link

2шт.

19

1032341

FRAME

WLDMT - link

1шт.

20

413-16120

BOLT,Hex, 1" - 8 x 7-1/2", Gr 5

1 X 7.5 UNC GR5 YZD

1шт.

21

1027673

TUBE,32.56 mm ID, 38.1 mm OD

ROLLER 1.5 OD YZD

1шт.

22

1027674

TUBE

SPACER

1шт.

23

232-14416

NUT,1"-8, GC

LOCK 1 UNC GR B YZD NYL LK

1шт.

24

1027701

DECAL

WING LINK

1шт.

25

413-1688

BOLT,Hex, 1" - 8 x 5-1/2", Gr 5

1-8 X 5-1/2 GRADE 5 ZND

4шт.

26

1027776

SPACER

TUBE

4шт.

27

1032340

FRAME

WLDMT - lock extension

2шт.
