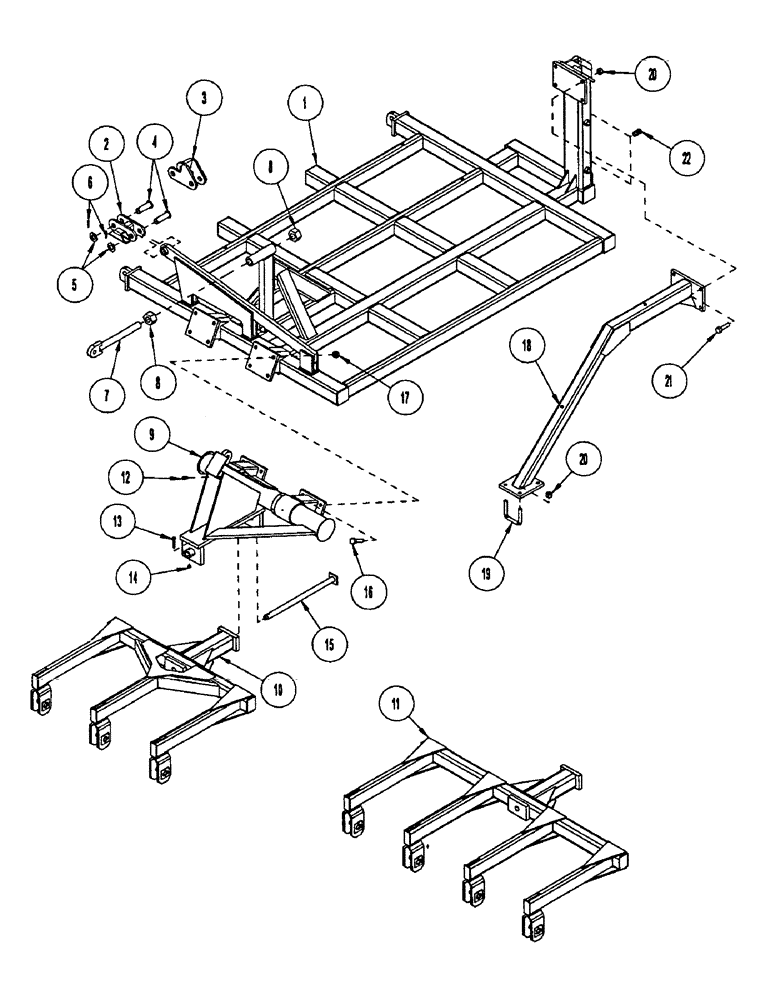

Запчасти Case IH CONCORD (B16) - WING FRAMES WITH ROCKSHAFT AND WHEEL GANGS, FIVE SECTION OUTER

1

1030510

FRAME

WLDMT - wing outer RH: AT4-5010

1шт.

1

1030509

FRAME

WLDMT - wing outer LH: AT4-5010

1шт.

1

1020746

FRAME

WLDMT - wing RH outer 4710-4R

1шт.

1

1020745

FRAME

WLDMT - wing LH outer 4710-4R

1шт.

1

1027370

FRAME

/W WING OUT RH 4010 4R/5

1шт.

1

1027369

FRAME

/W WING OUT LH 4010 4R/5

1шт.

2

1019773

LINK

/W PNT - 4010 5 plex

2шт.

3

1020970

LINK

WLDMT - LH link - 4710, 5010

1шт.

3

1020969

LINK

WLDMT - RH link - 4710, 5010

1шт.

4

1025608

PIN

/W CYL LINK 1.25 OD YZD

4шт.

5

1016950

WASHER

- flat: SAE 1.25 ZP

4шт.

6

432-1632

COTTER PIN,1/4" x 2"

1/4" x 2"

4шт.

7

1017157

ADJUSTMENT ROD

ROD/W ADJUSTMENT 1.5 OD

2шт.

8

425-1024

NUT,1 1/2"-6, G5

1.5 UNC GR5 YZD

4шт.

9

1018576

ROCKSHAFT

WING PNTD

2шт.

9

1017838

ROCKSHAFT

/W WING PNTD 4010 5 plex

2шт.

9

1021086

ROCKSHAFT

/W RH PNTD - 4710

1шт.

9

1021085

HYD ROCKSHAFT

ROCKSHAFT/W LH PNTD - 4710

1шт.

10

1029697

FRAME

GANG/W WHEEL 10'' PNTD - 4010 5 plex, 4710

2шт.

11

1029696

FRAME

GANG/W WHEEL 10'' PNTD - 5010

2шт.

12

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper 1/4"-28 NPT x .54" lg

4шт.

13

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

.375 X 2.5 UNC GR5 YZD

2шт.

14

232-1446

NUT,3/8"-16, GC

NUT, LOCK, 3/8"-16, GC

2шт.

15

1017002

PIN

/W PIVOT 1.250 OD YZD

2шт.

16

413-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

Hex, 3/4"-10 x 2-1/2", G5

16шт.

17

232-14412

NUT,3/4"-10, GB

.75 UNC YZD NYLON INS

16шт.

18

1027655

BRACKET

SUPPORT/W WINGTOWER PNT - 4010 5 plex only

2шт.

19

1018629

U-BOLT

.75 4.031W 5.625D

4шт.

20

232-14412

NUT,3/4"-10, GB

.75 UNC YZD NYLON INS

16шт.

21

413-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 5

.75 X 3 UNC GR5 YZD

8шт.

22

219-3

LUBE NIPPLE,1/8" - 27 NPTF

STR .125NPT .75LG

4шт.
