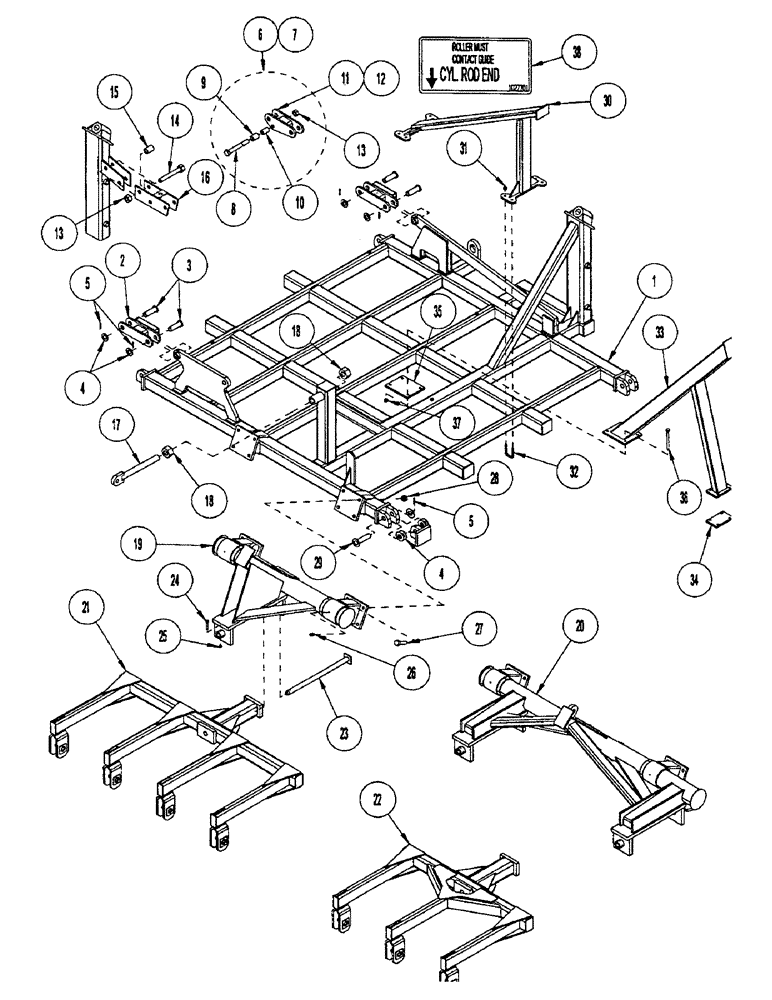

Запчасти Case IH CONCORD (B14) - WING FRAME WITH ROCKSHAFT AND WHEEL GANGS, FIVE SECTION INNER

1

1032268

FRAME ASSY

WLDMT - wing inner RH AT4-5010

1шт.

1

1032267

FRAME ASSY

WLDMT - wing inner LH AT4-5010

1шт.

1

1020766

FRAME

WLDMT - wing RH inner 4710-4R

1шт.

1

1020765

FRAME

WLDMT - wing LH inner 4710-4R

1шт.

1

1027365

FRAME

/W INNERW RH 4010 PNTD

1шт.

1

1027364

FRAME

/W INNERW LH 4010 PNTD

1шт.

2

1020938

LINK

WLDMT - link

4шт.

3

1025608

PIN

/W CYL LINK 1.25 OD YZD

8шт.

4

1016950

WASHER

- flat: SAE 1.25 ZP

28шт.

5

432-1632

COTTER PIN,1/4" x 2"

1/4" x 2"

12шт.

WING FOLD: 90 degree 4010 5 plx (Incl. 6, 8-10, 12, 13, 38)

1шт.

6

1027703

LINK

/A WING LIFT 5 PLX (Incl. 8-10, 12, 13, 38) (Shown)

2шт.

6

1027702

LINK

/A WING LIFT 5 PLX (Incl. 8-10, 12, 13, 38) WING FOLD: 80 degree 4010 5 plx (Incl. 7-11, 13-16, 38) (Not Shown)

2шт.

7

1027761

LINK

WING LIFT CYLINDER LH

2шт.

7

1027760

LINK

WING LIFT CYLINDER RH

2шт.

8

413-16120

BOLT,Hex, 1" - 8 x 7-1/2", Gr 5

1 X 7.5 UNC GR5 YZD

1шт.

9

1027673

TUBE,32.56 mm ID, 38.1 mm OD

ROLLER 1.5 OD YZD

1шт.

10

1027674

TUBE

SPACER

1шт.

11

1027759

LINK

PNT

1шт.

12

1027663

LINK

/W PNT

1шт.

13

232-14416

NUT,1"-8, GC

LOCK 1 UNC GR B YZD NYL LK

1шт.

14

413-1688

BOLT,Hex, 1" - 8 x 5-1/2", Gr 5

1-8 X 5-1/2 GRADE 5 ZND

4шт.

15

1027776

SPACER

TUBE

4шт.

16

1027777

EXTENSION

WLDMT - lock extension

2шт.

17

1017157

ADJUSTMENT ROD

ROD/W ADJUSTMENT 1.5 OD

2шт.

18

425-1024

NUT,1 1/2"-6, G5

1.5 UNC GR5 YZD

4шт.

19

1018576

ROCKSHAFT

WING PNTD

2шт.

20

1021086

ROCKSHAFT

/W RH PNTD - 4710, 5010

1шт.

20

1021085

HYD ROCKSHAFT

ROCKSHAFT/W LH PNTD - 4710, 5010

1шт.

21

1029696

FRAME

GANG/W WHEEL 10'' PNTD 4010 5 plex

2шт.

22

1029697

FRAME

GANG/W WHEEL 10'' PNTD 4710, 5010

4шт.

23

1017002

PIN

/W PIVOT 1.250 OD YZD

1шт.

24

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

.375 X 2.5 UNC GR5 YZD

1шт.

25

232-1446

NUT,3/8"-16, GC

NUT, LOCK, 3/8"-16, GC

1шт.

26

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper 1/4"-28 NPT x .54" lg

4шт.

27

413-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

Hex, 3/4"-10 x 2-1/2", G5

1шт.

28

232-14412

NUT,3/4"-10, GB

.75 UNC YZD NYLON INS

1шт.

29

1015235

PIN

1.25 OD HINGE YZD

4шт.

30

1027337

STOP

SUPPORT/W TOWER PNT 4010 5 plex

2шт.

31

231-1448

NUT,1/2"-13, GB

.5 UNC GR B YZD NYLON INSERT

16шт.

32

1027689

U-BOLT

BOLT US .5 2.0W 5.75D

8шт.

33

1020966

STOP

TOWER/W WING STOP PNT - 4710, 5010

2шт.

34

1020961

PLATE

-BOLTING

2шт.

35

1020965

PLATE

BOLTING

2шт.

36

413-896

BOLT,Hex, 1/2" - 13 x 6", Gr 5

.5 X 6 UNC GR5 YZD

12шт.

37

425-108

NUT,1/2" - 13, Gr 5

NUT, 1/2"-13, G5

12шт.

38

1027701

DECAL

WING LINK

1шт.

39

219-3

LUBE NIPPLE,1/8" - 27 NPTF

STR .125NPT .75LG

4шт.
