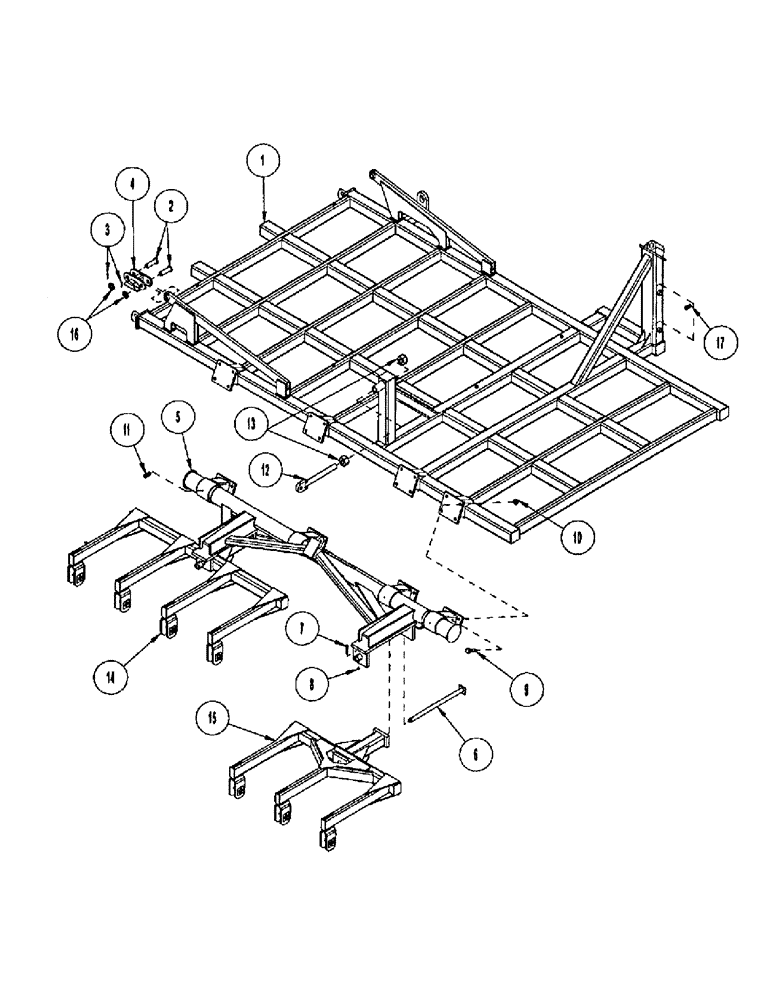

Запчасти Case IH CONCORD (B12) - WING FRAME WITH ROCKSHAFT AND WHEEL GANGS, 3710 THREE RANK, 4010 THREE AND FOUR RANK

1

1017655

FRAME ASSY

WLDMT - wing LH 4010-4R

1шт.

1

1017654

FRAME

WLDMT - wing RH 4010-4R

1шт.

1

1018549

FRAME

WING ASSEMBLY LH 3710-4R

1шт.

1

1018548

FRAME

WING ASSEMBLY RH 3710-4R

1шт.

1

1028404

FRAME

WLDMT - wing RH 4010-3R

1шт.

1

1028403

FRAME

WLDMT - wing LH 4010-3R

1шт.

2

1025608

PIN

/W CYL LINK 1.25 OD YZD

4шт.

3

432-1632

COTTER PIN,1/4" x 2"

1/4" x 2"

4шт.

4

1019773

LINK

/W PNT

2шт.

5

1017672

SHAFT

WLDMT - rockshaft RH (4010 3 & 4 rank)

1шт.

5

1017671

HYD ROCKSHAFT

WLDMT - rockshaft LH (4010 3 & 4 rank)

1шт.

5

1018566

ROCKSHAFT

/W (3710 4 rank)

2шт.

6

1017002

PIN

/W PIVOT 1.250 OD YZD

4шт.

7

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

.375 X 2.5 UNC GR5 YZD

4шт.

8

232-1446

NUT,3/8"-16, GC

NUT, LOCK, 3/8"-16, GC

4шт.

9

413-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

Hex, 3/4"-10 x 2-1/2", G5

32шт.

10

232-14412

NUT,3/4"-10, GB

.75 UNC YZD NYLON INS

32шт.

11

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper 1/4"-28 NPT x .54" lg

8шт.

12

1017157

ADJUSTMENT ROD

ROD/W ADJUSTMENT 1.5 OD

2шт.

13

425-1024

NUT,1 1/2"-6, G5

1.5 UNC GR5 YZD

4шт.

14

1029696

FRAME

GANG/W WHEEL 10'' PNTD (4010 3 & 4 rank)

2шт.

15

1029697

FRAME

GANG/W WHEEL 10'' PNTD (3710 4 rank)

4шт.

15

1029697

FRAME

GANG/W WHEEL 10'' PNTD (4010 3 & 4 rank)

2шт.

16

1016950

WASHER

- flat: SAE 1.25 ZP

4шт.

17

219-3

LUBE NIPPLE,1/8" - 27 NPTF

STR .125NPT .75LG

4шт.
