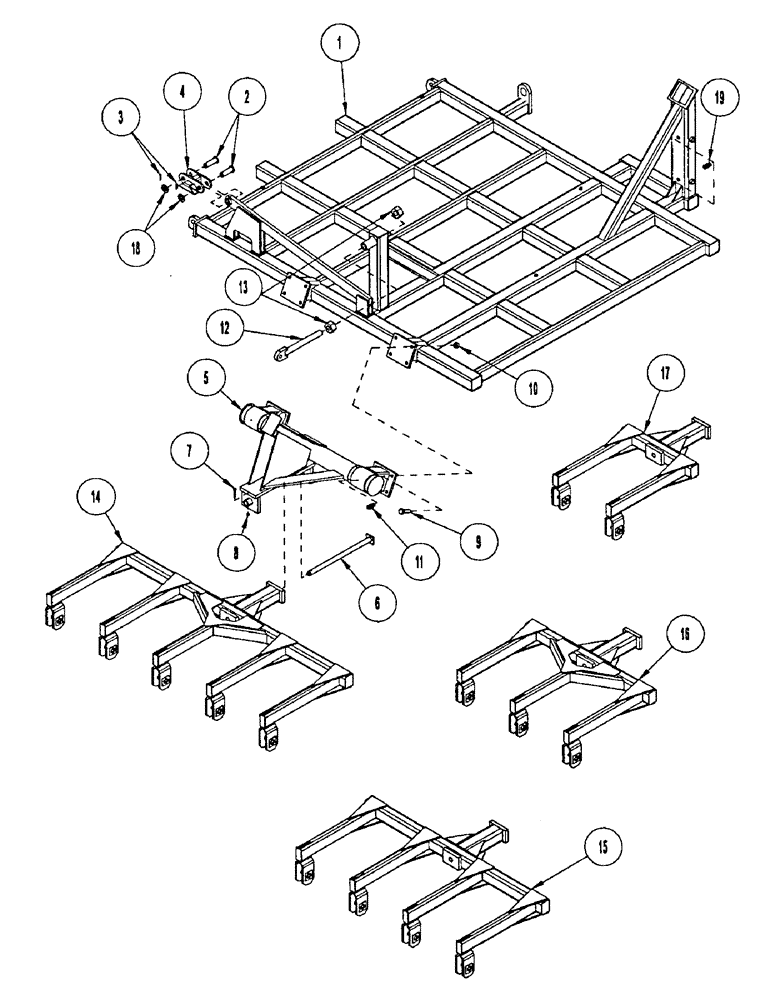

Запчасти Case IH CONCORD (B10) - WING FRAME WITH ROCKSHAFT AND WHEEL GANGS, 2310 THRU 3310 FOUR RANK AND 3010 THREE RANK

1

1018567

FRAME ASSY

WLDMT - wing LH 2310-4R

1шт.

1

1018568

FRAME ASSY

WLDMT - wing RH 2310-4R

1шт.

1

1018569

FRAME

WLDMT - wing LH 2710-4R

1шт.

1

1018570

FRAME

WLDMT - wing RH 2710-4R

1шт.

1

CON1026081

FRAME

/W WING LH 3010-4R PNTD

1шт.

1

1026082

FRAME

/W WING RH 3010-4R PNTD

1шт.

1

1026083

FRAME

/W WING LH 3310-4R PNTD

1шт.

1

1026084

FRAME

/W WING RH 3310-4R PNTD

1шт.

1

1032270

FRAME ASSY

WLDMT - wing AT3-3010 LH SWL

1шт.

1

1032271

FRAME ASSY

WLDMT - wing AT3-3010 RH SWL

1шт.

2

1025608

PIN

/W CYL LINK 1.25 OD YZD

4шт.

3

432-1632

COTTER PIN,1/4" x 2"

1/4" x 2"

4шт.

4

1019773

LINK

/W PNT

2шт.

5

1017838

ROCKSHAFT

/W WING PNTD (2310, 2710, 3310 4 rank)

2шт.

5

1018576

ROCKSHAFT

WING PNTD

2шт.

6

1017002

PIN

/W PIVOT 1.250 OD YZD

2шт.

7

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

.375 X 2.5 UNC GR5 YZD

2шт.

8

232-1446

NUT,3/8"-16, GC

NUT, LOCK, 3/8"-16, GC

2шт.

9

413-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

Hex, 3/4"-10 x 2-1/2", G5

16шт.

10

232-14412

NUT,3/4"-10, GB

.75 UNC YZD NYLON INS

16шт.

11

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper 1/4"-28 NPT x .54" lg

8шт.

12

1017157

ADJUSTMENT ROD

ROD/W ADJUSTMENT 1.5 OD

2шт.

13

425-1024

NUT,1 1/2"-6, G5

1.5 UNC GR5 YZD

4шт.

14

1029695

FRAME

GANG/W WHEEL 10'' PNTD (3310 4 rank)

2шт.

15

1029696

FRAME

GANG/W WHEEL 10'' PNTD (3010 3 & 4 rank)

2шт.

16

1029697

FRAME

GANG/W WHEEL 10'' PNTD (2710 4 rank)

2шт.

17

1029698

FRAME ASSY

GANG/W WHEEL 10 PNTD (2310 4 rank)

2шт.

18

1016950

WASHER

- flat: SAE 1.25 ZP

4шт.

19

219-3

LUBE NIPPLE,1/8" - 27 NPTF

STR .125NPT .75LG

4шт.
