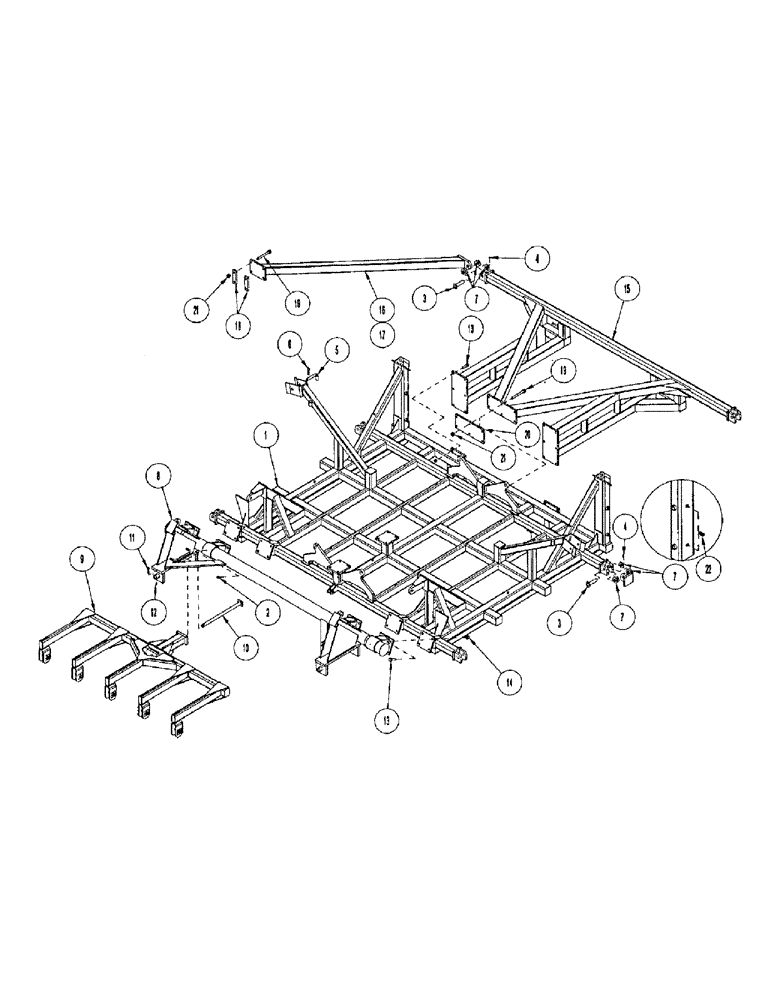

Запчасти Case IH CONCORD (B08) - MAIN FRAME WITH ROCKSHAFT AND WHEEL GANGS, 4710 AND 5010 FOUR RANK

1

1020783

FRAME

WLDMT - main frame: AT4-4710

1шт.

1

1030508

FRAME

WLDMT - main frame: AT4-5010

1шт.

2

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper 1/4"-28 NPT x .54" lg

4шт.

3

1015235

PIN

1.25 OD HINGE YZD

6шт.

4

432-1632

COTTER PIN,1/4" x 2"

1/4" x 2"

6шт.

5

1015330

PIN

1 OD WING LOCK YZD

2шт.

6

0100435

HAIR PIN COTTER,M19

HAIRPIN .148 X 3.313 YZD

2шт.

7

1016950

WASHER

- flat: SAE 1.25 ZP

30шт.

8

1017667

ROCKSHAFT

/W MAIN PNTD

1шт.

9

1029695

FRAME

GANG/W WHEEL 10'' PNTD

2шт.

10

1017002

PIN

/W PIVOT 1.250 OD YZD

2шт.

11

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

.375 X 2.5 UNC GR5 YZD

2шт.

12

232-1446

NUT,3/8"-16, GC

NUT, LOCK, 3/8"-16, GC

2шт.

13

413-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

Hex, 3/4"-10 x 2-1/2", G5

28шт.

14

232-14412

NUT,3/4"-10, GB

.75 UNC YZD NYLON INS

16шт.

15

1024543

FRAME

/W EXTENSION PNTD

1шт.

16

1020928

BRACKET

LH WING PNT

1шт.

17

1020929

BRACKET

RH WING PNT

1шт.

18

1017386

BAR

-BOLTING PNT

4шт.

19

413-12112

BOLT,Hex, 3/4" - 10 x 7", Gr 5

-3/4-10 X 7 GR5 ZND

14шт.

20

1023821

PLATE

-BOLTING .5 TK PNTD

1шт.

21

425-1012

NUT,3/4"-10, G5

14шт.

22

219-3

LUBE NIPPLE,1/8" - 27 NPTF

STR .125NPT .75LG

4шт.
