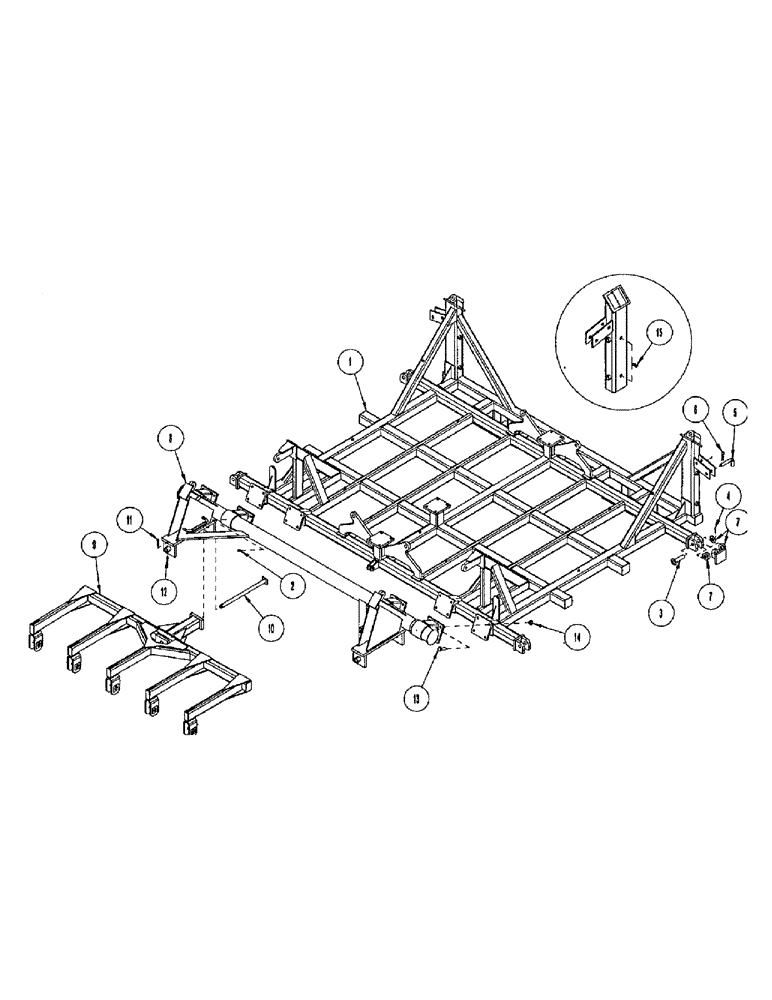

Запчасти Case IH CONCORD (B06) - MAIN FRAME WITH ROCKSHAFT AND WHEEL GANGS, 2310 THRU 4010 FOUR RANK

1

1017661

FRAME

/W MAIN AT4-..10 1WL PNT AT4-2310-3310

1шт.

1

1019597

FRAME

WLDMT - main frame: AT4-3710 & 4010

1шт.

1

1027650

FRAME

/W MAIN 4010 4R 5PLX PNT

1шт.

2

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper 1/4"-28 NPT x .54" lg

4шт.

3

1015235

PIN

1.25 OD HINGE YZD

6шт.

4

432-1632

COTTER PIN,1/4" x 2"

1/4" x 2"

6шт.

5

1026852

PIN

1 OD BENT WING LOCK YZD

2шт.

6

0100435

HAIR PIN COTTER,M19

HAIRPIN .148 X 3.313 YZD

2шт.

7

1016950

WASHER

- flat: SAE 1.25 ZP

20шт.

8

1017667

ROCKSHAFT

/W MAIN PNTD

1шт.

9

1029695

FRAME

GANG/W WHEEL 10'' PNTD

2шт.

10

1017002

PIN

/W PIVOT 1.250 OD YZD

2шт.

11

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

.375 X 2.5 UNC GR5 YZD

2шт.

12

232-1446

NUT,3/8"-16, GC

NUT, LOCK, 3/8"-16, GC

2шт.

13

413-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

Hex, 3/4"-10 x 2-1/2", G5

16шт.

14

232-14412

NUT,3/4"-10, GB

.75 UNC YZD NYLON INS

16шт.

15

219-3

LUBE NIPPLE,1/8" - 27 NPTF

STR .125NPT .75LG

4шт.
