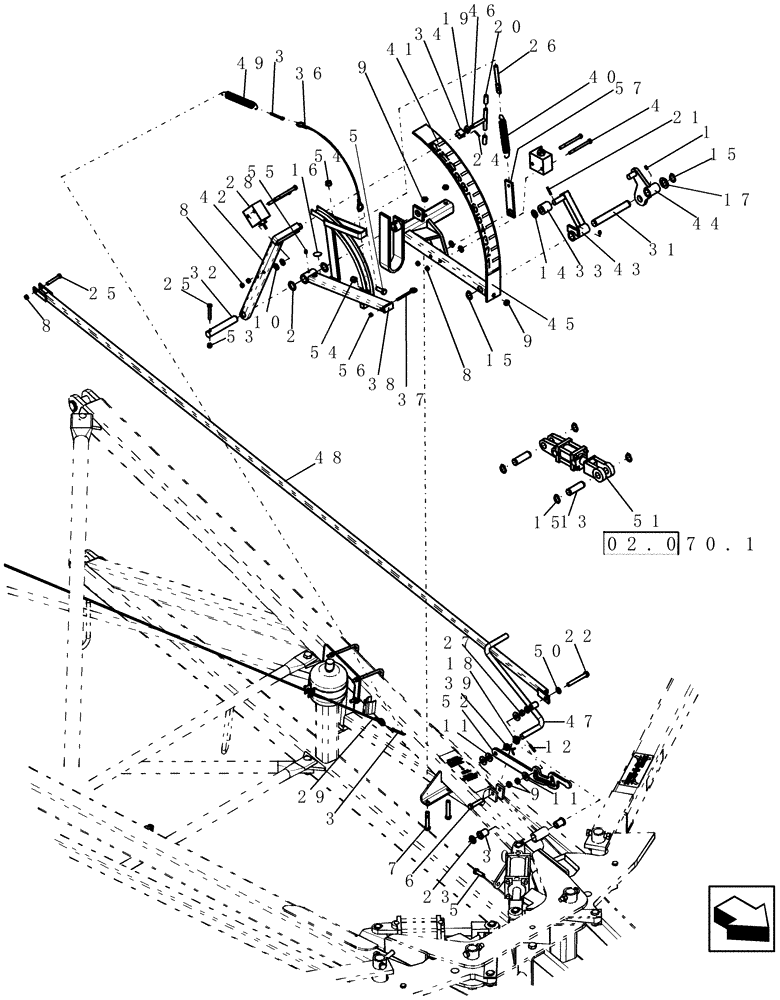

Запчасти Case IH ATX700 (01.042.1) - STOP, DEPTH ASN Y8S003251 (12) - FRAME

1

87414

LUBE NIPPLE,1/4" - 28

6шт.

2

87325444

WASHER,1.02" ID x 1.5" OD x 0.07" Thk

1 1/64" id 1 1/2" 14ga

2шт.

3

88182

COTTER PIN,1/4" OD x 2" L

2шт.

4

86505980

BOLT,Hex, 3/8" - 16 x 4 1/2", Gr 5

4шт.

5

87689

BOLT,1/2"-13 x 1.813" OAL, Gr 5

2шт.

6

87972

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

1шт.

7

87339

BOLT,Hex, 1/2" - 13 x 3", Gr 5

2шт.

8

88902

NUT,3/8"-16

13шт.

9

86992215

LOCK NUT,1/2"-13, GC

14шт.

10

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

4шт.

11

80700

WASHER,0.56" ID x 1.38" OD x 0.11" Thk

7шт.

12

300868

ROLL PIN,6mm OD x 36mm L, Slotted

1шт.

13

3326

PIN

cylinder 1" x 2 7/8" ul hardened with snap rings

6шт.

14

3443

WASHER,0.75" ID x 1.25" OD x 0.07" Thk

3/4" id 14ga

1шт.

15

87019495

SNAP RING,#98, Ext

18шт.

16

6567

DECAL

grease 200 hours

1шт.

17

6669

WASHER,1.06" ID x 1.75" OD x 0.13" Thk

3шт.

18

7643

WASHER

.76" ID x 1.25" OD x 10 GA

1шт.

19

7675

SQUARE NUT

square 1/2"

1шт.

20

419996A1

CAP

vinyl 7/16" x 1 1/2"

2шт.

21

87020816

LOCK PIN,4.76mm OD x 31.75mm L

1шт.

22

88965

BOLT,Hex, 1/2"-13 x 4", G5, Full Thd

1шт.

23

87325968

WASHER,0.76" ID x 1.25" OD x 0.14" Thk

3/4" id x 1 1/4" 10ga

1шт.

24

22152

ROLL PIN

1/8" x 1"

1шт.

25

280259

BOLT,Hex, 3/8" - 16 x 2 1/2", Gr 8

2шт.

26

22668

SPECIAL BOLT

spade 1/2"-13 x 4 1/4"

2шт.

27

87333862

NUT

1/2"-13, GB

1шт.

28

87420159

VALVE

assy limit poppet shoemaker 8126

2шт.

Includes 87420158, 87504753, and 87420157

1шт.

28

87420157

SEAL KIT

shoemaker 5468

2шт.

Not Shown

1шт.

28

87420158

POPPET

without orifice shoemaker 5479

2шт.

Not Shown

1шт.

28

87504753

PLUG

adapter shoemaker 8103

2шт.

Not Shown

1шт.

29

87682242

CABLE

4.76 mm x 3180 mm long

1шт.

30

87502496

FLANGED BEARING,0.75" ID x 1.24" OD x 1.488"

polymer flange

2шт.

31

87540580

PIN

25.4 x 188ul

1шт.

32

87567896

PIN

1" x 5 19/32"ul

1шт.

33

87567897

ROLLER

depth stop

1шт.

34

87682435

CLAMP

special

1шт.

36

87682440

CABLE

4.76 mm x 530 mm long

1шт.

37

87691976

EYEBOLT

1/4" x 4"

1шт.

38

87682447

GAUGE

depth control

1шт.

39

87714922

TORSION SPRING

3.18" wire RH SS

1шт.

40

87505478

TENSION SPRING

7/32" wire 1 1/4" od x 6" long

1шт.

41

87503999

DECAL

depth gauge

1шт.

42

87682248

ARM

adjustable depth stop

1шт.

43

87567887

LEVER

depth stop

1шт.

44

87567889

CRANK

depth stop

1шт.

45

87682441

GAUGE

depth control

1шт.

46

87682436

LOCKING HANDLE

depth lock

1шт.

47

87503821

HANDLE

lockshaft release

1шт.

48

87503824

LINK

tension lockshaft release

1шт.

49

87505478

TENSION SPRING

7/32" wire 1 1/4" od x 6" long

2шт.

50

5868

WASHER,0.5" ID x 1" OD x 0.06" Thk

1/2" id 1" 16ga

2шт.

51

87567768

HYDRAULIC CYLINDER,Double Acting, 28.57mm Rod, 50.8mm Stroke

2" x 2"

1шт.

Refer to 02.070.1

1шт.

52

87697471

LATCH

lockshaft handle

1шт.

53

88902

NUT,3/8"-16

1шт.

54

86992215

LOCK NUT,1/2"-13, GC

2шт.

55

87414

LUBE NIPPLE,1/4" - 28

1шт.

56

8914

LOCK NUT

1/4"-20 stainless steel nylon

1шт.

57

87567883

MOUNTING PLATE

spring mount lower

1шт.
