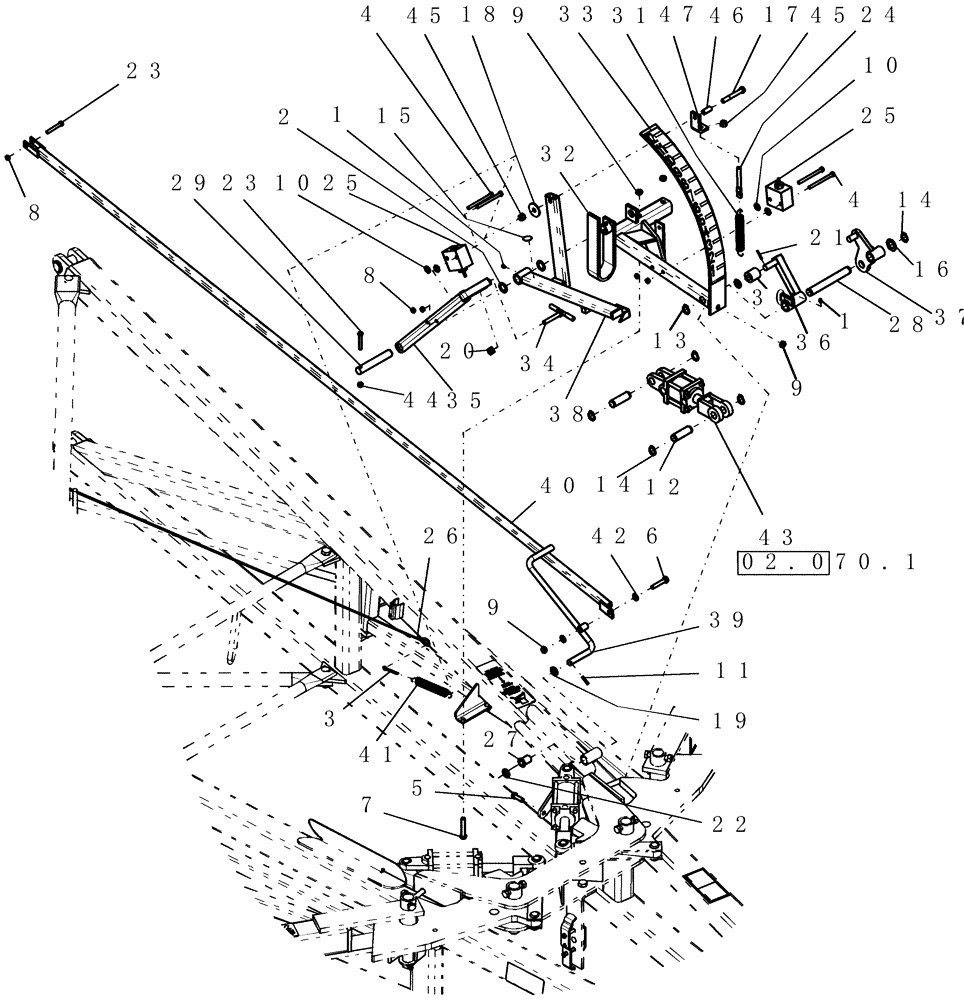

Запчасти Case IH ATX700 (01.040.1) - STOP, DEPTH BSN Y8S003250 (12) - FRAME

1

87414

LUBE NIPPLE,1/4" - 28

7шт.

2

87325444

WASHER,1.02" ID x 1.5" OD x 0.07" Thk

1 1/64" id 1 1/2" 14ga

2шт.

3

88182

COTTER PIN,1/4" OD x 2" L

1шт.

4

86505980

BOLT,Hex, 3/8" - 16 x 4 1/2", Gr 5

4шт.

5

87689

BOLT,1/2"-13 x 1.813" OAL, Gr 5

1шт.

6

87972

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

1шт.

7

87339

BOLT,Hex, 1/2" - 13 x 3", Gr 5

2шт.

8

88902

NUT,3/8"-16

13шт.

9

86992215

LOCK NUT,1/2"-13, GC

11шт.

10

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

4шт.

11

300868

ROLL PIN,6mm OD x 36mm L, Slotted

1шт.

12

3326

PIN

cylinder 1" x 2 7/8" ul hardened with snap rings

6шт.

13

3443

WASHER,0.75" ID x 1.25" OD x 0.07" Thk

3/4" id 14ga

1шт.

14

87019495

SNAP RING,#98, Ext

18шт.

15

6567

DECAL

grease 200 hours

1шт.

16

6669

WASHER,1.06" ID x 1.75" OD x 0.13" Thk

3шт.

17

86505992

BOLT,Hex, 1/2" - 13 x 3 3/4", Gr 5

1шт.

18

7329

WASHER

17/32" id x 2" x 9/64"

1шт.

19

7643

WASHER

.76" ID x 1.25" OD x 10 GA

1шт.

20

7675

SQUARE NUT

square 1/2"

1шт.

21

87020816

LOCK PIN,4.76mm OD x 31.75mm L

1шт.

22

87325968

WASHER,0.76" ID x 1.25" OD x 0.14" Thk

3/4" id x 1 1/4" 10ga

1шт.

23

280259

BOLT,Hex, 3/8" - 16 x 2 1/2", Gr 8

2шт.

24

22668

SPECIAL BOLT

spade 1/2"-13 x 4 1/4"

2шт.

25

87420159

VALVE

2шт.

25

87420158

POPPET

2шт.

25

87504753

PLUG

2шт.

25

87420157

SEAL KIT

2шт.

26

87501922

CABLE

3/16" x 3.43 m with thimble

1шт.

27

87502496

FLANGED BEARING,0.75" ID x 1.24" OD x 1.488"

polymer flange

2шт.

28

87540580

PIN

25.4 x 188ul

1шт.

29

87567896

PIN

1" x 5 19/32"ul

1шт.

30

87567897

ROLLER

depth stop

1шт.

31

87505478

TENSION SPRING

7/32" wire 1 1/4" od x 6" long

1шт.

32

87567520

STOP

frame depth

1шт.

33

87503999

DECAL

depth gauge

1шт.

34

NW-314

SPECIAL BOLT

tee depth stop

1шт.

35

87567525

ARM

adjustable stop

1шт.

36

87567887

LEVER

depth stop

1шт.

37

87567889

CRANK

depth stop

1шт.

38

87565834

ARM

indicator depth stop

1шт.

39

87503821

HANDLE

lockshaft release

1шт.

40

87503824

LINK

tension lockshaft release

1шт.

41

87505478

TENSION SPRING

7/32" wire 1 1/4" od x 6" long

2шт.

42

5868

WASHER,0.5" ID x 1" OD x 0.06" Thk

1/2" id 1" 16ga

2шт.

43

87567768

HYDRAULIC CYLINDER,Double Acting, 28.57mm Rod, 50.8mm Stroke

2" x 2"

1шт.

Refer to 02.070.1

1шт.

44

88902

NUT,3/8"-16

1шт.

45

86992215

LOCK NUT,1/2"-13, GC

2шт.

46

87567899

TUBE SPACER

1шт.

47

87567885

BRACKET

spring mount upper

1шт.
