Запчасти Case IH ATX700 (01.020.1) - HITCH, FRONT LATCH ASSEMBLY BSN Y8S003250 (12) - FRAME

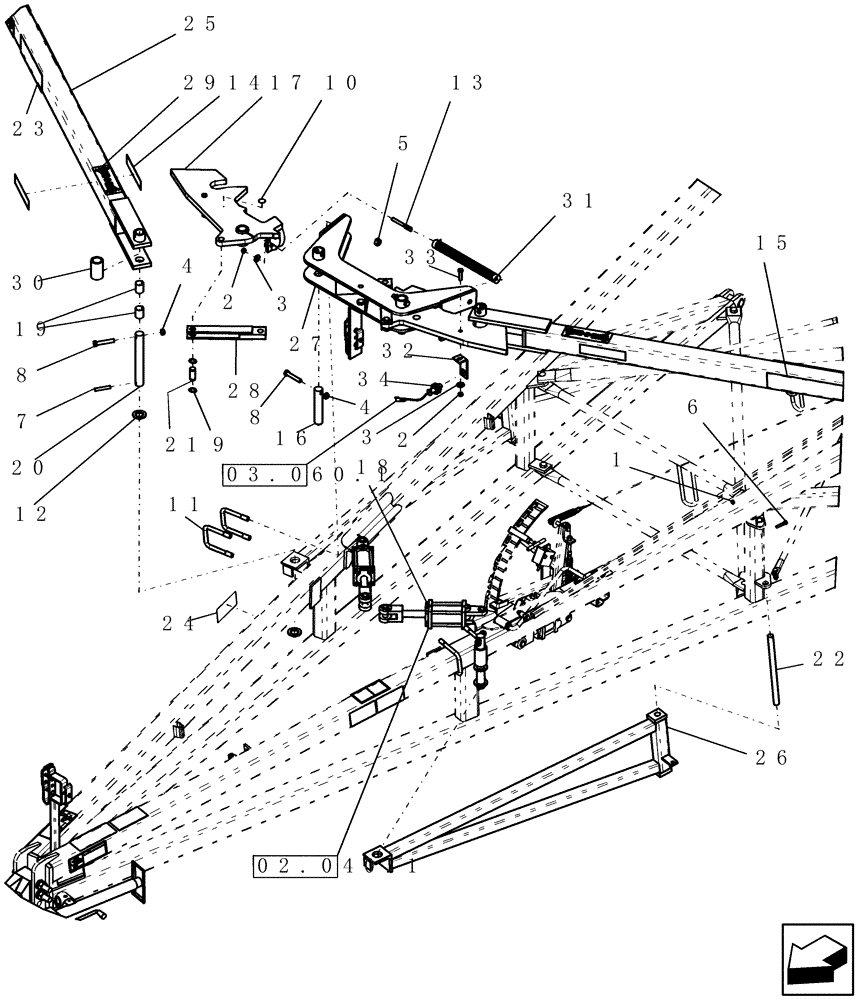

Схема запчастей Case IH ATX700 - (01.020.1) - HITCH, FRONT LATCH ASSEMBLY BSN Y8S003250 (12) - FRAME
16
6
21
27
3
30
13
19
4
24
2
26
7
17
10
14
25
34
23
28
3
8
2
22
20
5
9
31
33
12
29
15
11
32
18
8
1
02.040.1
03.060.1
4

Артикул

Название

Примечание

Количество

1

88902

NUT,3/8"-16

2шт.

2

86992215

LOCK NUT,1/2"-13, GC

2шт.

3

80700

WASHER,0.56" ID x 1.38" OD x 0.11" Thk

2шт.

4

85700693

NUT,5/8" - 11, Gr C

4шт.

5

280375

NUT,3/4"-10, GC

1шт.

6

88436

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.

7

4770

ROLL PIN

1/2" x 3"

2шт.

8

426-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 8

4шт.

9

87019495

SNAP RING,#98, Ext

4шт.

10

6566

DECAL

grease 50 hours

4шт.

11

7818

U-BOLT

us 3/4"-10 x 4 1/32" wide x 5 5/8" deep

4шт.

12

8013

WASHER

1 1/2" id 2 1/2" 1/4"

4шт.

13

22668

SPECIAL BOLT

spade 1/2"-13 x 4 1/4"

2шт.

14

22903

DECAL

retroreflective amber 2" x 9"

8шт.

16

87418605

PIN

38.1 x 171 mm ul

4шт.

17

87503814

LINK

draft latch left

1шт.

Includes 6566

1шт.

17

87503817

LINK

draft latch right

1шт.

Includes 6566

1шт.

18

87419786

HYDRAULIC CYLINDER,Double Acting, 31.75mm Rod, 101.6mm Stroke

3" x 4" 3000 psi no pins

2шт.

Refer to 02.040.1

1шт.

19

87419813

WEAR PLATE

uhmw 50.8 x 114 x .65 mm

4шт.

20

87419850

PIN

38.1 x 256 mm ul

2шт.

21

87420071

PIN

25.4 x 50 ul

2шт.

22

87420495

PIN

25.4 x 404 ul

2шт.

23

87418911

DECAL

ATX700 stripe LH

2шт.

23

87420527

DECAL

ATX700 stripe RH

2шт.

24

87503802

DECAL

fold zone stay clear

2шт.

25

87503805

LINK

draft LH

2шт.

Includes 22903, 87503994, 87418911

1шт.

25

87504072

LINK

draft RH

2шт.

Includes 22903, 87503994, 87420527

1шт.

26

87503808

ARM

fold front hitch LH

1шт.

26

87503811

ARM

fold front hitch RH

1шт.

Not Shown

1шт.

27

87503827

HOUSING

hitch latch

1шт.

28

87503831

ARM

latch release

2шт.

29

87503994

DECAL

attention latches

4шт.

30

87503800

ROLLER

draft link

2шт.

31

87505303

TENSION SPRING

5/16" wire 1 5/64" od x 18" long

1шт.

32

87505118

BRACKET

sensor mount

2шт.

33

9706716

BOLT,Hex, 1/2" - 13 x 2", Gr 5

2шт.

34

87505133

SENSOR

sb m30 x 1 1/2"

2шт.

Refer to 03.060.1

1шт.

Выбрано товаров: 44
