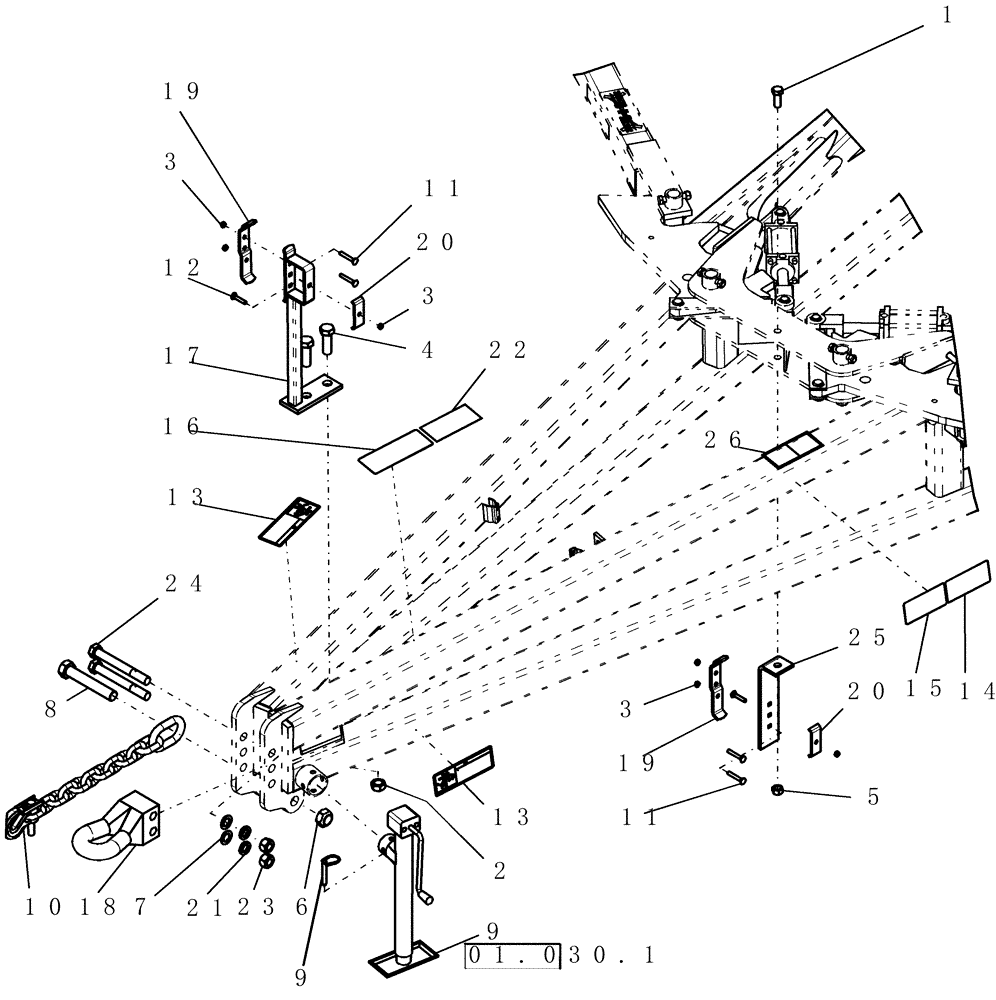

Запчасти Case IH ATX700 (01.010.1) - HITCH, JACK/HOSE HOLDER (12) - FRAME

1

88557

BOLT,Hex, 3/4" - 10 x 2", Gr 5, Full Thd

1шт.

2

280286

NUT,1"-8, GB

2шт.

3

88902

NUT,3/8"-16

6шт.

4

84128

BOLT,Hex, 1" x 3", Gr 5

2шт.

5

280375

NUT,3/4"-10, GC

1шт.

6

86609684

NUT,1 1/4"-7, GB

1шт.

7

6669

WASHER,1.06" ID x 1.75" OD x 0.13" Thk

2шт.

8

87552232

BOLT,Hex, 1 1/4" - 7 x 7 1/2", Gr 5

1шт.

9

7972

JACK

3000 lb x 15" long

1шт.

Refer to 01.030.1

1шт.

10

GR-457A

CHAIN (AG)

assembly, safety 60,600 lb

1шт.

11

434-640

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 2 1/2", Gr 5

4шт.

12

280661

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2", Gr 5

2шт.

13

87503801

CAUTION DECAL

negative hitch weight

2шт.

14

87503802

DECAL

fold zone stay clear

2шт.

15

87503829

DECAL

rollover hazard

1шт.

16

GD-500.77

CAUTION DECAL

hydraulics

1шт.

17

87503842

CARRIER

hydraulic hose

1шт.

18

87506220

HITCH

hitch

1шт.

18

84471082

HITCH

CAT 4,5, Not Shown

1шт.

19

GL-813

CLAMP

hydraulic hose

2шт.

20

CC-106

HOSE CLAMP

for 4 hoses

2шт.

21

87342

LOCK WASHER,25.48mm ID x 42.06mm OD x 6.35mm Thk

2шт.

22

182270A1

WARNING DECAL

Do Not Ride

1шт.

23

86511609

NUT,1"-8, G8

2шт.

24

87020629

BOLT,Hex, 1" - 8 x 8 1/2", Gr 8

2шт.

25

87503838

BRACKET

hydraulic hose carrier

1шт.

26

256147A1

DECAL

read operator manual

1шт.
