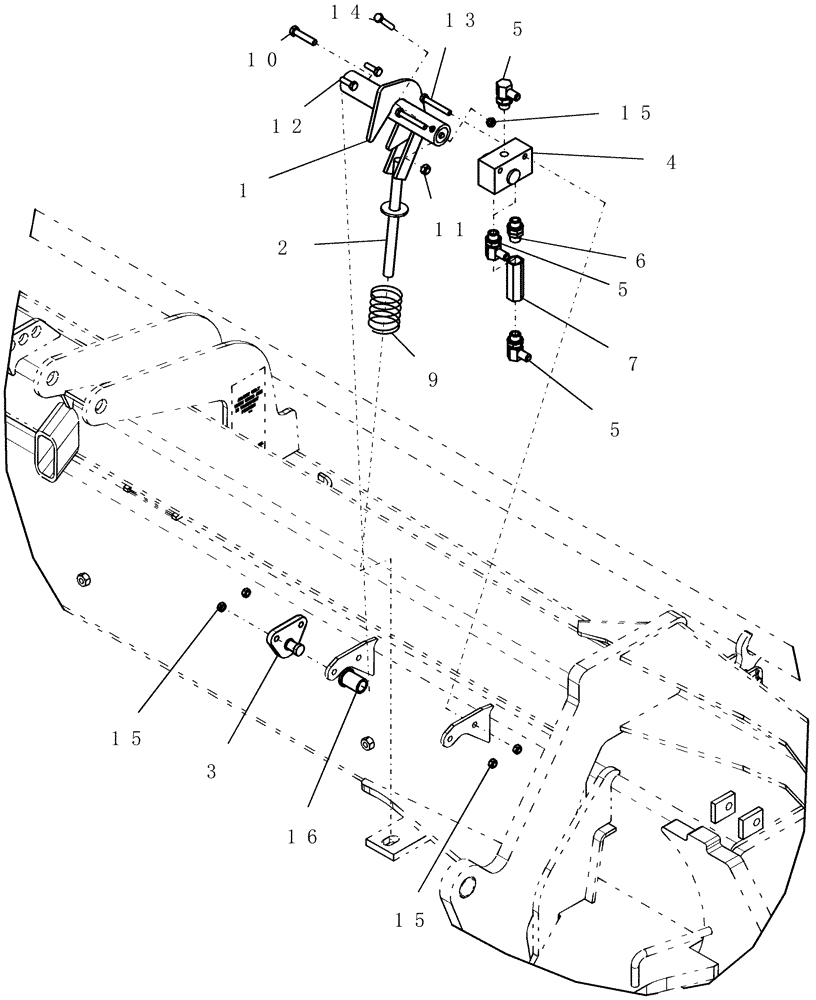

Запчасти Case IH ATX700 (02.120.1) - HYDRAULIC, VALVE - INNER WING (07) - HYDRAULICS

1

87504266

CAM

hydraulic valve

1шт.

2

87504267

GUIDE

valve spring

1шт.

3

87504265

BRACKET

cam pivot

1шт.

4

87502277

HYDRAULIC VALVE

selector single circuit, Shoemaker 8171

1шт.

5

87329788

90 ELBOW,90 Degree, 9/16"-18, 37 Degree x 3/4"-16, O-Ring

3шт.

6

1261010C1

FITTING

stl union 3/4" mb 3/4" mb straight

1шт.

7

22357

CHECK VALVE

1/2"fb 1/2"fb

1шт.

9

87329788

90 ELBOW,90 Degree, 9/16"-18, 37 Degree x 3/4"-16, O-Ring

1шт.

10

9706689

BOLT,Hex, 3/8" - 16 x 1 3/4", Gr 5

1шт.

11

88902

NUT,3/8"-16

1шт.

12

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

2шт.

13

413-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

2шт.

14

9707515

BOLT,Hex, 5/16 - 18" x 1 3/4", Gr 5

1шт.

15

280736

NUT,5/16"-18, GC

4шт.

16

87502496

FLANGED BEARING,0.75" ID x 1.24" OD x 1.488"

polymer flange

1шт.
