Запчасти Case IH ATX700 (02.110.1) - CYLINDER, TOOLBAR (07) - HYDRAULICS

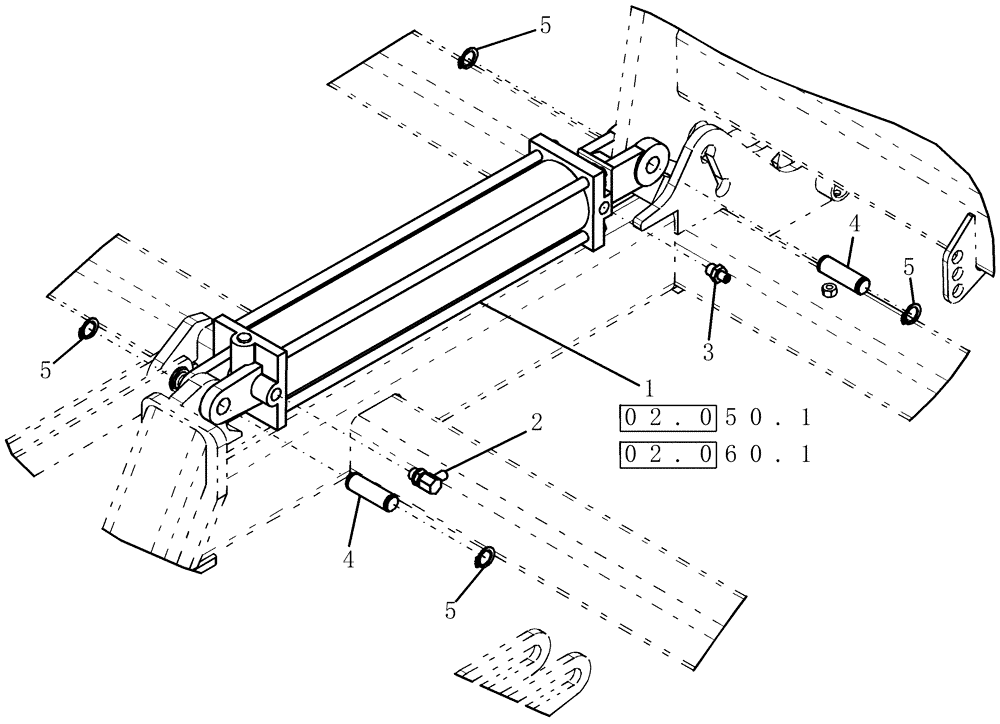

Схема запчастей Case IH ATX700 - (02.110.1) - CYLINDER, TOOLBAR (07) - HYDRAULICS
4
5
1
4
5
5
3
2
5
02.060.1
02.050.1

Артикул

Название

Примечание

Количество

1

9652

HYDRAULIC CYLINDER,Double Acting, 44.5mm Rod, 610mm Stroke

4" x 24" Monarch 3000 psi no pins 1 3/4" rod 1/2" fb ports inline

1шт.

70' Only

1шт.

Refer to 02.050.1

1шт.

1

9652R

REMAN-HYD CYLINDER

ATX700 AIR HOE DRILL BSN Y9S003001, 70' Only, 4" x 24" Monarch 3000 psi no pins 1 3/4" rod 1/2" fb ports inline (12/06-9/08)

1шт.

1

9652C

CORE-HYD CYLINDER

Return Number

1шт.

1

87505357

HYDRAULIC CYLINDER,Double Acting, 38.1mm Rod, 609.6mm Stroke

3 1/2" x 24" 3000 psi no pins

1шт.

60' Only

1шт.

Refer to 02.060.1

1шт.

2

87329788

90 ELBOW,90 Degree, 9/16"-18, 37 Degree x 3/4"-16, O-Ring

1шт.

3

128817

HYD CONNECTOR,3/4" - 16 ORB x 9/16" - 18 JIC

1шт.

4

3326

PIN

cylinder 1" x 2 7/8" ul hardened with snap rings

2шт.

5

87019495

SNAP RING,#98, Ext

4шт.

Выбрано товаров: 12
