Запчасти Case IH ATX700 (02.090.1) - CYLINDER, LOCKING CASTER (07) - HYDRAULICS

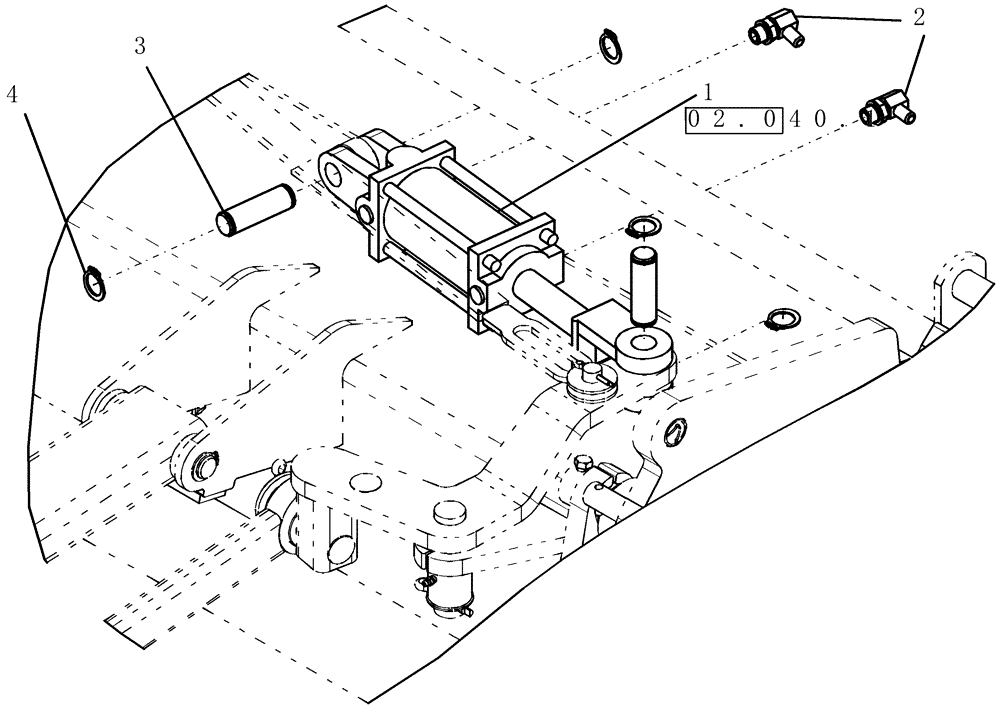

Схема запчастей Case IH ATX700 - (02.090.1) - CYLINDER, LOCKING CASTER (07) - HYDRAULICS
02.040.1
4
3
2
1

Артикул

Название

Примечание

Количество

1

87419786

HYDRAULIC CYLINDER,Double Acting, 31.75mm Rod, 101.6mm Stroke

3" x 4" 3000 psi no pins

1шт.

Refer to 02.040.1

1шт.

2

87329788

90 ELBOW,90 Degree, 9/16"-18, 37 Degree x 3/4"-16, O-Ring

2шт.

3

3326

PIN

cylinder 1" x 2 7/8" ul hardened with snap rings

2шт.

4

87019495

SNAP RING,#98, Ext

4шт.

Выбрано товаров: 5
