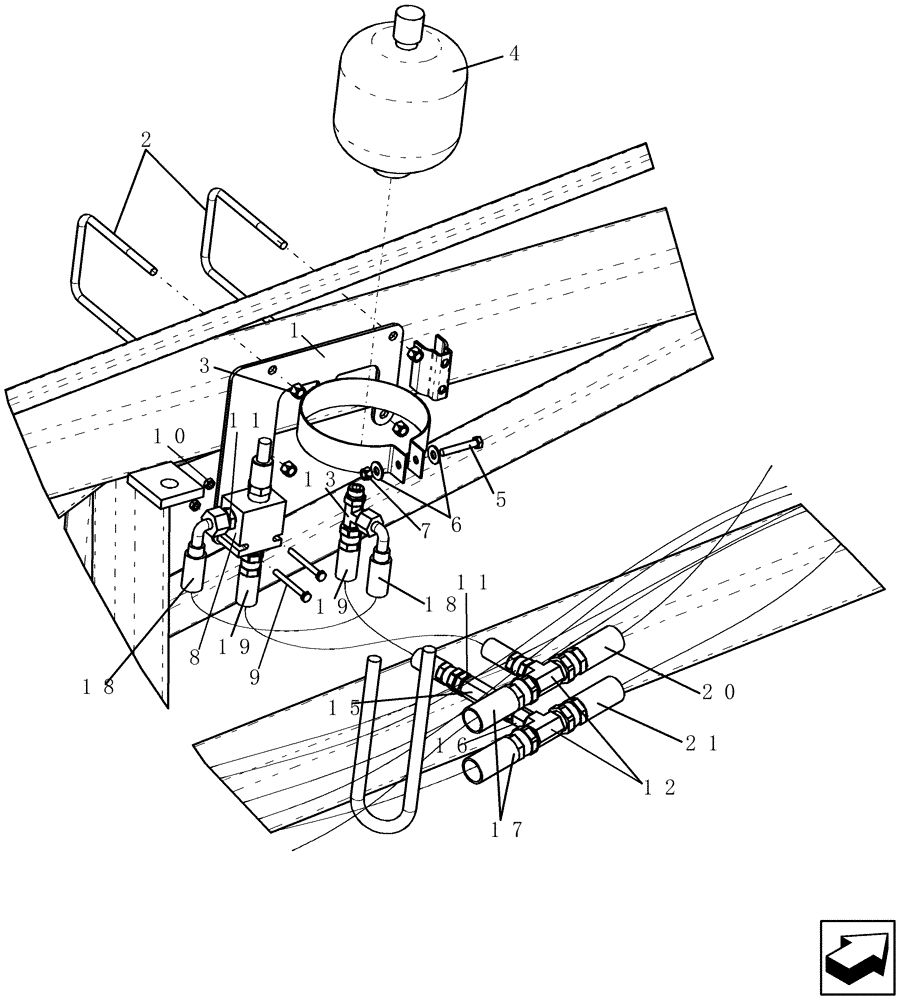

Запчасти Case IH ATX700 (02.001.1) - HYDRAULIC SYSTEM ACCUMULATOR INSTALLATION (07) - HYDRAULICS

1

87708074

MOUNTING PARTS

hydraulic accumulator

1шт.

2

425253A1

U-BOLT

us 3/8"-16 4.06 wide x 5.68 deep, G5

2шт.

3

88902

NUT,3/8"-16

4шт.

4

87705954

ACCUMULATOR

1.4L

1шт.

5

9636711

BOLT,Hex, 5/16 - 18" x 2", Gr 5

1шт.

6

80664

WASHER,0.38" ID x 0.88" OD x 0.08" Thk

2шт.

7

280736

NUT,5/16"-18, GC

1шт.

8

87699198

VALVE PRESSURE RELIE

2200 psi

1шт.

9

87845

BOLT,Hex, 1/4" - 20 x 2 1/2", Gr 5

2шт.

10

280129

NUT,1/4"-20

2шт.

11

128818

UNION,3/4" - 16 ORB x 3/4" - 16 JIC

4шт.

12

266315

TEE,37 Degree, 1 1/16"-12 x 3/4"-16, Br

2шт.

13

265808

TEE,3/4" - 16 JIC x 3/4" - 16 JIC x 3/4" - 16 ORB

1шт.

15

22357

CHECK VALVE

1/2"fb 1/2"fb

1шт.

16

412756A1

FITTING

1/2" mb 1/2" fjx

1шт.

17

87707514

HYDRAULIC HOSE,19.00 mm ID x mm, SAE 100R17 Class 25

2шт.

18

87707515

HYDRAULIC HOSE

1/2" x 28" fl

1шт.

19

87700096

HYDRAULIC HOSE,12.50 mm ID x mm, SAE 100R17 Class 25

2шт.

20

51200884

HYDRAULIC HOSE,0.75" ID x 36.00", SAE J517, SAE J516, SAE 100R17, ASTM B633 Class 2 Type 2

3/4" x 36" fl, 3/4" fjic x 3/4" fjic

1шт.

21

87700090

HYDRAULIC HOSE,19.00 mm ID x mm, SAE 100R17 Class 25

1шт.
